What is a 2-way Pallet Shuttle System?

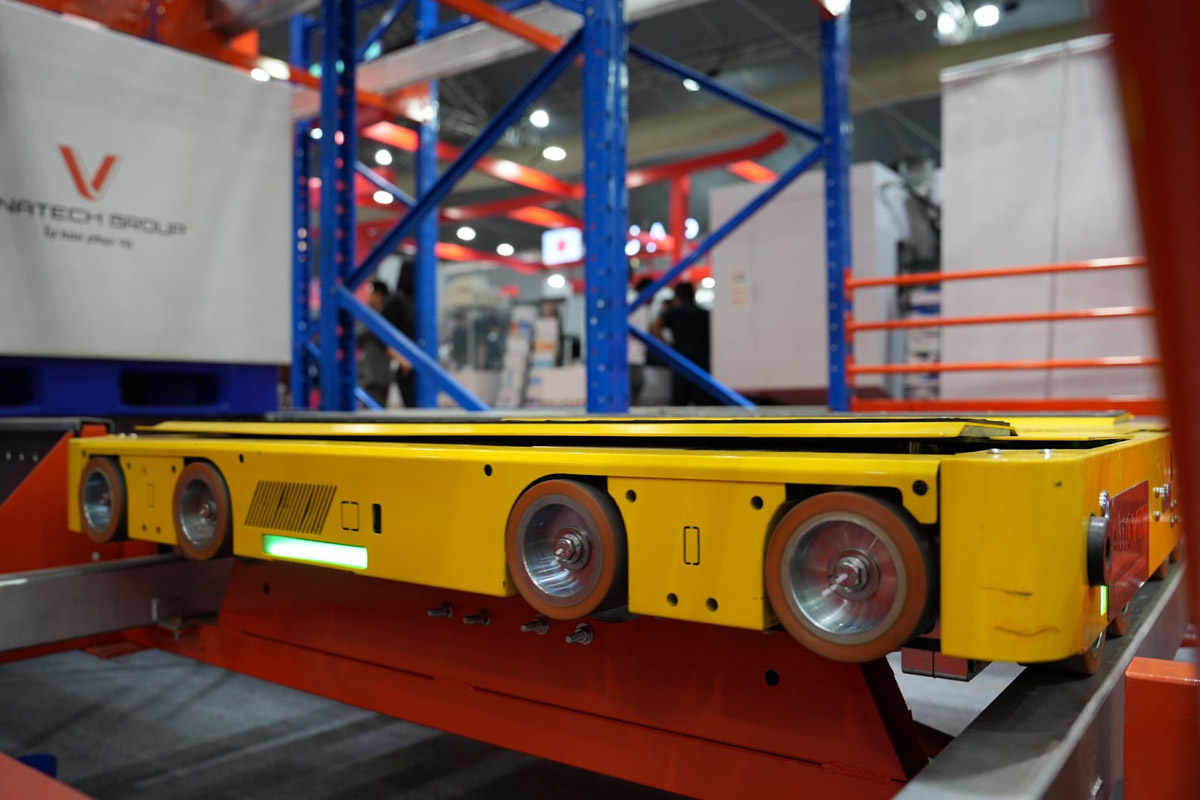

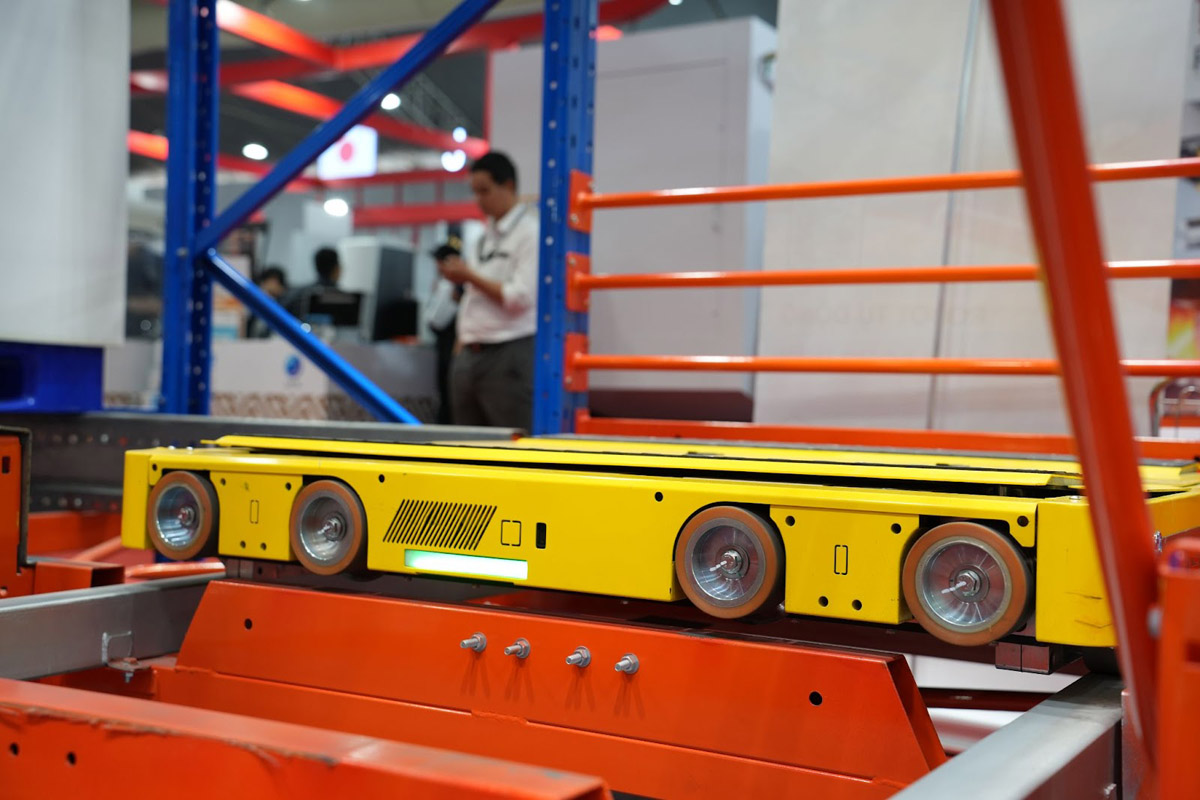

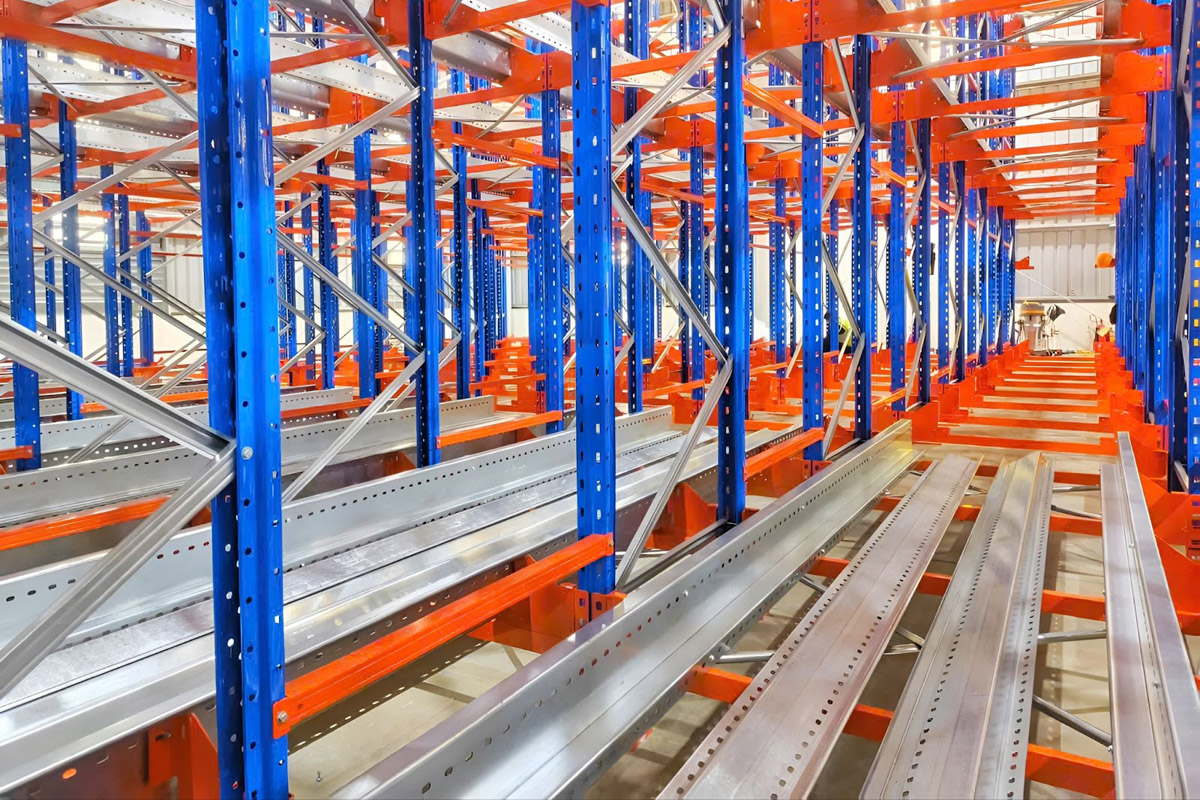

A 2-way pallet shuttle system is a semi-automated warehouse storage solution that uses a battery-powered mobile shuttle robot to transport pallets in two directions along guided rails within the racking structure.
Unlike traditional racking systems that require forklifts to drive deep into storage lanes, the 2-way shuttle operates via a remotely controlled shuttle that moves pallets horizontally into storage positions. This eliminates direct forklift interaction with the racking structure, significantly reducing the risk of rack and product damage.
Key Technical Specifications:
- Load capacity: 500-1,500 kg per pallet
- Standard pallet size: 1200 mm (W) × 1000 mm / 1200 mm (D)
- Travel speed: 0.8 m/s (loaded) | 1.2 m/s (unloaded)
- Maximum lane depth: Up to 40 meters
- Storage utilization: Up to 80% fill rate
This technology bridges the gap between fully manual operations and fully automated AS/RS systems, offering a cost-effective automation solution for businesses seeking to improve warehouse efficiency without heavy capital investment.
Read more:
How Does a 2-way Pallet Shuttle System Work?
The 2-way pallet shuttle system operates through a series of automated and semi-automated processes controlled via wireless remote commands. The workflow consists of four main stages: system initialization, pallet dimension checking, transport execution, and pallet positioning.
System Start-Up and Mode Selection
The operator starts the shuttle by pressing the START button on the shuttle unit and selecting the operating mode. Available configurations include:
- LIFO mode: Single entry/exit operation where the last pallet in is the first pallet out, ideal for non-perishable goods
- FIFO mode: Dual entry/exit operation ensuring first-in, first-out pallet flow, critical for managing perishable or date-sensitive products
Inbound and Outbound Operations
The forklift operator places the pallet at the designated entry position. The pallet must be positioned at least 150 mm away from the stopper to ensure accurate system detection and prevent operational errors.
Once the command is received, the shuttle automatically measures pallet dimensions using integrated sensors.
- If the pallet dimensions are within the allowable range, the operation continues.
- If the pallet is oversized, the system stops and displays a warning for operator intervention.
The 2-way shuttle then lifts the pallet using a 650W motorized lifting mechanism, travels along the rails to the pre-calculated storage position, and lowers the pallet into place.
Remote Control Technology
The remote controller uses RF signals to transmit commands to the shuttle, with an operating range of up to 100 meters in open environments and approximately 70 meters in areas with obstacles.
An integrated safety lock mechanism prevents conflicting commands from being executed simultaneously. For example, the 2-way shuttle cannot move forward and backward, or lift and lower, at the same time. This ensures stable operation and enhanced user safety.
Battery Management Protocol:
- 15% battery level: Manual mode only; automatic operations disabled
- 10% battery level: System shutdown; battery replacement required
- Charging cycle: Fully charged in 3.5 hours
- Operating time: 8 hours (ambient warehouse conditions) and 6 hours (cold storage from -30°C to 40°C)
- Battery lifecycle: Up to 1,000 charge/discharge cycles
This intelligent operating process reduces forklift travel time by 60-70% compared to traditional drive-in racking, minimizes product damage caused by forklift collisions, and allows a single operator to manage high-density storage zones efficiently.
Key Benefits of a 2-way Pallet Shuttle System
With a high level of automation and flexible operation, the 2-way pallet shuttle system effectively addresses challenges related to storage density, inbound/outbound speed, and overall warehouse operating costs.
Improved Operational Efficiency and Throughput
With travel speeds of 0.8 m/s (loaded) and 1.2 m/s (unloaded), a 2-way shuttle can complete a full 40-meter storage lane cycle in approximately 50-60 seconds, which is 2–3 times faster than manual forklift operations. This translates to 30-40 pallets per hour per shuttle, compared to 15-20 pallets per hour using traditional methods.
Advanced continuous outbound functions enable uninterrupted workflows during peak periods, increasing hourly productivity by up to 35% compared to standard single-cycle operations.
Optimized Space Utilization and Storage Density
By eliminating the need for wide forklift aisles between storage rows, the 2-way shuttle system converts previously wasted aisle space into usable storage capacity. The system operates efficiently at heights of up to 18 meters (20-30 pallet levels), maximizing cubic storage volume without compromising accessibility or safety.
Flexible Inventory Management
The ability to switch between LIFO and FIFO modes allows businesses to tailor storage strategies based on product characteristics. FIFO mode prevents inventory obsolescence for perishable goods, while LIFO mode simplifies handling for products without expiration constraints.
This flexibility enables companies to respond quickly to changing market demand while optimizing inventory management efficiency, without modifying warehouse layouts or investing in additional infrastructure.
Technical Specifications of 2-Way Pallet Shuttle Systems
The 2-way shuttle racking system is engineered with standardized technical specifications to ensure stable operation, high positioning accuracy, and safe performance in demanding industrial warehouse environments.
| Pallet size |
1000 x 1200 mm / 1200 x 1000 mm
|
| Load capacity/Pallet | 500 – 1500 kg |
| Racking Depth |
Up to 40m (20-30 pallets deep)
|
| Racking Height |
Up to 20-30 levels (depends on forklift)
|
| Shuttle Speed |
No load: 1.2 m/s With load: 0.8 m/s
|
| Motor Power | 24V 650W |
| Battery Charging Time | 3.5 hours (full charge) |
| Continuous Operating Time |
8 hours (ambient temperature)
6 hours (cold storage conditions) |
| Operating Temperature | -30°C ~ +40°C |
These technical specifications demonstrate that the 2-way shuttle system delivers industrial-grade performance suitable for warehouses handling 100-500+ pallets per day. The solution is particularly effective for high-density storage, cold chain logistics, and operations requiring flexible FIFO/LIFO inventory management.
