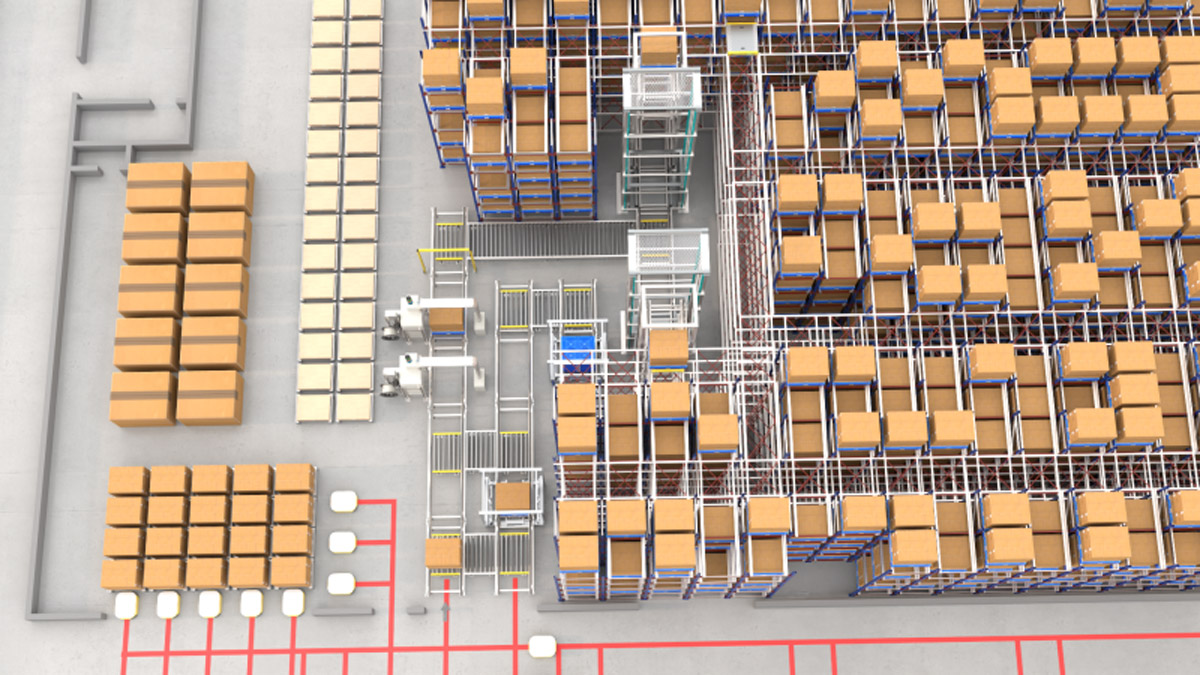

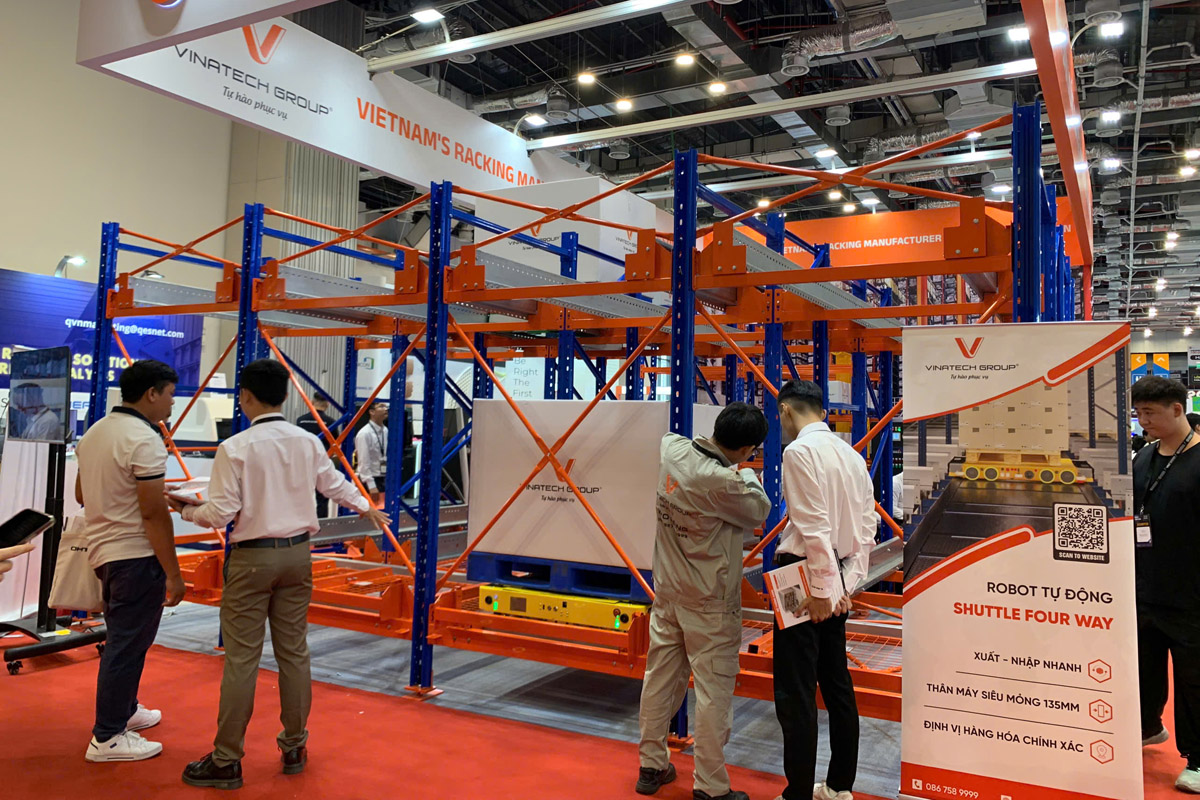

What Is a 4-Way Shuttle System?
A 4-Way pallet shuttle system is an automated pallet storage solution that uses autonomous shuttle robots to move pallets in four directions (forward, backward, left, and right) along integrated rail systems within a high-density racking structure.
Unlike conventional 2-way shuttle systems that operate within a single lane, a 4 Way shuttle can travel across multiple lanes and rack levels, completely eliminating the need for forklifts to enter deep storage channels.
The system consists of three core components:
- A dedicated racking structure with integrated rail systems

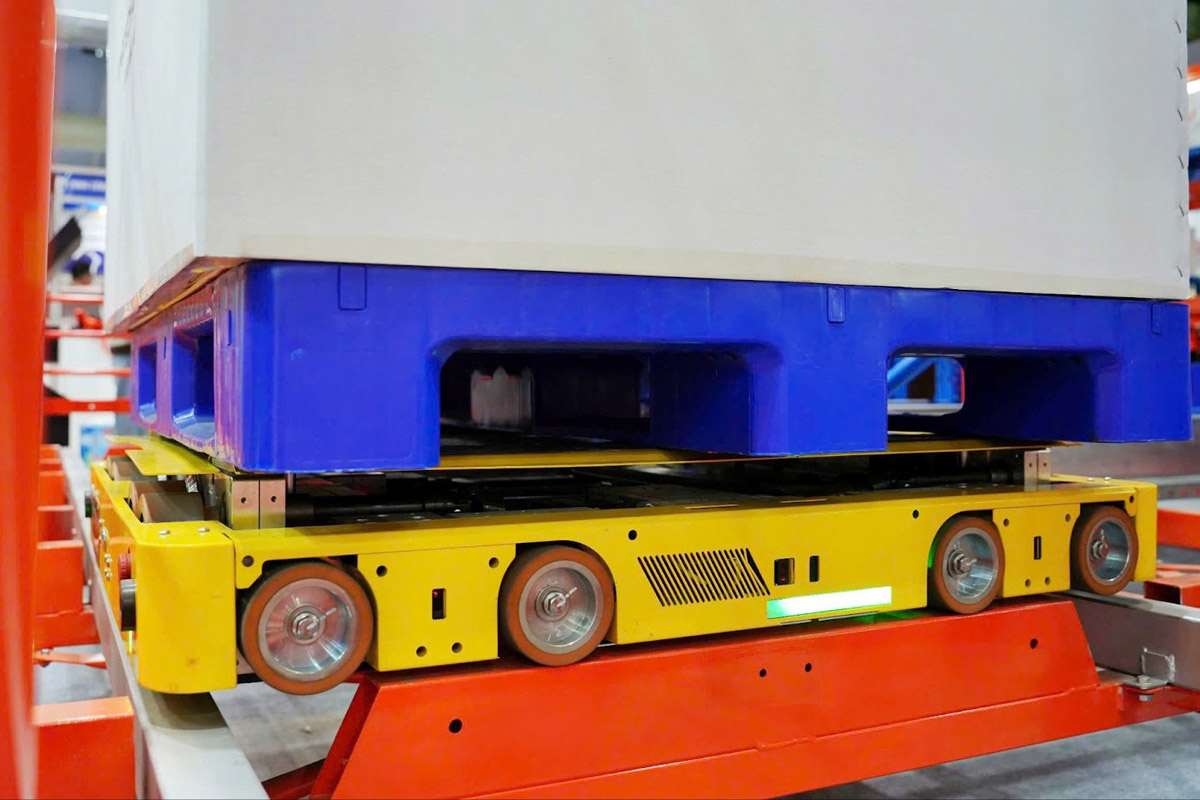

- Autonomous 4-Way shuttle robots equipped with sensors and lifting mechanisms
- Intelligent control software that orchestrates shuttle movements and manages inventory
This configuration enables warehouses to achieve up to 80% space utilization, compared to only 50-60% with traditional selective racking systems.
Read more: ASRS System – Automated Storage and Retrieval Solutions
How Does a 4 Way Shuttle Operate?
The 4-Way shuttle operates through a fully automated workflow consisting of four coordinated stages: pallet intake, automated transportation, precise placement, and pallet retrieval.
Multi-Directional Movement
Pallets are delivered by forklifts to designated entry points at each rack level. Powered by a 650W motor, the 4 Way shuttle reaches speeds of up to 1.2 m/s when unloaded and 0.8 m/s when carrying a load, ensuring fast and stable performance in high-throughput warehouse environments.
Unlike 2-way shuttle systems confined to a single lane, the 4-Way shuttle can move horizontally, vertically, change lanes, and switch rack levels via transfer cars or lifting mechanisms. This capability enables seamless connectivity across aisles and rack levels, optimizing overall warehouse material flow.
Precise Positioning & High-Density Storage

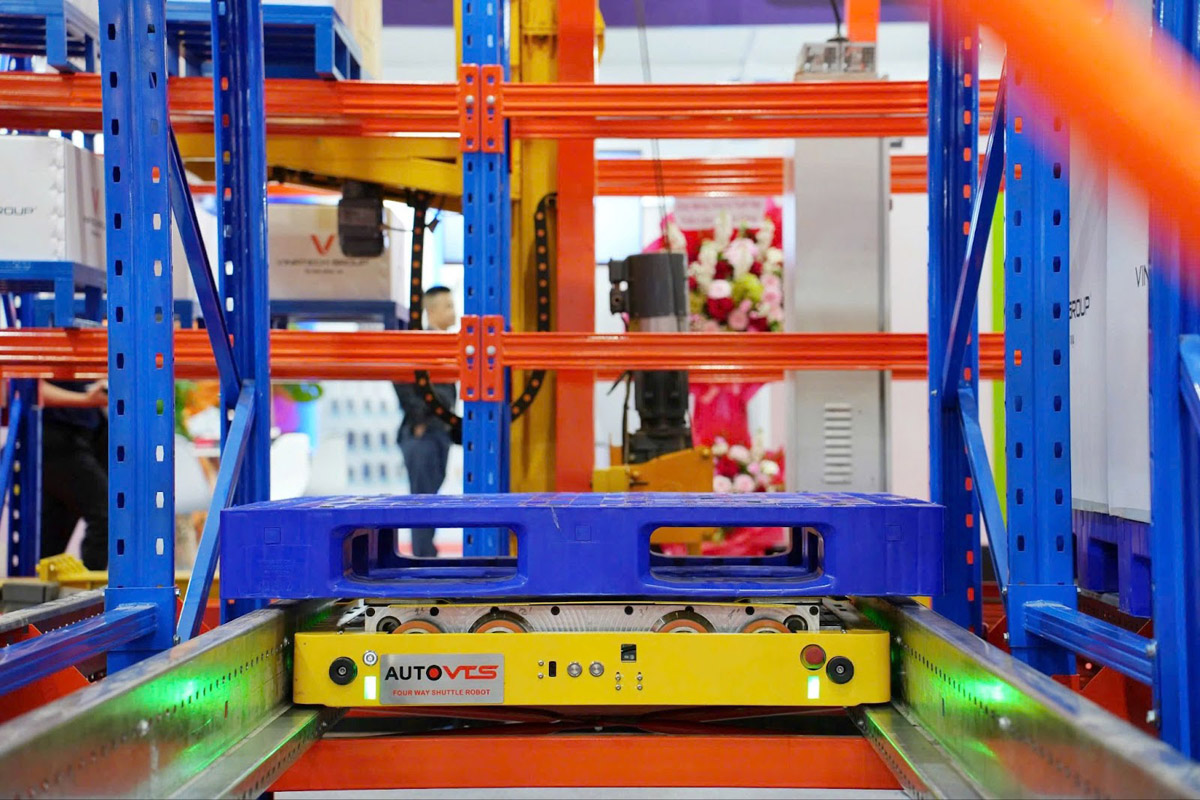

As the shuttle approaches the assigned storage location, it automatically decelerates and uses infrared sensors to verify available space. The integrated lifting mechanism then places the pallet onto the support rails with positioning accuracy of ±5 mm, ensuring load safety and long-term system stability.
The solution supports storage channels with depths of up to 40 meters, accommodating 20-30 pallets per lane, depending on rack height and warehouse operating requirements.
Smart and Continuous Inbound-Outbound Operations
During inbound and outbound processes, the WMS automatically issues commands to the 4-Way pallet shuttle to retrieve specific pallets based on FIFO, LIFO, or order-priority logic. All operations are synchronized end-to-end, minimizing manual intervention while ensuring high accuracy in material handling.
After completing up to 8 hours of continuous operation (or 6 hours in cold storage environments), the shuttle rackingsystem automatically returns to the charging station based on intelligent energy-management algorithms.
Key Benefits of a 4-Way Pallet Shuttle Solution
From flexible movement and precise positioning to advanced automation in inbound and outbound operations, the 4 Way shuttle racking solution delivers significant advantages in space optimization, operational efficiency, and cost reduction.
Space Optimization: High Storage Density
Thanks to deep-lane storage design and multi-directional movement, the 4-Way shuttle system significantly reduces aisle requirements compared to conventional racking. Warehouse space is efficiently utilized both horizontally and vertically, making it ideal for facilities with limited footprints, high land costs, or large pallet volumes.
Additionally, the system supports storage lanes up to 40 meters deep, with 20-30 pallet positions per lane, maximizing cubic space utilization and substantially increasing total warehouse capacity.
Operational Speed: Increased Throughput
The 4-Way shuttle operates continuously, handling 30-40 pallet cycles per hour, compared to 12-15 cycles per hour with manual forklift operations. For high-speed environments such as e-commerce fulfillment and cold-chain distribution, this translates into:
- Reduced order cycle times
- The ability to process up to twice the order volume using existing infrastructure
- Improved service levels with on-time delivery rates up to 99.5%
Read more: Mobile Racking System
Inventory Accuracy and Real-Time Control
Through direct integration with the WMS, the 4 Way shuttle solution enables real-time inventory visibility, eliminating storage location errors, misplaced pallets, and stock discrepancies.
As a result, warehouses can significantly reduce stocktaking frequency from monthly to quarterly, saving time and auditing resources. Improved FIFO/FEFO rotation lowers the risk of obsolete inventory by 20-30%, while minimizing write-offs and annual loss costs, particularly critical for food and pharmaceutical industries.

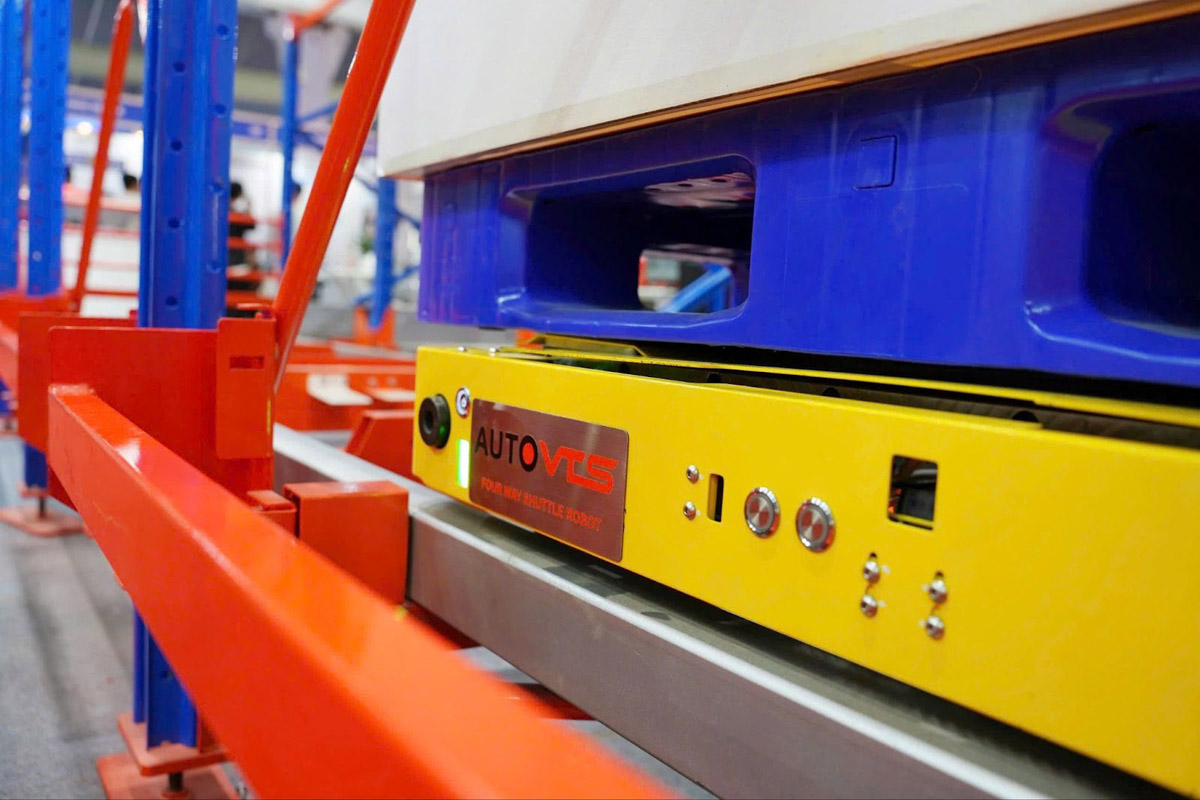

Technical Specifications – Vinatech Australia 4-Way Pallet Shuttle
To deliver measurable improvements in space utilization, operational efficiency, and inventory accuracy, the 4-Way pallet shuttle is engineered with robust technical specifications and a tightly integrated hardware-software architecture.
| Loads | 500-1,500 Kg Per Pallet |
| Velocity | Unloaded: Up To 1.5 M/S
Loaded: Up To 1.2 M/S |
| Lifting Motor Power | 750w |
| Travelling Motor Power | 1500w |
| Battery Capacity | 42ah |
| Battery Voltage | 48v |
| Charging Time | 3h |
| Operation Time | Ambient Temperature Environment: 7-8 Hours
Cold Storage Environment: 5-6 Hours (Based On A Maximum Load Of 1,500 Kg) |
| Heat Resistance | 5-45 |
| Lifting Travel | 45mm |

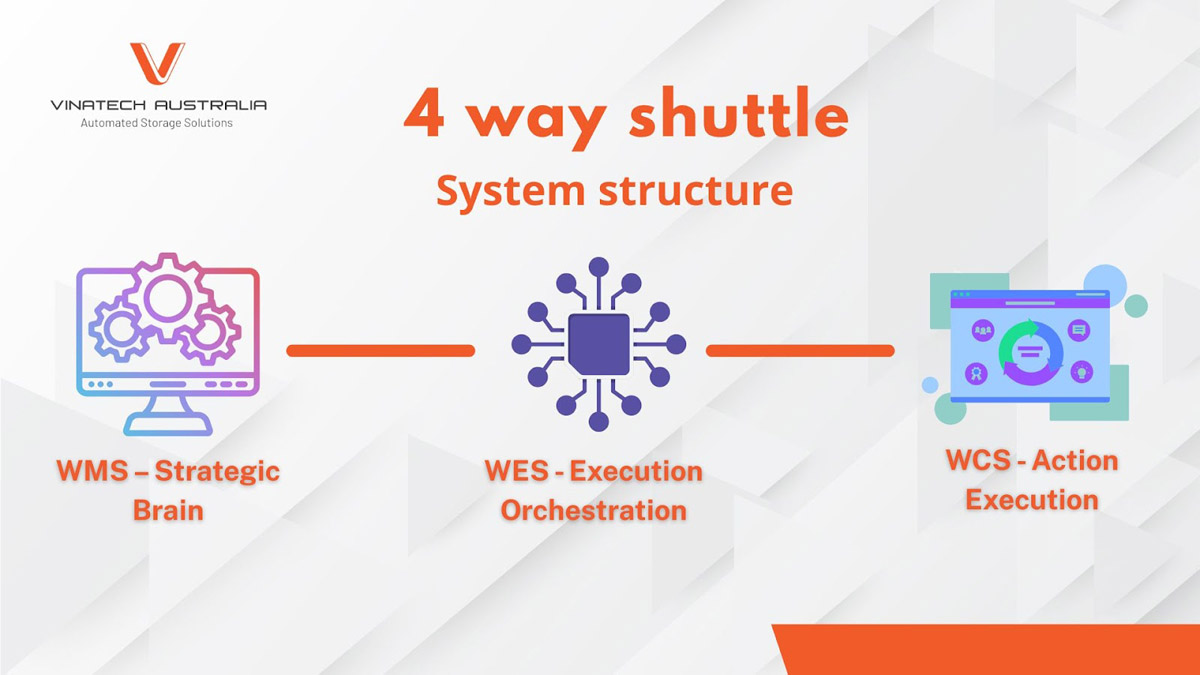

4-Way Pallet Shuttle Control & Software Architecture
The control and software architecture of the 4 Way shuttle system is designed using a layered model, in which each layer performs a distinct function, from inventory management and operational flow orchestration to direct equipment control. This architecture ensures synchronized system performance, operational stability, and long-term scalability for automated warehouse environments.
WMS (Warehouse Management System)
The WMS serves as the central management layer for all warehouse operations, including inventory tracking, storage location management, and inbound–outbound workflows. Acting as a digital map of the warehouse, the system enables precise pallet positioning, optimal picking path selection, and reduced travel time during daily operations.
WMS supports omnichannel order processing across websites, e-commerce platforms, and retail networks, while automatically consolidating and prioritizing orders based on business rules. Inventory data is updated in real time and tightly synchronized with ERP and OMS systems, delivering measurable operational improvements, including:
- Up to 10% faster picking and retrieval speeds
- Approximately 80% reduction in stocktaking volume and frequency
- Up to 90% fewer errors in inbound, outbound, and inventory management processes
- Up to 90% improvement in forecasting accuracy and operational planning
WES (Warehouse Execution System)
The WES functions as the central execution and orchestration layer of the warehouse, bridging high-level planning from the WMS with real-time shop-floor operations. The system receives objectives and strategies from the WMS and translates them into detailed execution commands for individual zones, equipment, and resources within the warehouse.
From an operational performance perspective, deploying WES delivers significant benefits, including:
- Up to 1,200% increase in task processing speed and warehouse throughput
- Approximately 20% improvement in execution accuracy through intelligent scheduling and real-time control
- Up to 50% reduction in labor and operating costs driven by automated task allocation and optimized resource utilization
WCS (Warehouse Control System)
The WCS acts as the direct equipment control layer within the warehouse automation architecture, functioning as an intelligent control interface for conveyors, robots, cranes, shuttles, and other electromechanical systems.
The system receives execution commands from the WES, converts them into device-level control signals, and continuously monitors operational status in real time. This ensures that all equipment actions are executed accurately, synchronously, and reliably, maintaining stable and safe operations even in high-intensity automated warehouse environments.
