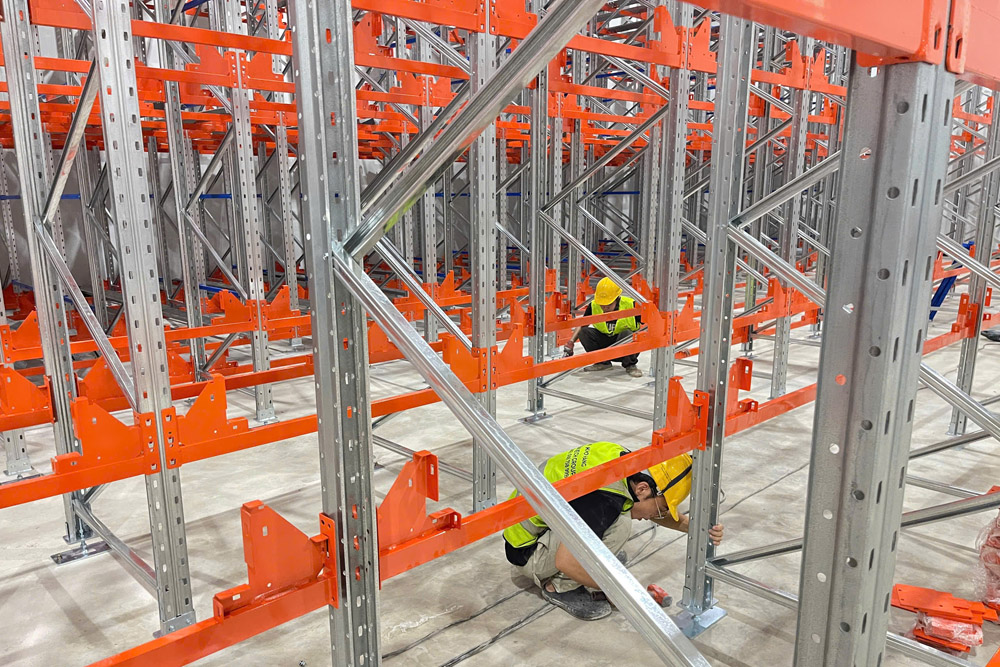

Vinatech Australia provides end-to-end warehouse racking installation services for new warehouses, warehouse expansions and existing facility upgrades. Our service covers warehouse assessment, layout and engineering design, racking manufacturing and supply, professional installation, inspection and after-sales support.

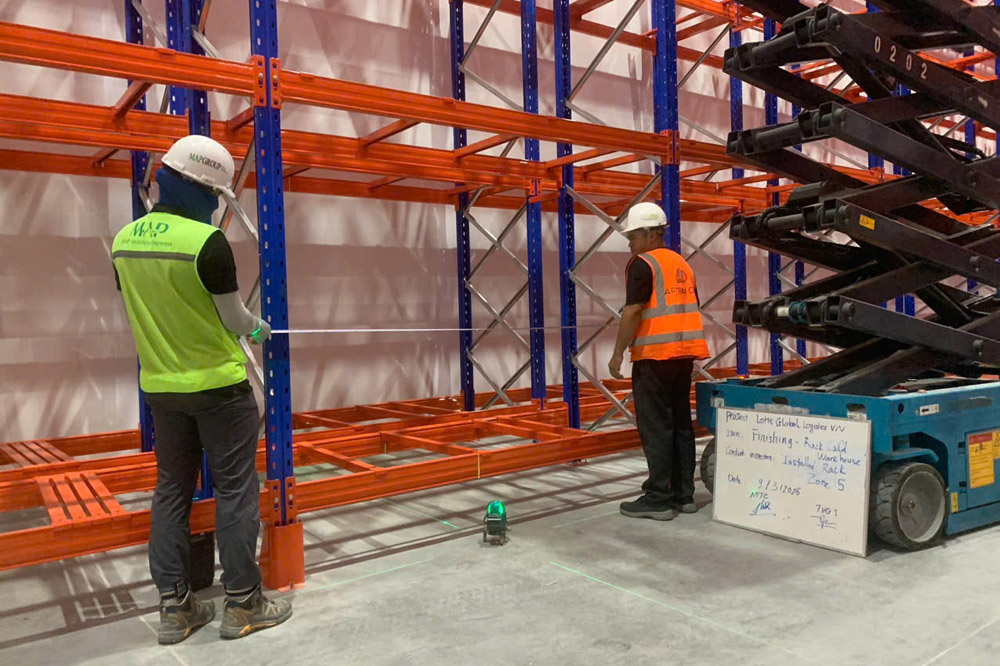

Professional warehouse racking installation

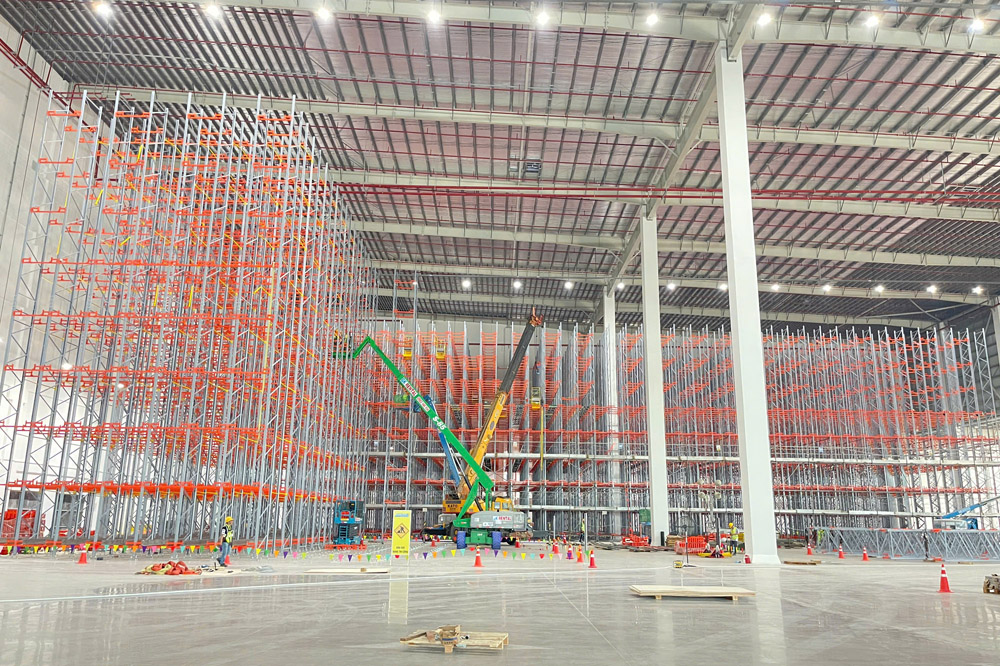

A well-planned installation process ensures that the completed racking system aligns with the original engineering design while supporting efficient pallet movement, picking operations and safe traffic flow throughout the warehouse.
For businesses investing in a new storage system, racking installation should therefore be considered alongside warehouse layout design, pallet racking selection and future capacity planning, rather than being treated simply as the final stage of the project.
Warehouse Installation for New Warehouses
A new warehouse provides the ideal opportunity to design a storage system around operational requirements from the outset.
Before installation begins, Vinatech assesses key factors such as:
- Warehouse dimensions and usable clear height
- Floor conditions and concrete slab requirements
- Building columns and structural obstructions
- Loading and unloading areas and access points
- Fire protection systems and building services
- Pallet dimensions and unit loads
- SKU volumes and inventory profiles
- Current and future storage capacity requirements
The racking layout can then be designed around the actual operational needs of the business.
For example, warehouses requiring direct access to a large number of SKUs may be better suited to Selective Pallet Racking, while businesses prioritising higher storage density may consider Double Deep, Drive-In, Push Back, Pallet Flow or Shuttle Racking.

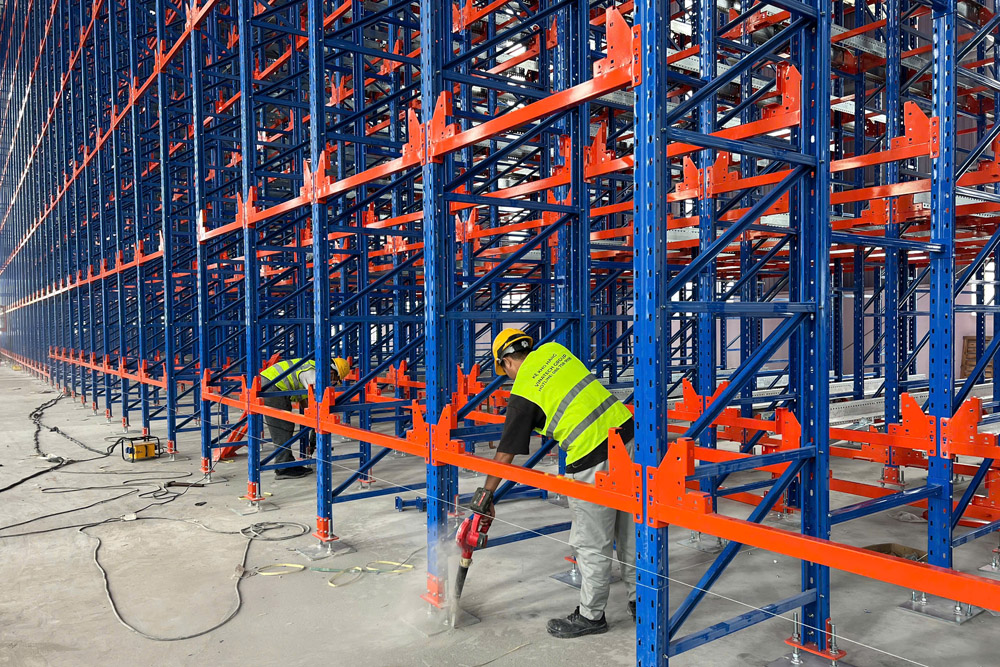

Warehouse Expansions
Business growth does not always mean moving into a larger warehouse. In many cases, an existing facility can increase its storage capacity by extending the current racking system, adding new storage zones, reconfiguring aisles or introducing a higher-density storage solution.
Before expanding an existing warehouse racking system, Vinatech assesses:
- The current racking configuration
- Available warehouse space
- The condition of existing racking and new storage requirements
- Pallet specifications and load requirements
- Forklift access
- Opportunities for higher-density storage
- Compatibility between existing and new racking components
A warehouse expansion can also provide an opportunity to convert part of an existing facility from conventional pallet racking to a higher-density or semi-automated storage system.
Vinatech’s Warehouse Racking Installation Service in Australia
Vinatech Australia provides warehouse storage solutions ranging from conventional pallet racking and industrial shelving to automated storage systems.
Our services cover warehouse assessment, layout design, engineering, installation and after-sales support, providing businesses with an integrated approach to warehouse storage projects.

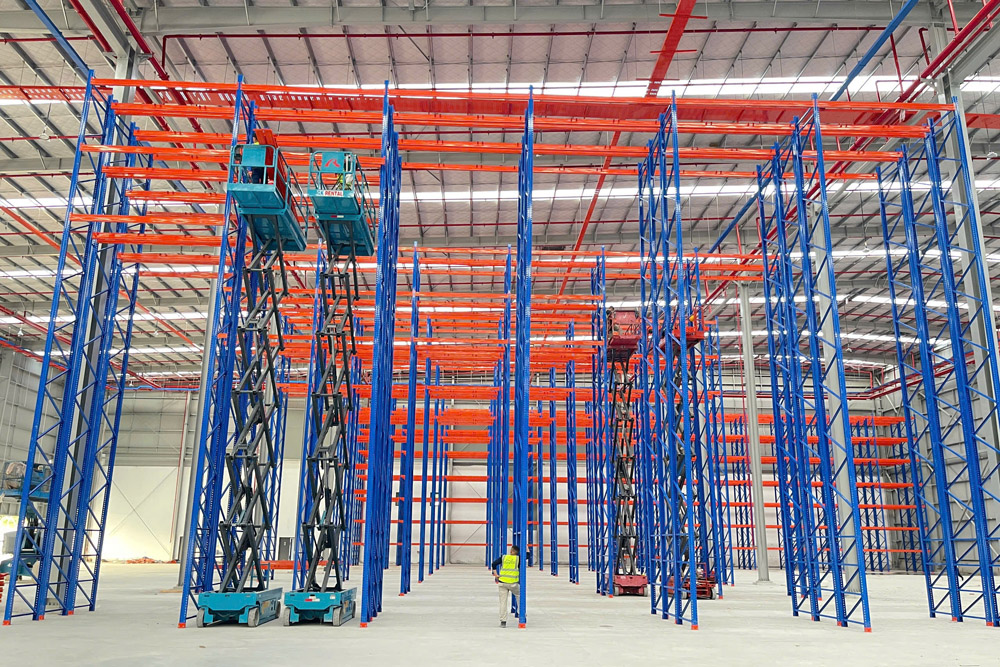

Pallet Racking Installation
Vinatech supplies and installs a wide range of pallet racking systems for different storage densities, inventory profiles and warehouse workflows:
- Selective Pallet Racking: Provides direct access to individual pallet positions and is ideal for warehouses managing a large and diverse range of SKUs.
- Double Deep Pallet Racking: Stores pallets two positions deep, increasing storage density while maintaining a relatively high level of operational flexibility.
- Drive-In Pallet Racking: A high-density storage solution for larger quantities of similar products, reducing the amount of warehouse floor space required for conventional aisles.
- Push Back Pallet Racking: Allows multiple pallets to be stored in depth using inclined rails and carts, making it suitable for LIFO inventory management.
- Pallet Flow Racking: Uses gravity to move pallets through the storage lanes, supporting FIFO inventory rotation and high-throughput operations.
- VNA Racking: Very Narrow Aisle racking significantly reduces aisle space while maintaining pallet accessibility through specialised materials handling equipment.
- Warehouse Mezzanine Floor: Makes use of available warehouse height to create additional storage levels or operational floor space where building conditions and applications allow.
Each installation should follow an approved project-specific configuration rather than applying the same standard racking specification to every warehouse.

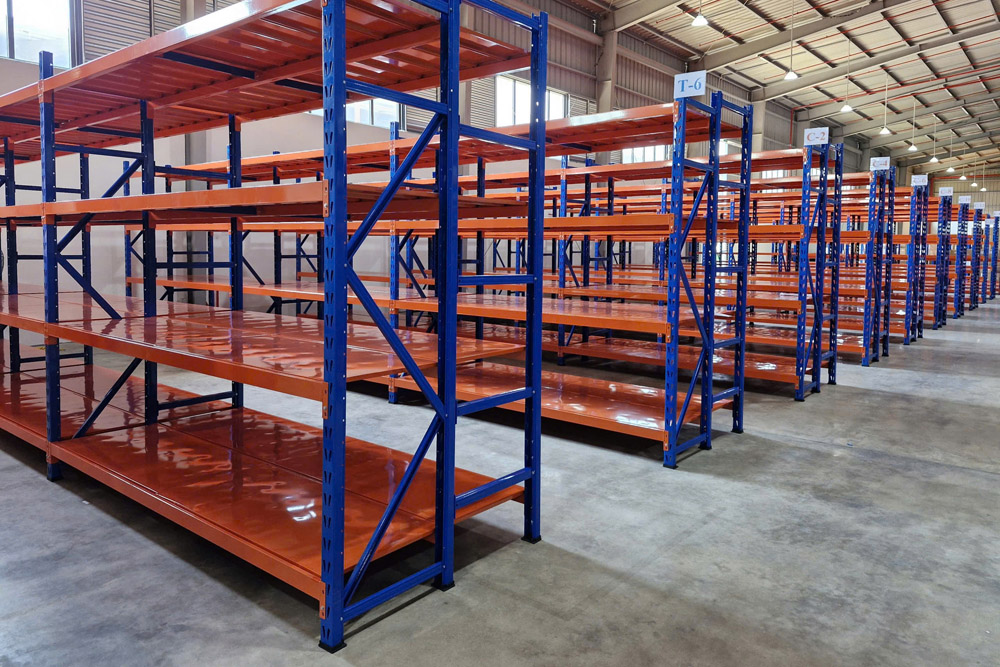

Industrial Shelving Installation
For cartons, spare parts, tools, components and other non-palletised goods, Vinatech provides a range of industrial shelving solutions, including:
- Heavy Duty Shelving: Suitable for larger or heavier manually handled products.
- Longspan Shelving: A flexible solution for cartons, boxes and medium-to-heavy products requiring wider shelf spans.
- Slotted Angle Shelving: An adjustable shelving system suitable for smaller components, spare parts and general warehouse storage.
Industrial shelving can be installed as a standalone system or integrated with pallet racking to create a mixed storage environment incorporating reserve pallets, carton storage and manual picking areas.

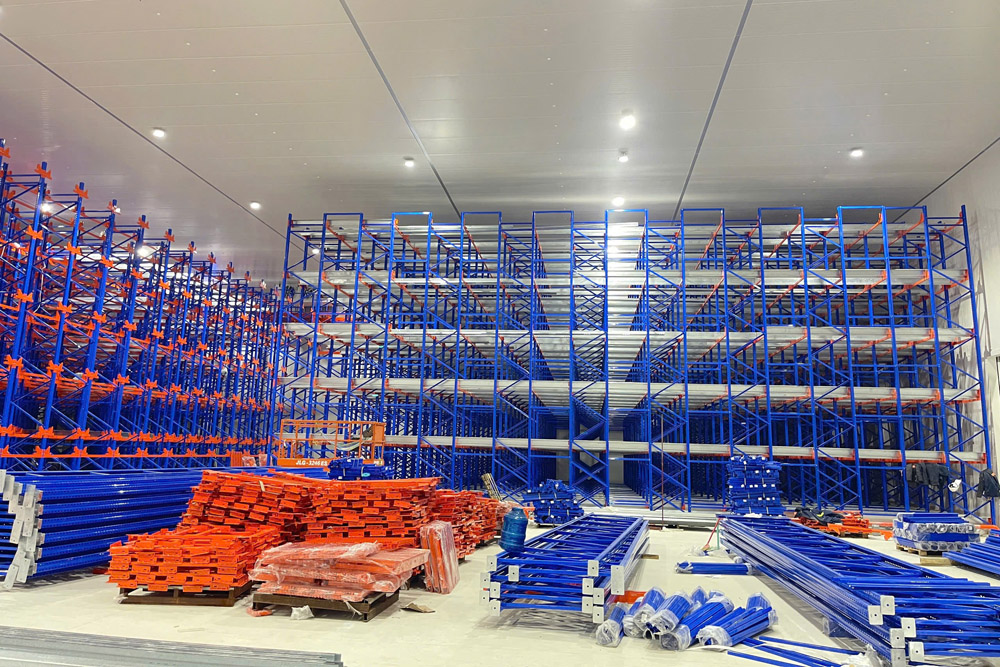

Automated Warehouse & Shuttle System Installation
For facilities requiring greater storage density, higher throughput or increased automation, Vinatech provides solutions including:
- Shuttle Racking Systems
- 2-Way Pallet Shuttle Systems
- 4-Way Pallet Shuttle Systems
- Mobile Racking Systems
- AS/RS Systems
Installing an automated warehouse system requires coordinated integration between the racking structure, mechanical equipment, control systems, warehouse processes and, where applicable, warehouse management or warehouse control software.

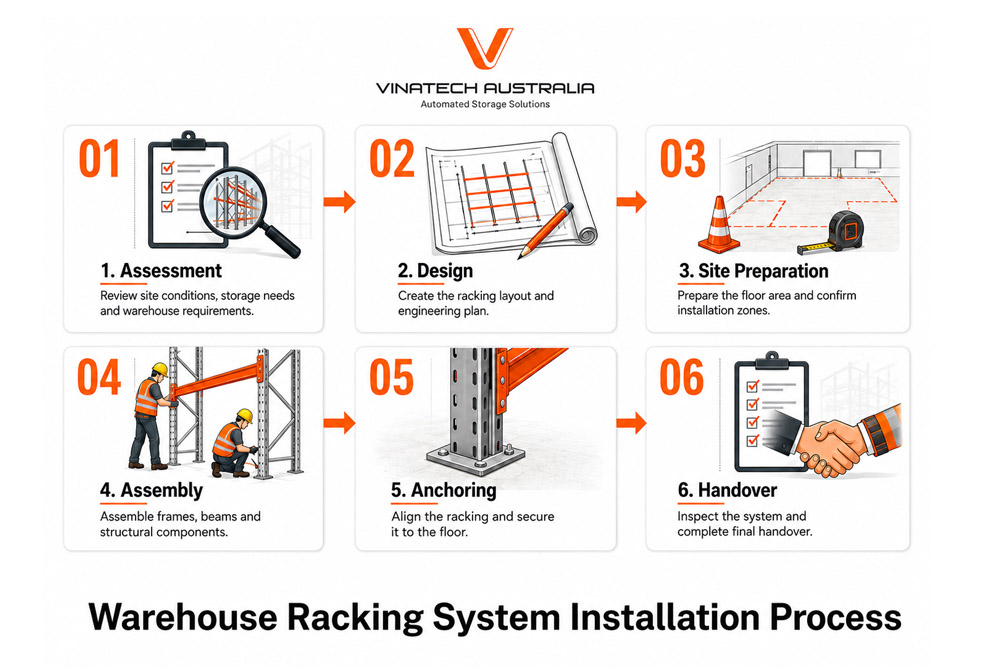

Our Warehouse Racking System Installation Process
A structured installation process helps minimise on-site issues and ensures that the completed racking system is installed in accordance with the approved warehouse design.
1. Warehouse Assessment
The project begins with an assessment of the warehouse and its operational requirements. The Vinatech team reviews available floor space, clear height, access points, pallet specifications, required storage capacity, forklift operations and existing warehouse infrastructure.
2. Layout & Engineering Design
Information collected during the warehouse assessment is used to develop the racking layout and engineering design. Key considerations include:
- Racking configuration: Racking type, bay dimensions, beam levels and pallet positioning.
- Warehouse access: Aisle widths, forklift operation and turning requirements.
- Storage requirements: Load capacity, pallet clearances, storage density and product flow.
- Safety & scalability: Safety zones, rack protection and future expansion requirements.
Vinatech Australia also provides 2D and 3D warehouse layout design, allowing customers to review the proposed configuration before installation begins.
3. Site Preparation
Before racking assembly begins, the installation area is prepared in accordance with the approved project plan. This may include confirming rack locations, clearing installation zones, organising access for installation equipment and reviewing relevant floor or structural conditions.
4. Racking Assembly
Upright frames, beams, bracing and other structural components are assembled according to the project configuration. Depending on the racking system, additional accessories may also be installed as required.

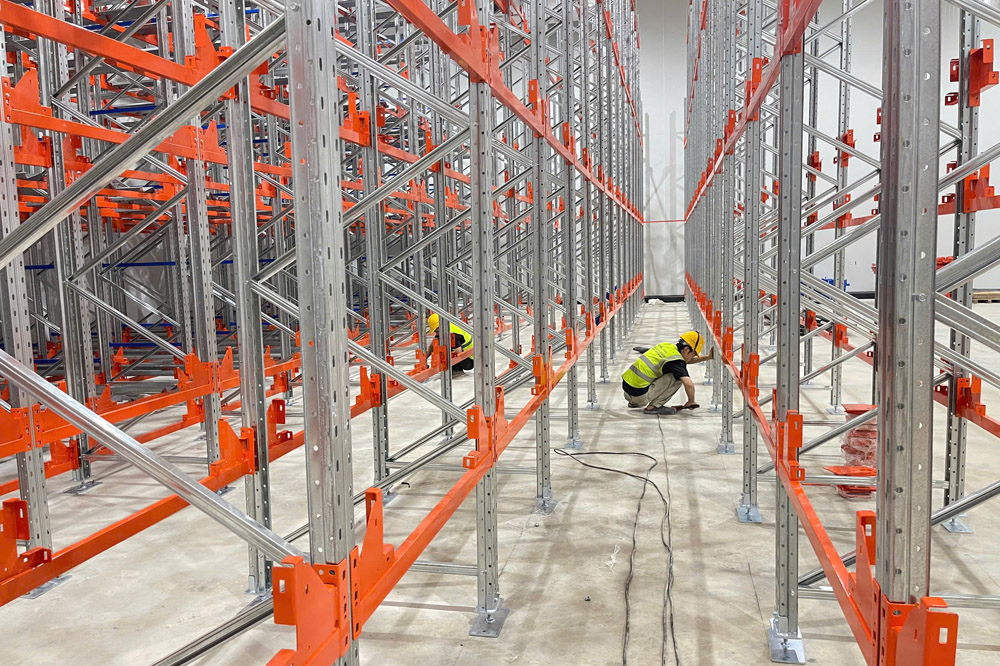

5. Anchoring & Alignment
Anchoring requirements should be determined based on the engineered design and actual site conditions rather than applying the same fixing arrangement to every warehouse. The installation team checks rack positioning, upright alignment, beam levels, row spacing and connection details before the system is placed into operation.
6. Inspection & Handover
Before the storage system becomes operational, the completed installation is inspected against the approved layout and project requirements. The handover inspection may include checking:
- Racking configuration
- Structural connections
- Anchoring
- Upright alignment
- Beam positioning
- Safety locks
- Rack protection
- Load signage
- Installed accessories
Relevant project documentation and operating information can then be provided to the customer as part of the handover process.
Why Choose Vinatech for Warehouse Racking Installation?
Warehouse racking is a long-term infrastructure investment. Businesses should therefore work with a supplier capable of supporting the entire project, from initial design and manufacturing through to installation and future warehouse modifications.
Experienced Installation Team
Vinatech’s service model covers the entire project process, from warehouse assessment and design through to installation and final handover. This integrated approach helps maintain consistency between the proposed warehouse layout and the racking system ultimately installed on site.
Custom Engineering & Layout Design
Every warehouse has different operating requirements and physical constraints. Rather than applying a standard configuration to every project, Vinatech develops customised warehouse layouts.
Rack height, beam configuration, aisle widths and storage system selection are determined based on actual pallet loads, warehouse dimensions, forklift equipment and inventory profiles.
Quality Manufacturing
Vinatech combines local customer support in Australia with the manufacturing capabilities of Vinatech Group, allowing racking systems to be manufactured according to project requirements and supplied as part of an integrated warehouse storage solution.
AS 4084:2023 Support
Vinatech Australia provides pallet racking solutions designed to support the requirements of AS 4084:2023.
As the application of the standard can vary depending on the storage system and individual project scope, relevant compliance requirements should be considered during the engineering stage rather than being treated simply as an installation checklist.
Factory-Direct Solutions
Vinatech operates a factory-direct model, connecting warehouse projects in Australia directly with Vinatech Group’s manufacturing capabilities.
Reducing unnecessary layers in the supply chain allows design requirements, manufacturing and project delivery to be coordinated as part of one integrated storage solution, rather than sourcing the racking structure and installation services independently.
After-Sales Support
Vinatech Australia supports customers beyond installation, with services covering product warranty and ongoing after-sales support. We recommend having a comprehensive racking safety inspection carried out by a suitably qualified professional or technician at least every six months.

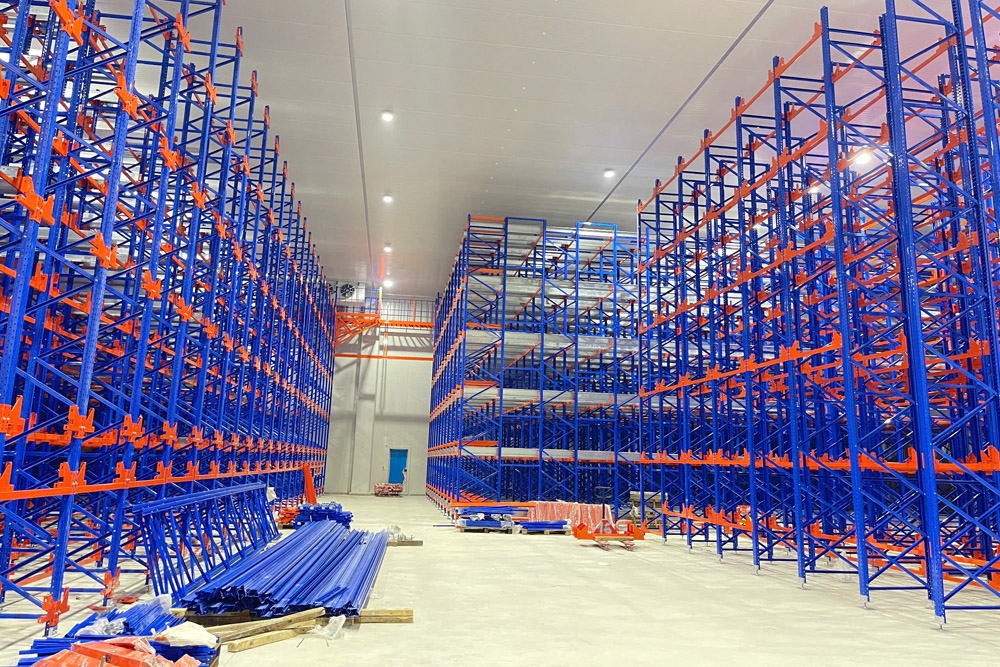

Warehouse Racking Installation for Different Industries
Warehouse racking requirements vary significantly between industries. Vinatech can develop storage solutions around different inventory profiles and operating environments, including:
- Logistics & 3PL: Flexible pallet storage for multiple customers, large SKU ranges and frequently changing inventory requirements.
- Manufacturing & Automotive: Storage for raw materials, production components, spare parts and finished goods.
- Retail & E-commerce: A combination of pallet reserve storage, carton storage and fast-moving picking areas.
- Food & Beverage: Storage systems designed around pallet movements, stock rotation requirements and warehouse throughput.
- Cold Storage: High-density storage solutions that help businesses make more effective use of valuable temperature-controlled warehouse space.
- Wholesale & Distribution: Pallet storage supporting receiving, reserve inventory, order preparation and dispatch operations.
The right racking system should be selected according to operational requirements rather than industry type alone.

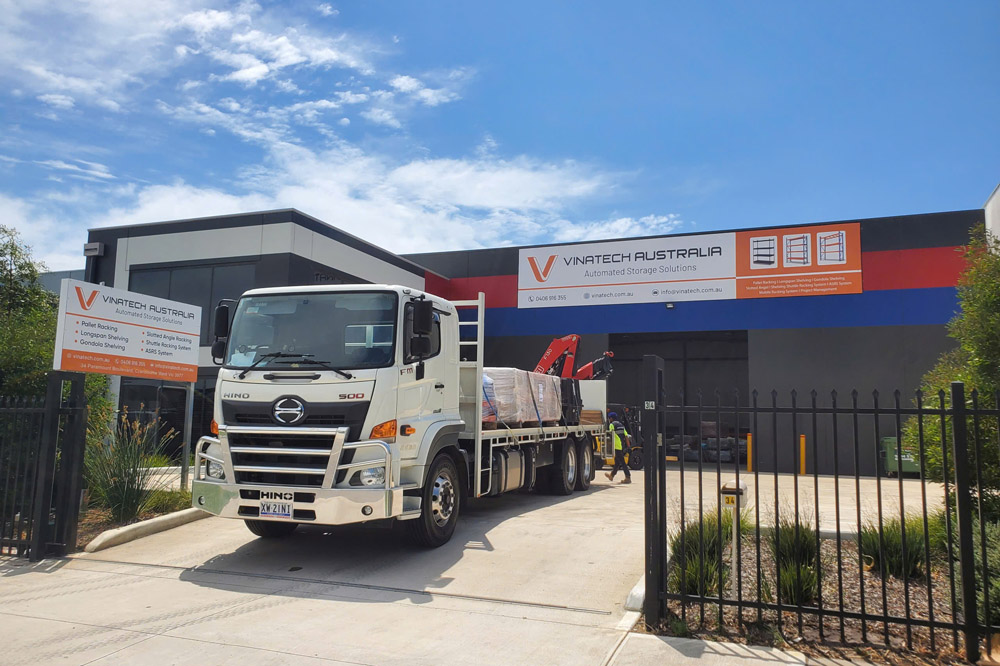

Our Warehouse Installation Service Areas
Vinatech Australia’s current office and warehouse is located at 34 Paramount Bvd, Cranbourne West VIC 3977, providing a local base for businesses throughout Melbourne’s south-east while supporting warehouse racking design and installation projects across Australia.
Our warehouse installation service areas include:
- Cranbourne West
- Cranbourne
- Dandenong South
- Dandenong
- Hallam
- Narre Warren
- Berwick
- Carrum Downs
- Frankston
- Keysborough
- Pakenham
- Braeside
- Moorabbin
- Greater Melbourne
- Other locations throughout Victoria
- Warehouse racking projects across Australia
For larger interstate projects, site assessment, delivery requirements, installation scheduling and on-site coordination can be reviewed during the quotation stage.
Warehouse Racking Installation FAQs
There is no single fixed price for warehouse racking installation. Costs depend on factors such as the racking type, number of pallet positions, project size, site conditions and specific installation requirements. The most accurate way to determine the cost is to assess the warehouse and develop a proposed racking layout before preparing a quotation. Contact Vinatech Australia to arrange a warehouse assessment and request a project quote.
Installation time depends on the size and complexity of the project. Conventional pallet racking generally involves fewer installation stages than large high-density or automated warehouse systems.
Yes. Existing warehouse racking can potentially be dismantled and relocated, provided the components remain suitable for reuse and the proposed new configuration has been appropriately assessed from an engineering perspective.
Yes. Many pallet racking systems have a modular design and can be expanded as warehouse requirements change. However, any expansion should be assessed against the existing racking system, configuration and future warehouse workflow.
For steel storage racking that falls within its applicable scope, Australian warehouse projects should consider the requirements of the current AS 4084 standard. The specific standards and engineering requirements applicable to each project may depend on the racking system and installation conditions.
Yes. Vinatech can assess existing warehouse conditions and develop a solution for installing new racking, increasing storage capacity or reconfiguring an existing storage system.
Yes. Vinatech Australia provides warehouse racking design and installation services for projects across Australia, with our current facility located at 34 Paramount Bvd, Cranbourne West VIC 3977.
Get a Warehouse Racking Installation Quote
Whether you are fitting out a new warehouse, increasing capacity at an existing facility, relocating a racking system or transitioning towards warehouse automation, Vinatech Australia can support the complete project lifecycle, from warehouse assessment and engineering design through manufacturing, supply, installation and after-sales support.
