For warehouse operators struggling with limited floor space, the challenge is real: how can you store more pallets without losing accessibility? The solution is Very Narrow Aisle (VNA) Racking — a high-density pallet racking system designed to maximize every square meter of your warehouse.

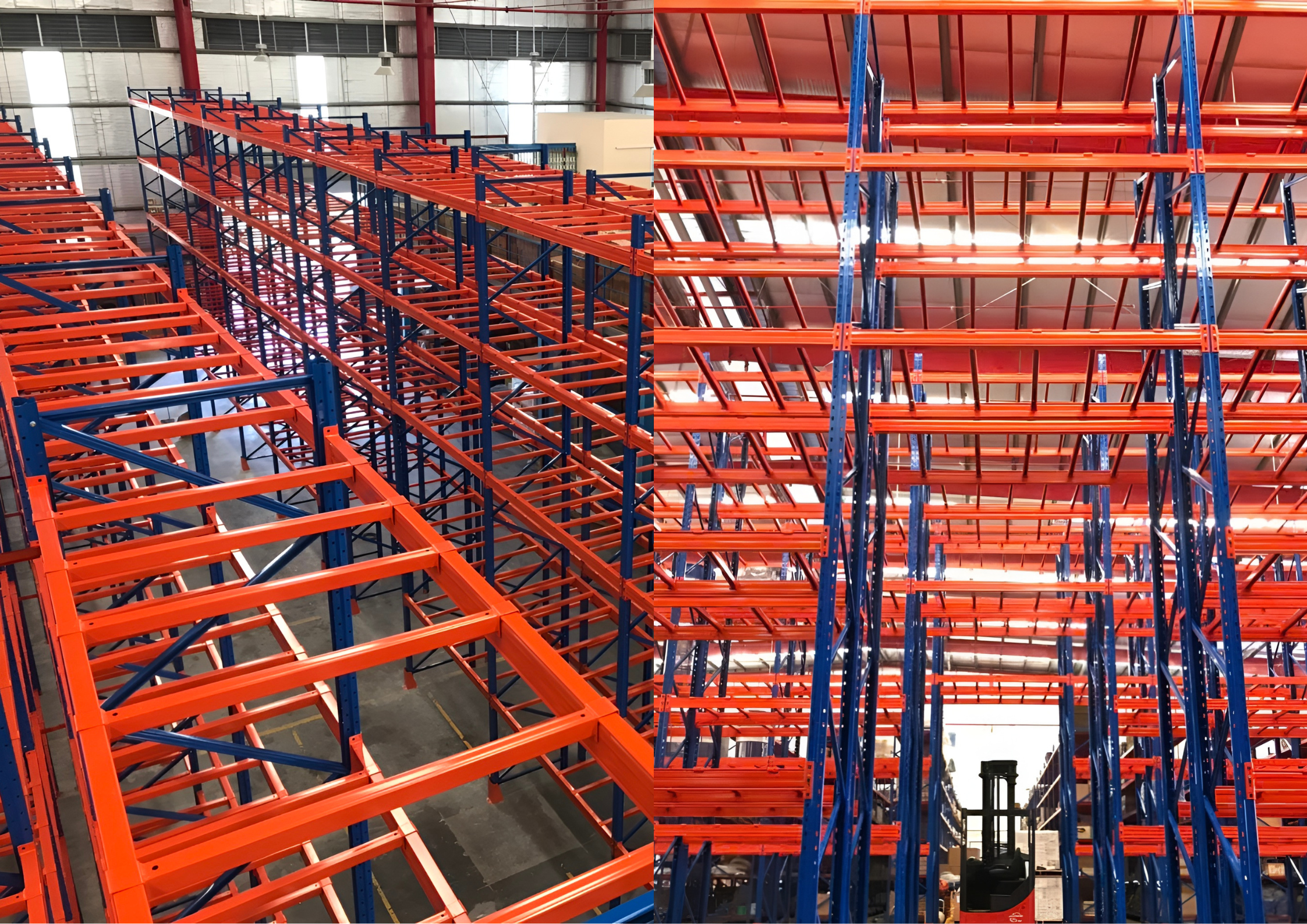

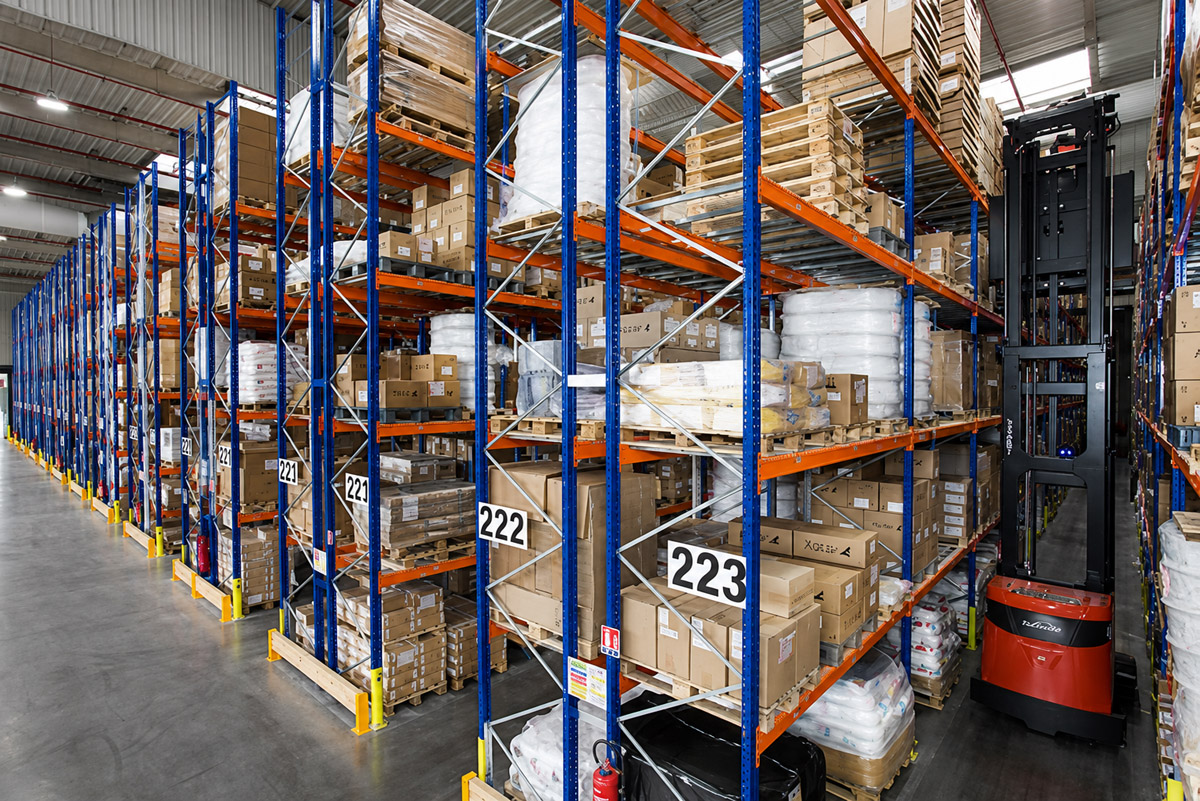

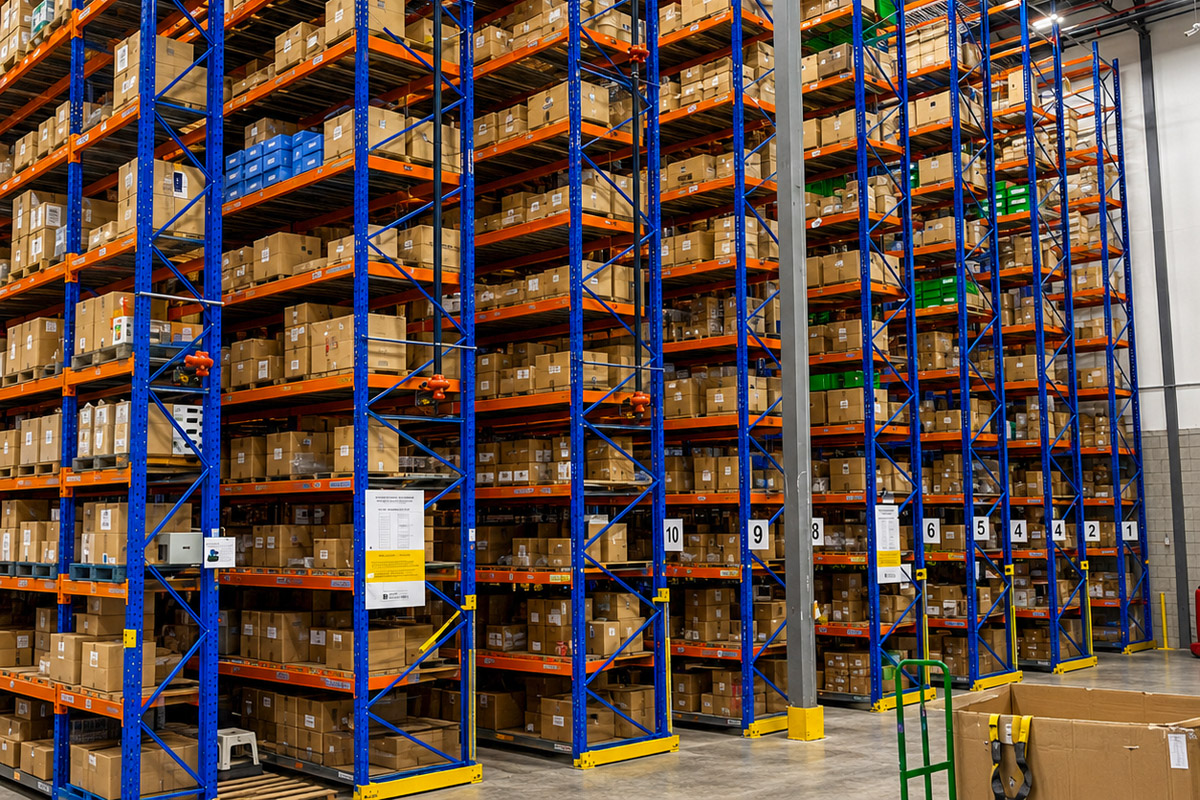

What is VNA (Very Narrow Aisle) Racking?
Very Narrow Aisle (VNA) racking is a specialised version of selective pallet racking. Its defining feature is the extremely narrow aisle space between racks, often measuring just 1.8 to 2.0 metres wide. To put that in perspective, this can reduce the amount of floor space dedicated to aisles by over 50% compared to a setup for a standard counterbalance forklift.
This space saving is achieved without compromising on the system’s core function. You still have direct, individual access to every pallet, making VNA a powerful solution for businesses that need both high density and high selectivity for a large number of different products (SKUs).
>> Read More:
- Pallet Racking: Structure, 6 Common Types and Safety Standards
- Selective Pallet Racking – Efficient Pallet Storage Solution
How VNA Racking Works: The Role of Specialised Equipment
Operating safely and efficiently in such tight confines is impossible with standard forklifts. A VNA system is defined by the specialised material handling equipment it requires.
Specialised VNA Forklifts
These machines are precision-engineered for operating at height in narrow spaces. The two primary types are:

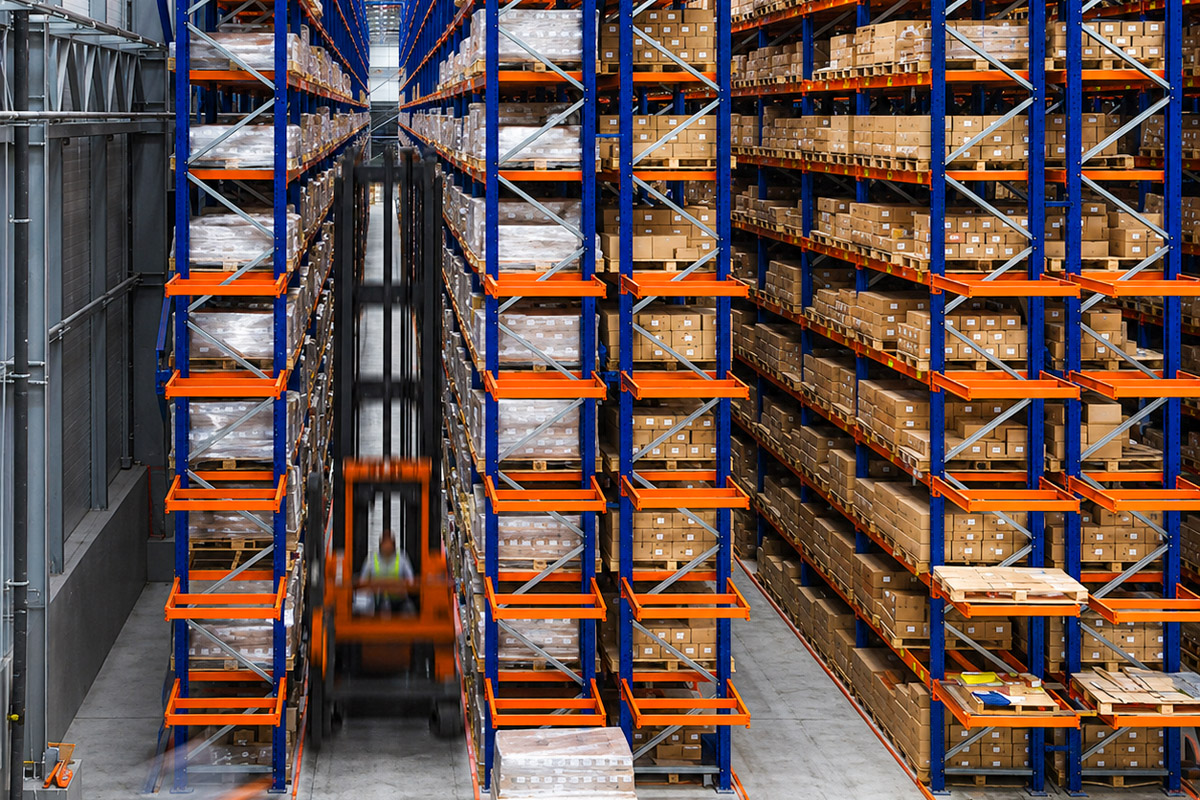

- Turret Trucks: These are the most common VNA vehicles. Their forks are mounted on a mast that can rotate 90 degrees to the left or right, allowing the operator to pick and place pallets without turning the truck itself.

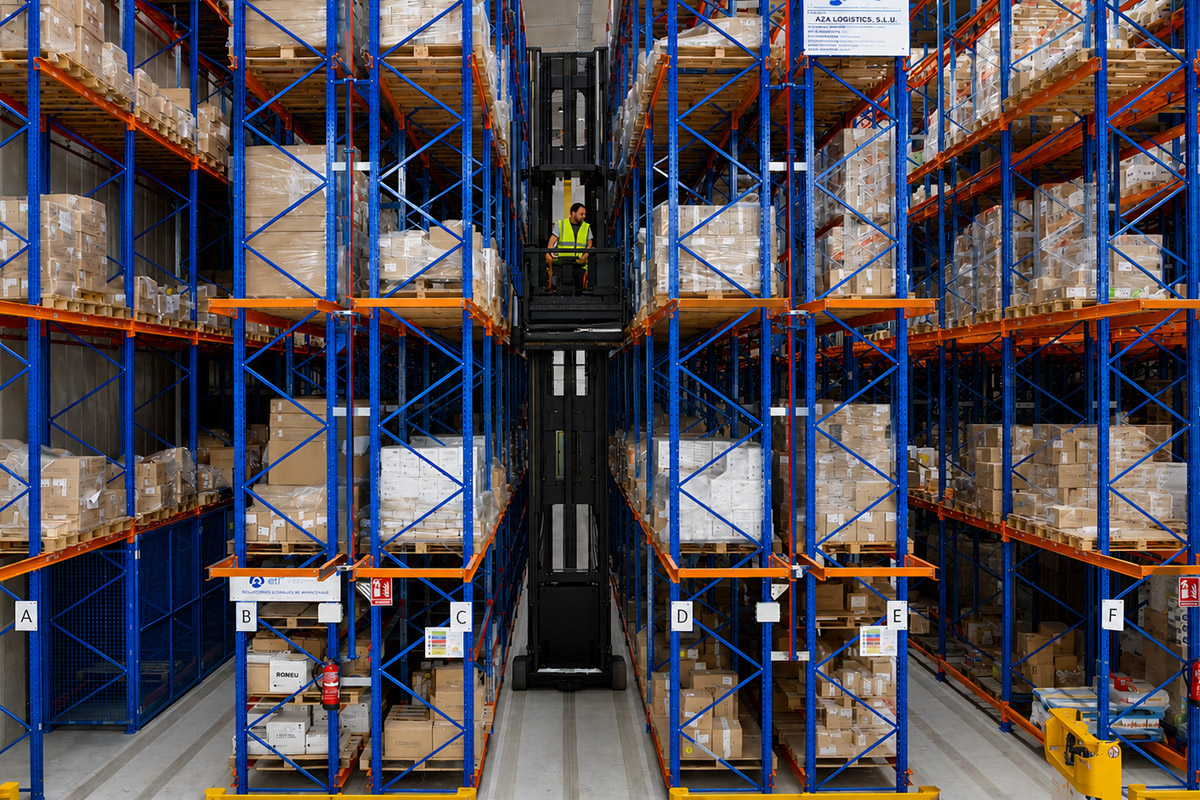

- Man-Up Order Pickers: In these vehicles, the entire operator cabin elevates with the forks. This gives the operator an excellent view when handling pallets at significant heights, improving safety and accuracy.
Precision Guidance Systems
To ensure the forklift navigates the narrow aisle without colliding with the racking, a guidance system is essential. This technology keeps the truck on a perfectly straight path, allowing the operator to focus on lifting and handling loads. Common methods include:
- Wire Guidance: An electromagnetic wire is embedded in the concrete floor, which the truck’s sensors follow.
- Rail Guidance: Steel rails are fixed to the floor at the base of the racking, and rollers on the truck guide it along the aisle.
The Key Benefits of a VNA Racking System
Investing in a VNA system is a strategic decision that delivers transformative results for your warehouse.
- Exceptional Increase in Storage Capacity: By converting wasted aisle space into valuable storage locations, a VNA system can increase your warehouse storage capacity by 40-50%. This allows you to store significantly more product within your existing facility, avoiding the immense cost of relocation or expansion.
- Maximum Use of Vertical Height: VNA trucks are designed to operate at incredible heights, often reaching over 12 metres. This allows you to take full advantage of your building’s vertical cube, turning unused overhead space into profitable storage.
- Total Pallet Selectivity: This is the key advantage of VNA over other high-density systems like Drive-In. You maintain 100% direct and immediate access to every pallet, which is crucial for operations with diverse product ranges and complex inventory management needs.
- Improved Productivity: With aisles optimised for specific tasks and reduced travel distances for forklifts, put-away and retrieval cycles become much faster. This leads to higher throughput and improved overall operational productivity.
>> Read More:
- Double Deep Racking: Maximise Warehouse Storage Density
- Drive-In Racking: Maximise High-Density Warehouse Storage
Is VNA Racking the Right Solution for Your Warehouse?
While incredibly powerful, a VNA system is a specialised solution and a significant investment. It is the perfect choice for operations where:
- Floor space is extremely limited or comes at a high cost.
- The facility has high ceilings that are currently underutilised.
- The inventory consists of a large number of different SKUs requiring both high storage density and direct access.
- High-volume throughput is a key operational requirement.
A critical consideration is your warehouse floor. VNA systems require a “super-flat” floor to operate safely and effectively at height. Our engineering team can conduct a detailed analysis to assess your floor’s suitability as part of the consultation process.
Featured VNA Racking Projects by Vinatech
Explore how Vinatech’s Very Narrow Aisle (VNA) Racking solutions maximise warehouse storage capacity, optimise vertical space and maintain 100% direct pallet accessibility.

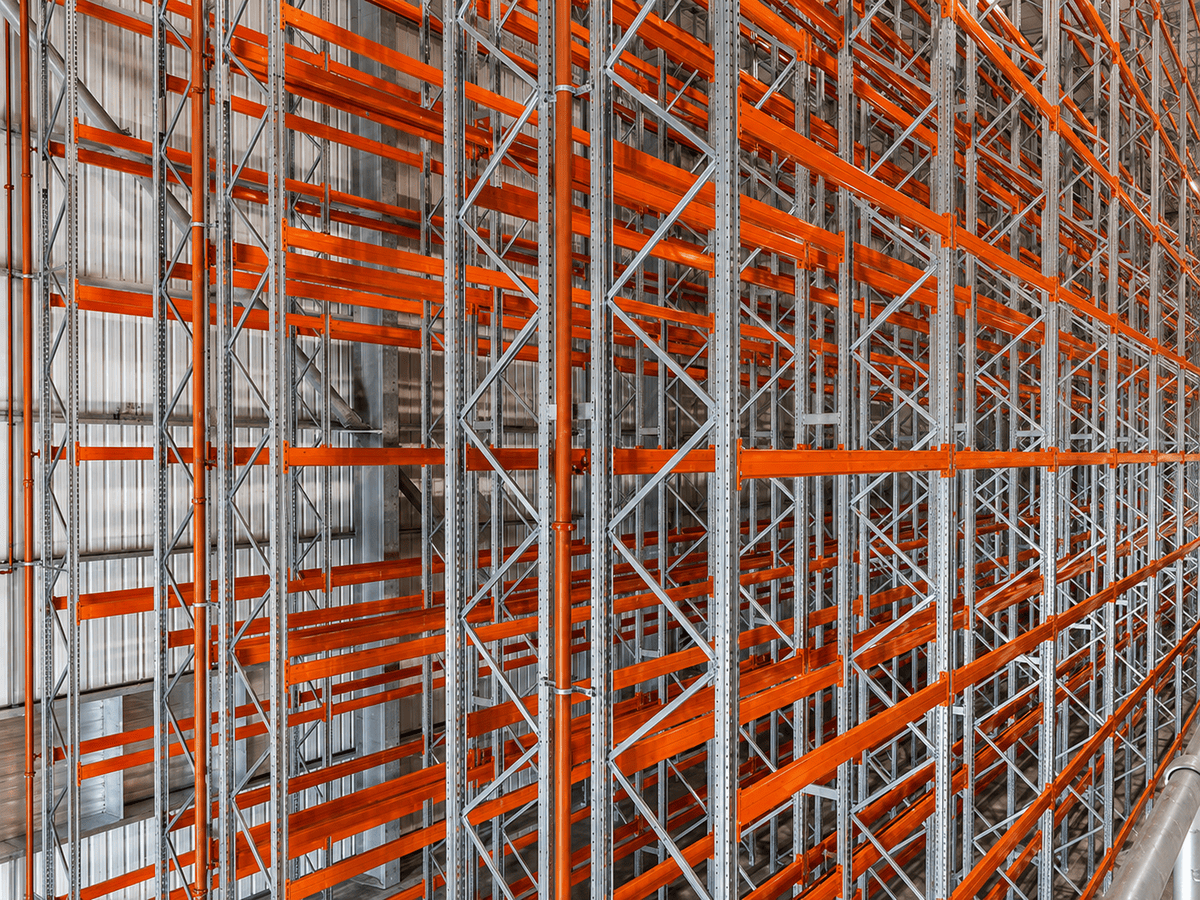

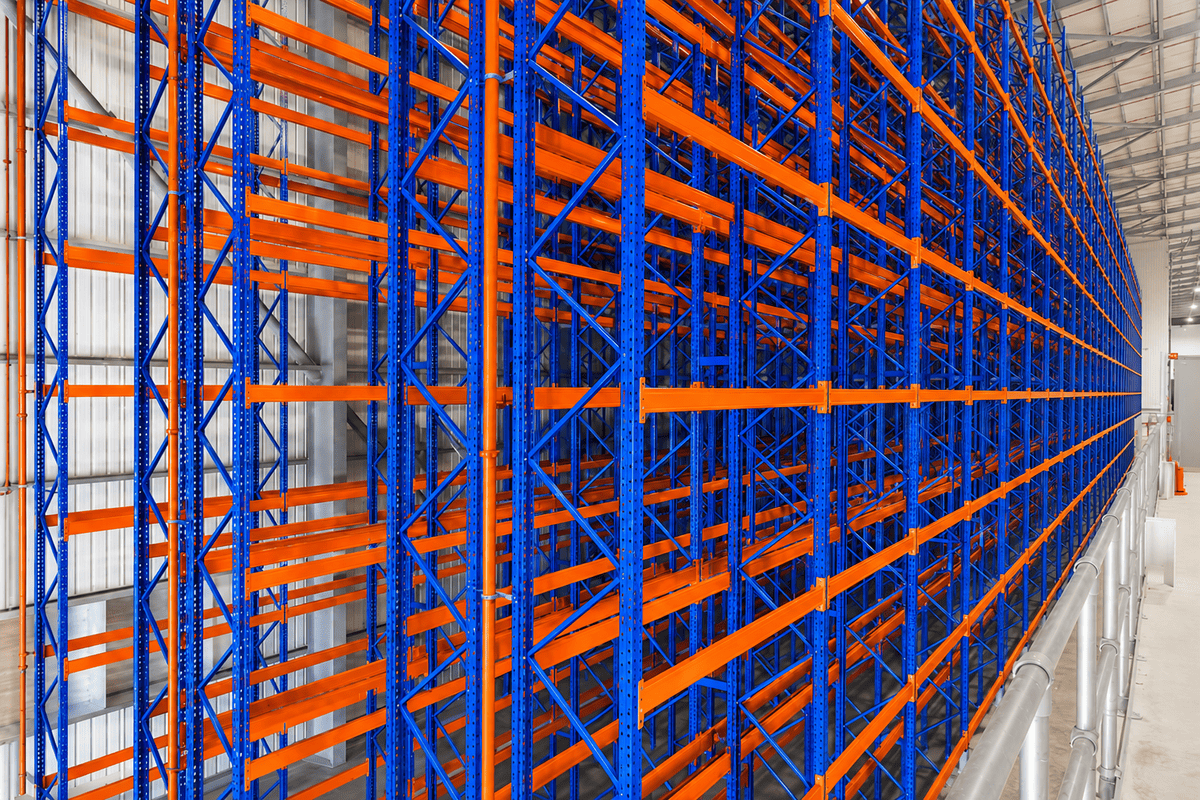

Distribution Centre – High-Density VNA Racking
Vinatech implemented a Very Narrow Aisle (VNA) Racking System for a 12,000 m² distribution centre, featuring high-bay storage and narrow operating aisles to maximise warehouse space utilisation. The system reduces conventional forklift aisle requirements while maintaining 100% direct access to individual pallets, supporting efficient inventory handling across multiple SKUs.
This project demonstrates how VNA Racking increases storage density, optimises vertical warehouse space and supports efficient high-volume distribution operations.
Why Choose Vinatech Australia for VNA Racking?
Choosing the right VNA Racking System requires more than maximising warehouse storage capacity. An effective solution should provide direct pallet access, efficient inventory management, safe forklift operations and flexibility for future expansion.
Vinatech Australia delivers customised VNA racking solutions designed to optimise warehouse space, streamline pallet handling and support long-term operational efficiency.
- End-to-end project solutions: Comprehensive support from warehouse assessment, racking design and manufacturing to professional installation and after-sales service.
- 100% direct pallet accessibility: Selective racking provides individual access to every pallet, enabling efficient stock picking, loading and retrieval without moving other pallets.
- Optimised warehouse layouts: Customised configurations maximise vertical storage space while maintaining appropriate aisle widths and forklift accessibility.
- Designed to Australian standards: Racking systems are designed in accordance with AS 4084:2023 requirements.
- Customised load configurations: Rack dimensions, beam levels and load capacities are tailored to pallet sizes, inventory requirements and warehouse operations.
- 2D and 3D warehouse designs: Detailed layouts help customers evaluate pallet capacity, aisle arrangements and material handling workflows before installation.
- Factory-direct manufacturing: Direct manufacturing supports competitive pricing, consistent product quality and flexible racking configurations.
- Flexible and scalable storage: Adjustable beam levels and modular designs accommodate changing inventory volumes, different pallet sizes and future warehouse expansion.
- Versatile industry applications: Suitable for logistics, FMCG distribution, manufacturing, retail, food and beverage storage, and e-commerce fulfilment.
- Australian-based support: Vinatech Australia provides local project coordination and after-sales assistance from 34 Paramount Blvd, Cranbourne West VIC 3977.
With extensive experience in warehouse storage solutions, Vinatech Australia provides VNA racking systems that maximise space utilisation, ensure direct pallet accessibility and support efficient, scalable warehouse operations.
If you are ready to explore the pinnacle of warehouse storage density, talk to the experts at Vinatech. Contact us today for a detailed consultation and site analysis to determine if a VNA Racking system can transform your facility into a model of efficiency.
