What Is a Pallet Racking Mezzanine Floors?
A Pallet Rack Mezzanine (rack-supported mezzanine) is an elevated floor system that is integrated directly with warehouse pallet racking. By using the racking structure itself to support the mezzanine floor, it eliminates the need for separate support columns and maximizes the use of vertical space. This dual-purpose solution provides efficient pallet storage at ground level while creating additional space above for storage, order picking, or operational activities, helping warehouses significantly increase their usable capacity without expanding their footprint.
>> Read more:

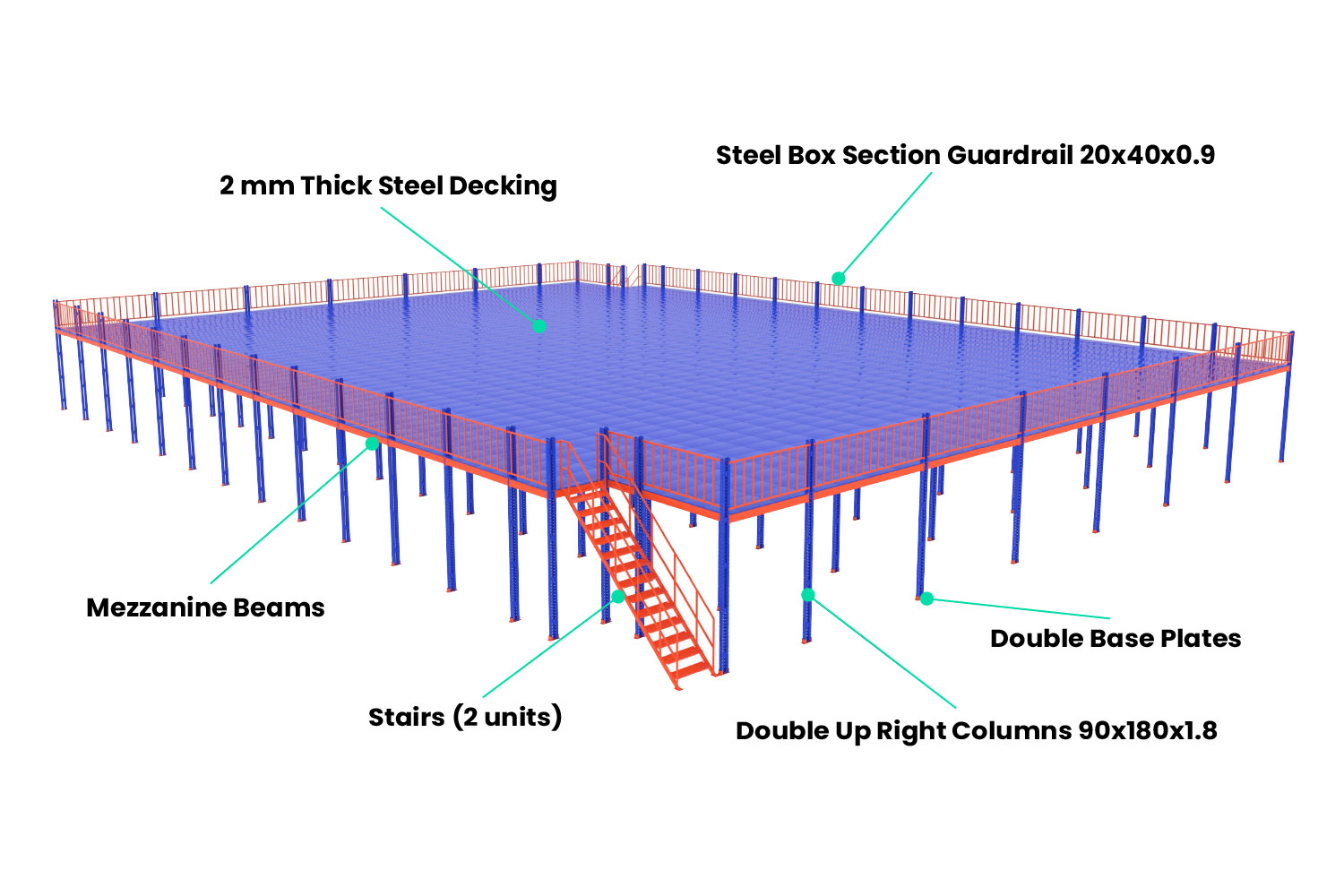

Key Components of a Pallet Rack Mezzanine
A pallet rack mezzanine is built from a combination of pallet racking and mezzanine flooring components that transform unused vertical warehouse space into a fully functional second level. Unlike freestanding structural mezzanines, this system uses heavy-duty pallet racking as the primary load-bearing structure, providing both storage capacity and elevated workspace within a single integrated solution.
Structural Support Components
- Upright Frames: Heavy-duty vertical steel frames that serve as the main support structure for both ground-level pallet storage and the elevated mezzanine floor.
- Load Beams: Horizontal steel beams that connect to the uprights, creating the primary structural framework while supporting pallet loads and the mezzanine platform above.
- Floor Joists (Purlins): Steel channels installed perpendicular to the load beams to distribute loads evenly and provide a stable foundation for the floor decking.
- Base Plates and Anchors: Reinforced steel base plates securely anchored to the concrete floor, ensuring structural stability, load-bearing integrity, and operational safety.
Flooring and Decking Options
- Plywood or Particleboard Decking: High-density timber panels that provide a smooth, cost-effective walking surface for storage and picking operations.
- Steel Decking: Solid or checker-plate steel flooring designed for heavy-duty applications, offering excellent durability, impact resistance, and long service life.
- Steel Bar Grating: Open-grid steel flooring that promotes airflow, allows light penetration, and enables sprinkler systems to function effectively throughout the facility.
Access and Safety Features
- Staircases and Access Ladders: Engineered access systems that provide safe and convenient movement between floor levels while complying with workplace safety standards.
- Handrails and Guardrails: Protective barriers installed around mezzanine perimeters to help prevent falls and improve operator safety.
- Pallet Loading Gates: Specialized safety gates, including swing, sliding, and pivoting designs, that enable forklifts to safely transfer pallets onto the mezzanine level while maintaining edge protection.
Benefits of a Warehouse Racking Mezzanine
A pallet rack mezzanine is an effective solution for maximizing warehouse capacity by utilizing unused vertical space. By creating an elevated platform above or within existing pallet racking, businesses can significantly increase usable floor area—often doubling or tripling storage and operational capacity without the expense of facility expansion or relocation.
- Cost-Effective Expansion: A pallet rack mezzanine offers a more affordable alternative to leasing additional warehouse space, constructing building extensions, or relocating operations.
- Improved Workflow Efficiency: The multi-level design allows businesses to separate different activities within the same footprint, such as bulk pallet storage on the ground level and order picking, packing, or assembly operations above, resulting in smoother workflows and higher productivity.
- Fast Installation: Because the mezzanine is supported by the existing racking structure, installation is typically faster and less disruptive than traditional building modifications, helping minimize operational downtime.
- Highly Customizable: The system can be tailored to suit specific operational requirements, with options for shelving, storage areas, workstations, offices, sorting zones, conveyor integration, and other specialized applications.
- Better Space Utilization: By making full use of vertical warehouse height, pallet rack mezzanines maximize storage density and improve the overall efficiency of available floor space.
>> Read more:
- Selective Pallet Racking: Specifications, Components and Applications
- Double Deep Pallet Racking: How It Works, Benefits, and Applications
Applications of Pallet Rack Mezzanines
Pallet rack mezzanines enable businesses to maximize underutilized vertical warehouse space by creating additional storage and operational levels. As a highly flexible and cost-effective solution, they can significantly increase usable floor area without the expense of building extensions or facility relocation.
Common applications include:
- E-Commerce and 3PL Fulfilment: Mezzanine levels provide valuable space for storing high-SKU inventory and supporting manual order picking, while the ground floor remains dedicated to pallet storage, staging, and forklift operations.
- Order Picking and Packing: Dedicated pick-and-pack areas can be positioned on the mezzanine level, improving workflow efficiency and freeing up valuable ground-floor space for fast-moving inventory.
- Light Assembly and Kitting: The elevated platform creates a separate workspace for product assembly, kitting, labeling, and other value-added services, reducing congestion in primary warehouse operations.
- In-Plant Offices and Workspaces: Mezzanines can accommodate offices, meeting rooms, break areas, or quality control stations, allowing supervisors and staff to remain close to day-to-day operations.
- Spare Parts and Archive Storage: Widely used in automotive, manufacturing, and electronics facilities, mezzanines provide organized storage for thousands of small components, spare parts, tools, and archived records.

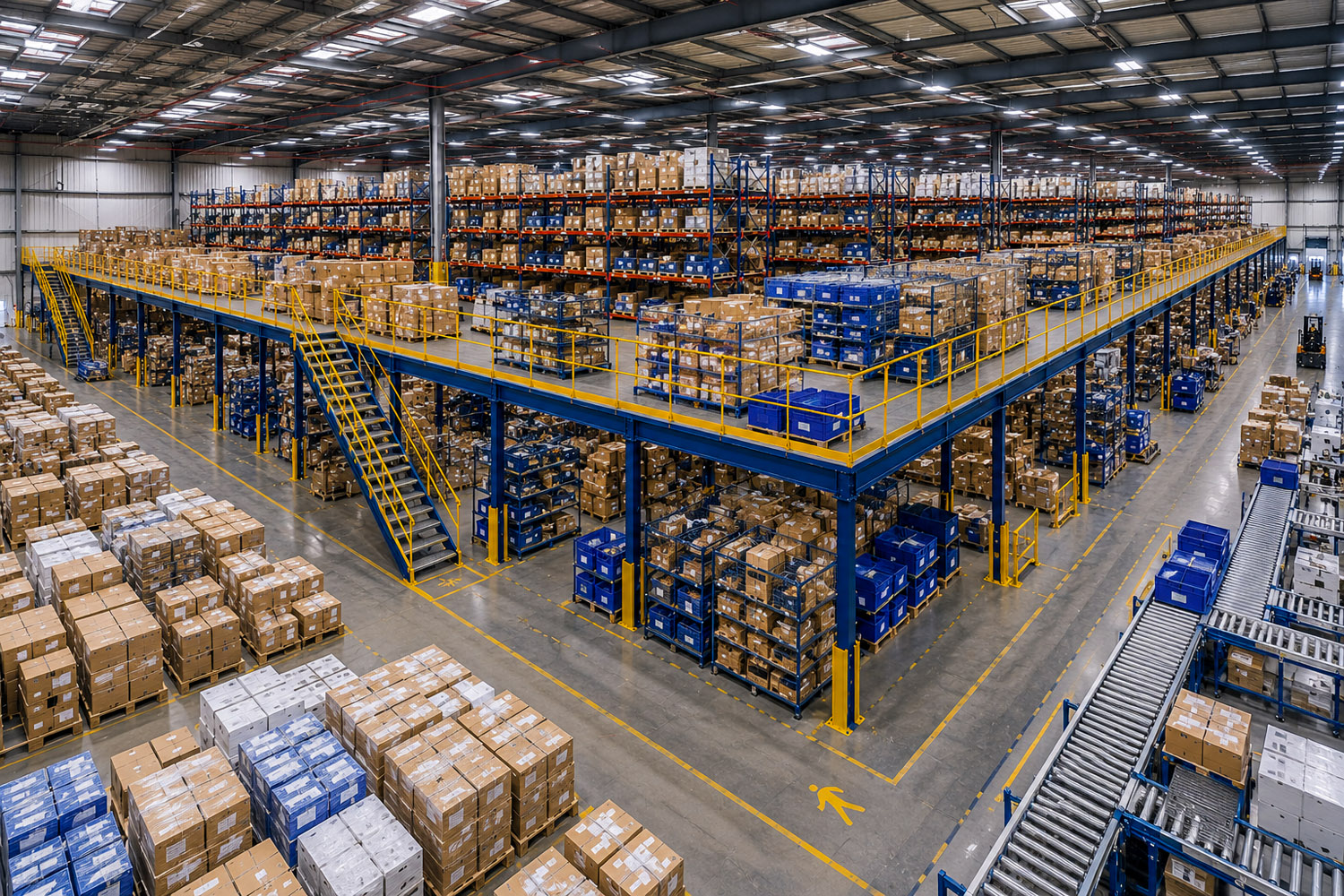

- Automation Integration: Pallet rack mezzanines can be integrated with conveyors, vertical lifts, pallet transfer systems, and gravity chutes, enabling efficient movement of goods between multiple levels and supporting warehouse automation initiatives.
Vinatech Australia: Industrial Warehouse Racking – Warehouse Shelving Solutions
- Website: https://vinatech.com.au/
- Phone number: 0485 083 868
- Email: info@vinatech.com.au
- Address: 34 Paramount Bvd, Cranbourne West VIC 3977, Australia
Featured Mezzanine Floor Projects by Vinatech
Explore how Vinatech’s Warehouse Racking Mezzanine solutions maximise vertical space, create additional usable floor areas and improve storage efficiency without expanding the existing warehouse footprint.
Retail Distribution Warehouse – Warehouse Racking Mezzanine
Vinatech Australia proposed a Warehouse Racking Mezzanine System adding approximately 3,500 m² of elevated floor area within a 5,000 m² warehouse, creating 2 operating levels and increasing the combined gross floor area to 8,500 m². The proposed configuration delivers a 70% increase in gross floor area, providing additional space for retail inventory while preserving ground-level areas for picking, packing and dispatch.
This project demonstrates how Mezzanine Floor solutions can maximise vertical warehouse space, accommodate growing inventory and support efficient retail distribution operations.
Why Choose Vinatech Australia for Selective Pallet Racking?
Choosing the right Selective Pallet Racking System requires more than maximising warehouse storage capacity. An effective solution should provide direct pallet access, efficient inventory management, safe forklift operations and flexibility for future expansion.
Vinatech Australia delivers customised selective pallet racking solutions designed to optimise warehouse space, streamline pallet handling and support long-term operational efficiency.
- End-to-end project solutions: Comprehensive support from warehouse assessment, racking design and manufacturing to professional installation and after-sales service.
- 100% direct pallet accessibility: Selective racking provides individual access to every pallet, enabling efficient stock picking, loading and retrieval without moving other pallets.
- Optimised warehouse layouts: Customised configurations maximise vertical storage space while maintaining appropriate aisle widths and forklift accessibility.
- Designed to Australian standards: Racking systems are designed in accordance with AS 4084:2023 requirements.
- Customised load configurations: Rack dimensions, beam levels and load capacities are tailored to pallet sizes, inventory requirements and warehouse operations.
- 2D and 3D warehouse designs: Detailed layouts help customers evaluate pallet capacity, aisle arrangements and material handling workflows before installation.
- Factory-direct manufacturing: Direct manufacturing supports competitive pricing, consistent product quality and flexible racking configurations.
- Flexible and scalable storage: Adjustable beam levels and modular designs accommodate changing inventory volumes, different pallet sizes and future warehouse expansion.
- Versatile industry applications: Suitable for logistics, FMCG distribution, manufacturing, retail, food and beverage storage, and e-commerce fulfilment.
- Australian-based support: Vinatech Australia provides local project coordination and after-sales assistance from 34 Paramount Blvd, Cranbourne West VIC 3977.
With extensive experience in warehouse storage solutions, Vinatech Australia provides selective pallet racking systems that maximise space utilisation, ensure direct pallet accessibility and support efficient, scalable warehouse operations.
FAQ about Warehouse Racking Mezzanine
