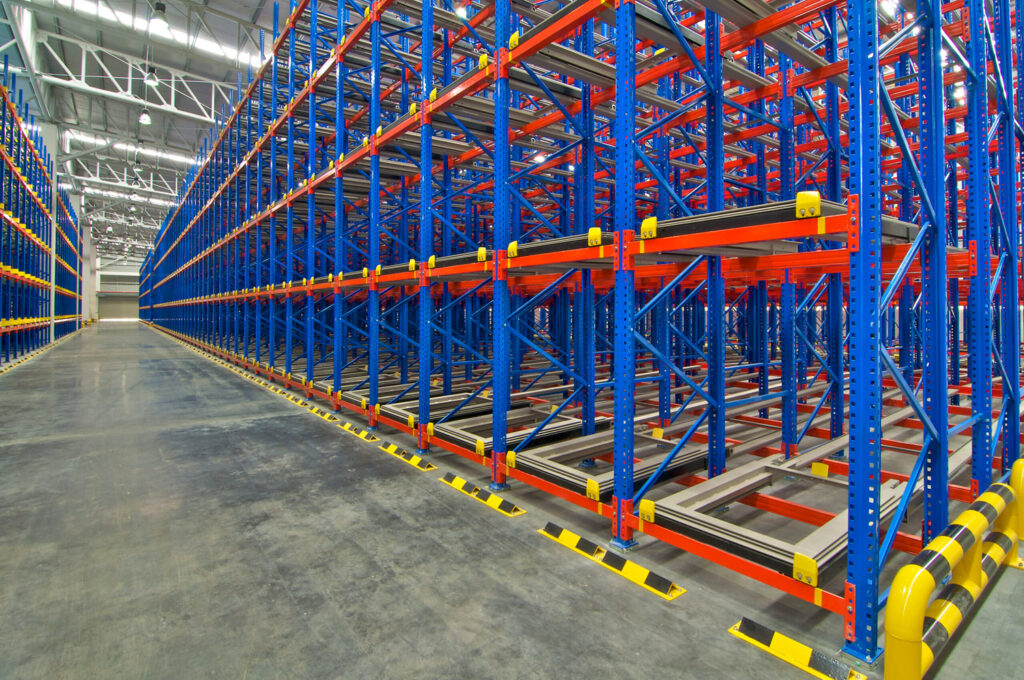

What is Push Back Pallet Racking?
Push back racking is a high-density pallet storage system that stores pallets 2 to 6 positions deep on inclined rails or nested carts, allows forklifts to load and retrieve pallets from a single aisle, pushes existing pallets backwards when a new pallet is loaded, and uses gravity to move the remaining pallets forward to the pick face when the front pallet is removed. This makes Push Back Pallet Racking suitable for LIFO operations, where the last pallet stored is the first pallet retrieved.
Key Features:
- High density pallet storage: Stores multiple pallets deep in each lane, increasing capacity within the same warehouse area.
- LIFO stock rotation: Supports last-in, first-out inventory handling for suitable product categories.
- Single-aisle access: Pallets are loaded and retrieved from the same aisle, with pallet movement supported by carts or rollers inside the racking lane.
- Deep-lane configuration: Each lane can be designed with multiple pallet positions in depth, depending on pallet size, load weight and warehouse layout.
- Forklift-compatible operation: The system can be configured to suit different forklift types, pallet dimensions and handling requirements.
- Customisable design: Push Back Racking can be adapted to different pallet weights, lane depths, storage capacities and warehouse conditions.
Push Back Racking is commonly used in Australian warehouses that handle medium to large pallet volumes, limited SKU variety, batch storage and products that do not require strict first-in, first-out inventory rotation.
>> Read more:
- Pallet Racking: Structure, 6 Common Types and Safety Standards
- Drive-In Racking: Maximise High-Density Warehouse Storage
How Push Back Racking Works
Push Back Pallet Racking works through two main operating stages: loading and unloading.

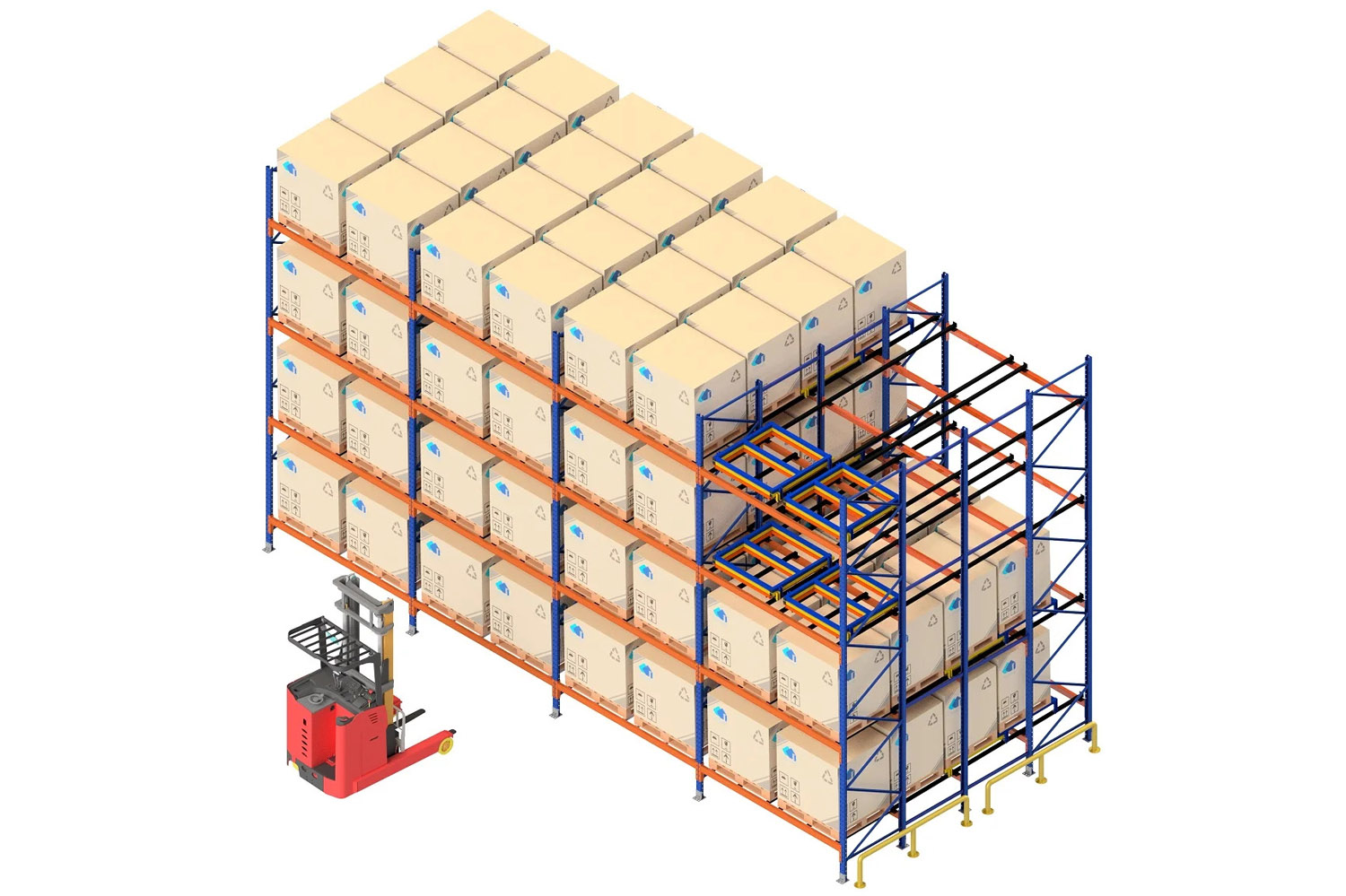

Loading (Pushing Back)

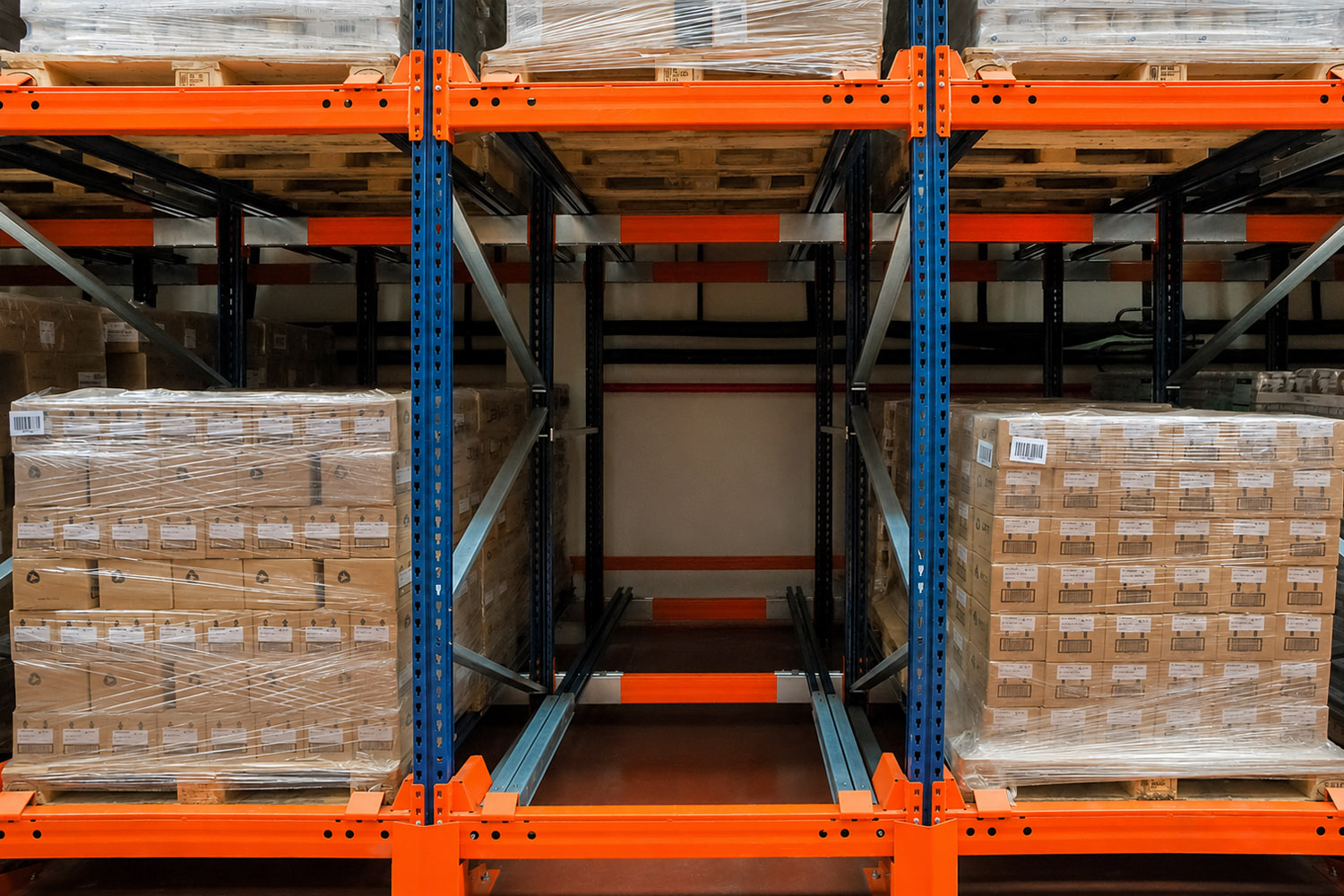

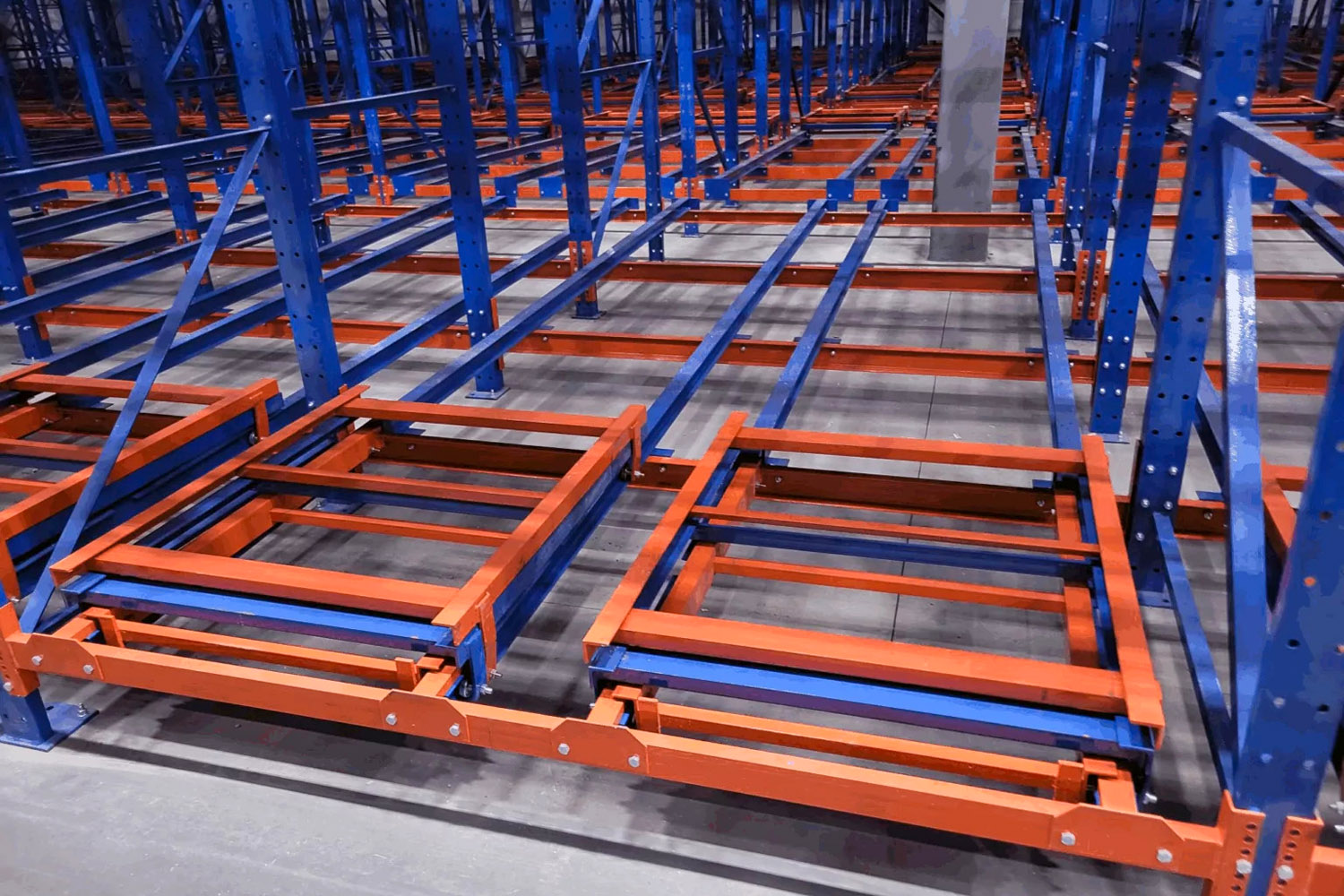

Push back rack systems use nested, wheeled carts on slightly inclined rails. Forklifts load new pallets from the front, pushing existing pallets deeper into the rack. When a front pallet is removed, gravity rolls the remaining pallets forward to the picking position.

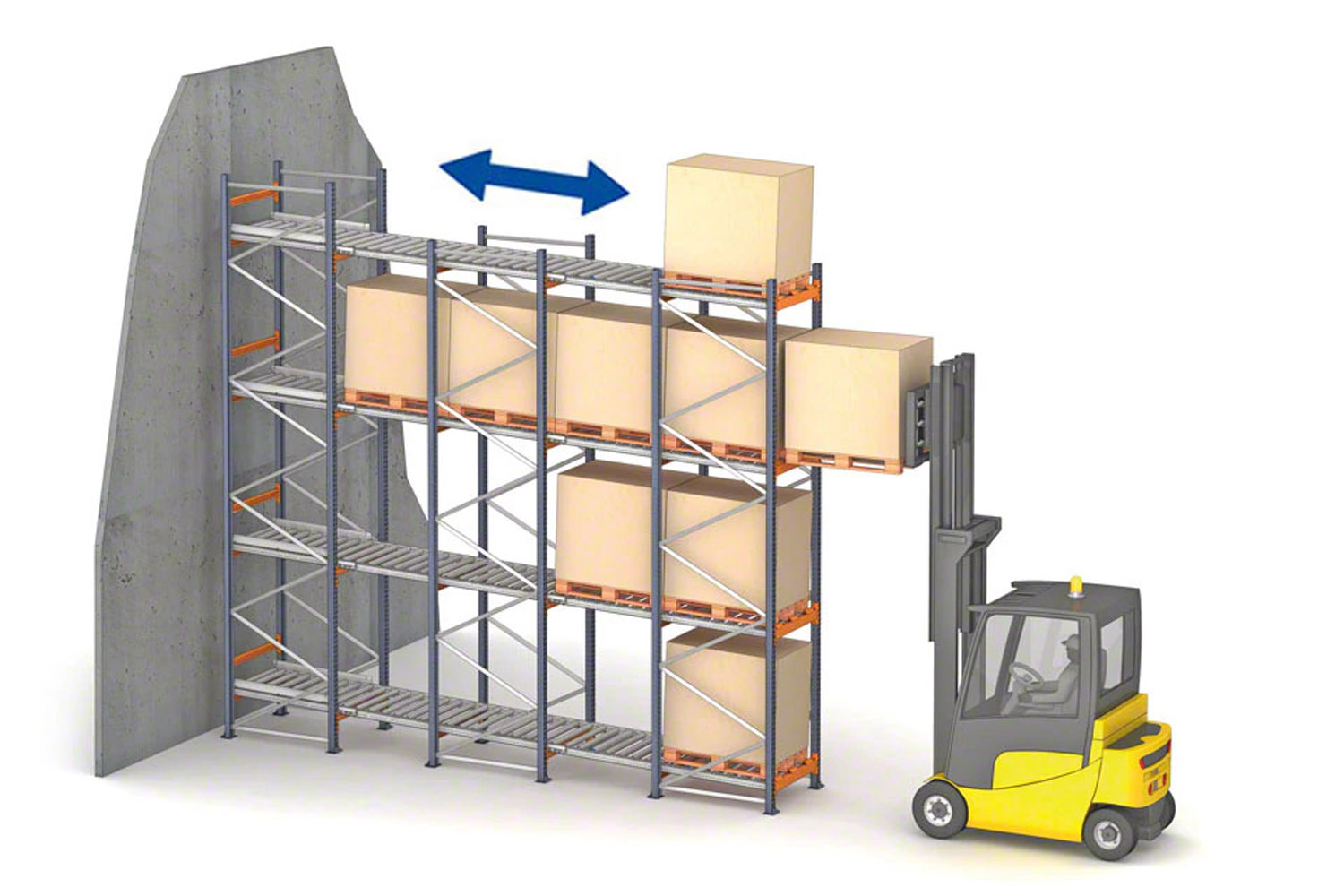

Unloading (Gravity Flow)
When stock is retrieved, the forklift removes the front pallet. This is the last pallet loaded, which matches the LIFO principle. Once the pallet is lifted and moved away, gravity moves the remaining pallets forward by one position. The next pallet is then ready at the pick face.
This process shortens handling time, reduces forklift movement and improves pallet retrieval speed.

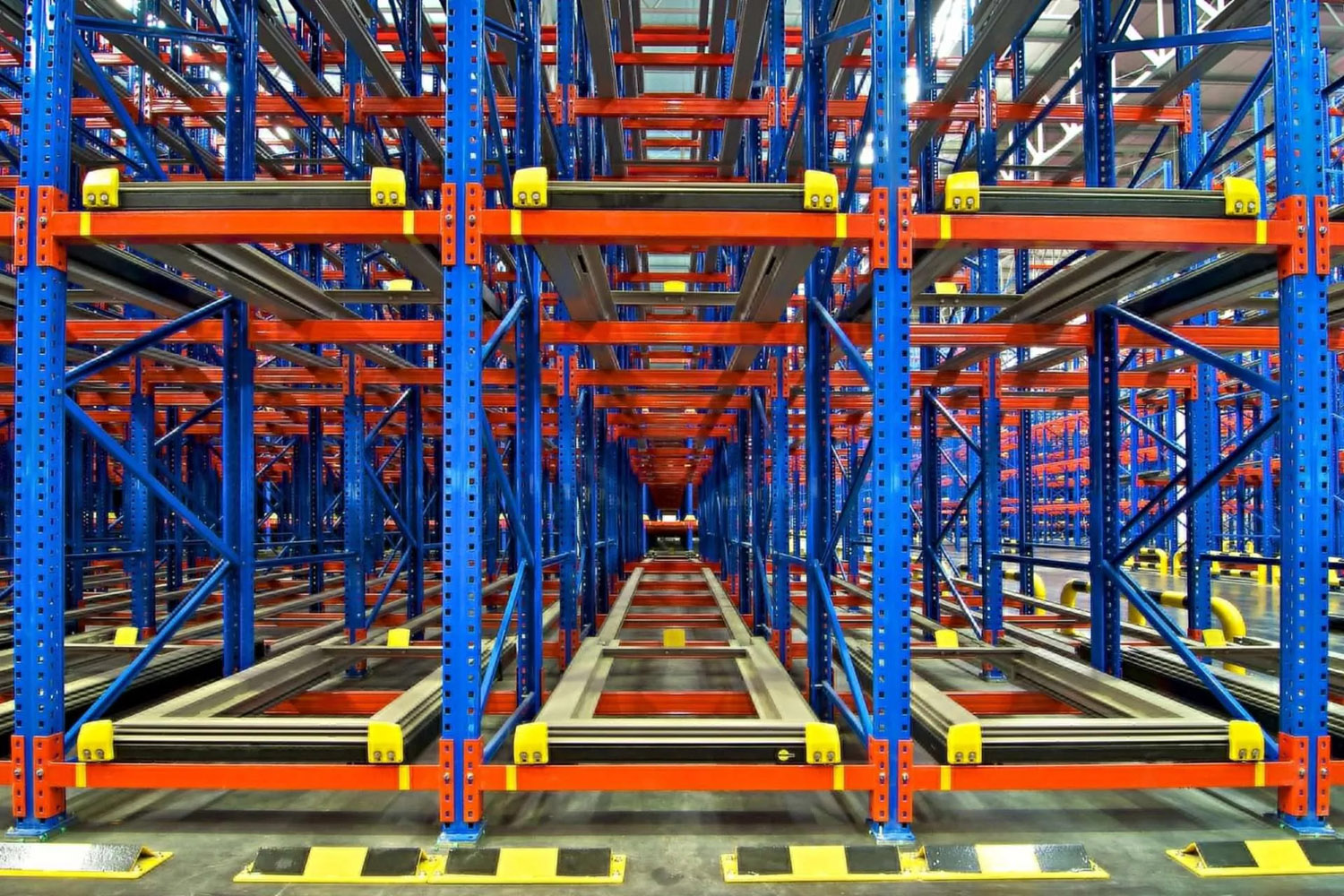

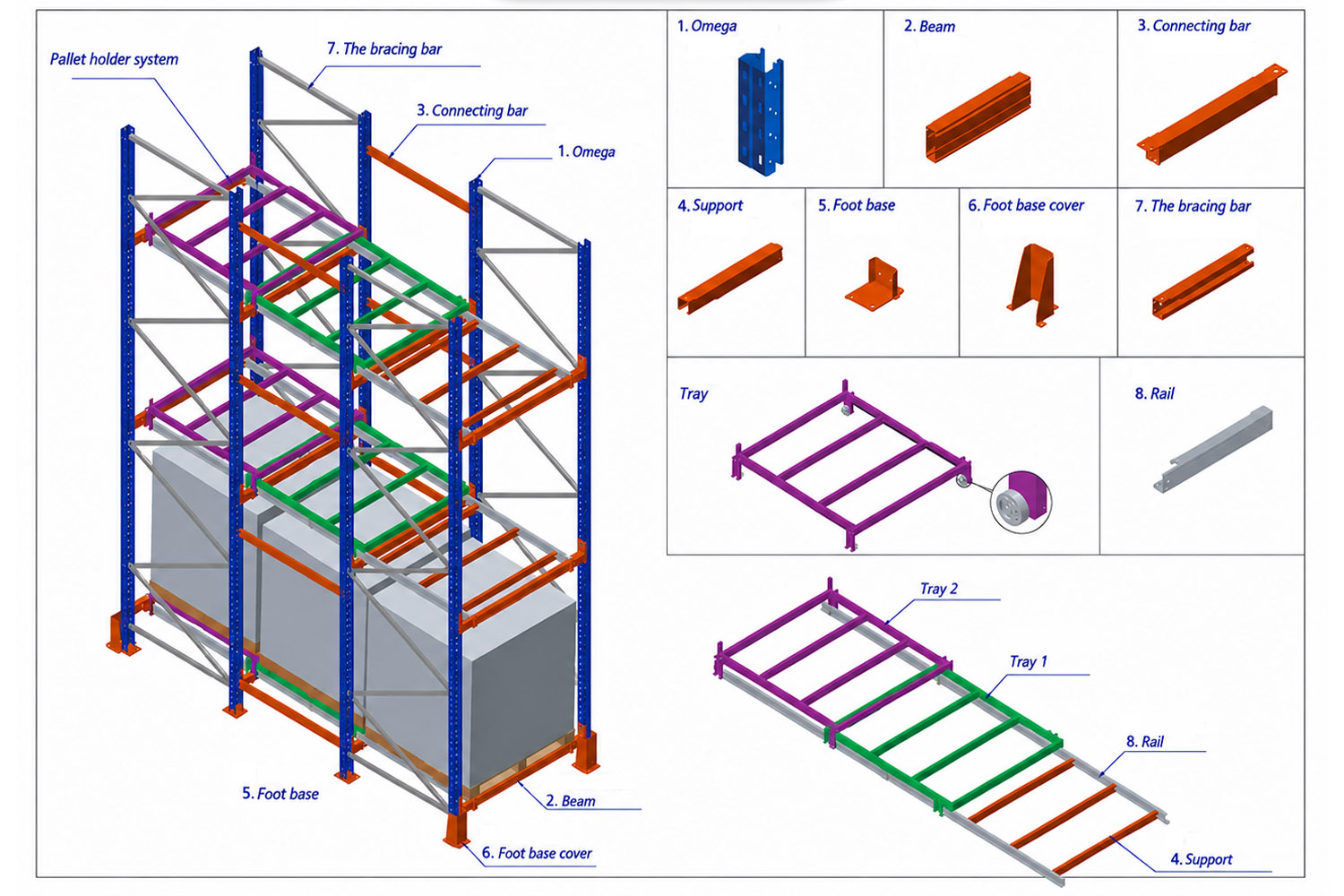

Push Back Racking System Structure
To understand how a Push Back Racking System works, it is important to look at the key structural components that support pallet movement, load stability, and safe warehouse operation.
Every reliable pallet support system starts with strong, well-designed components working together.
- Omega: The Omega upright forms the main vertical structure of the racking system, providing strength and stability.
- Beam: The beam supports the pallet load and connects the upright frames across each storage level.
- Connecting Bar: The connecting bar links key structural components together to keep the system aligned and secure.
- Support Bar: The support bar reinforces the pallet tray and helps distribute the load more evenly.
- Foot Base: The foot base anchors the upright to the floor, ensuring a stable and secure installation.
- Foot Base Cover: The foot base cover protects the base area from impact and improves overall safety.
- The Bracing Bar: The bracing bar strengthens the frame and helps the racking system remain stable during operation.
With each component working together, the Push Back Racking System delivers a stronger, safer, and more space-efficient storage solution.
Advantages of Push Back Racking System
For Australian warehouses operating under space, labour and throughput pressures, Push Back Racking offers a practical balance between high-density pallet storage, efficient forklift movement, safer operation and long-term cost optimisation.
Key Benefits of Push Back Pallet Racking:
- Higher storage density: Increases pallet positions within the existing warehouse footprint.
- Faster loading and retrieval: Reduces forklift travel because pallets are loaded and retrieved from the same aisle.
- Good fit for LIFO inventory: Works well for non-perishable goods, long shelf-life products, manufacturing buffers, packaging materials, retail backstock and bulk storage.
- Reduced forklift damage risk: Keeps forklifts in the front aisle instead of inside the racking structure, reducing the risk of direct impact to internal frames.
Overall, Push Back Racking is a cost-effective solution for Australian businesses that need to maximise pallet capacity, improve warehouse productivity and reduce operational inefficiencies without immediately expanding their warehouse footprint.
>> Read more:
- Pallet Flow Racking: Advantages, Structure, and Applications
- Push-Back Racking Systems Australia for LIFO Warehouses
Applications for Push Back Racking System
Push Back Racking is most effective when a warehouse stores multiple pallets of the same SKU and does not require strict FIFO stock rotation.
Common applications in Australia include:
- 3PL and logistics warehouses: Suitable for contract logistics providers managing medium-turnover SKUs, where each customer or SKU can be assigned to a dedicated lane.
- Retail distribution: Suitable for promotional stock, seasonal inventory, bulky goods, department store products and replenishment pallets.
- Manufacturing: Effective for raw materials, packaging, components, work-in-progress inventory and finished goods awaiting dispatch.
- Food and beverage: Suitable for non-perishable goods, long shelf-life products, beverage pallets, packaging materials and ambient storage.
- Cold storage and cool rooms: Valuable in temperature-controlled environments where every square metre is costly to build and operate.
- E-commerce and omnichannel retail: Useful for bulk reserve storage that supports forward picking and high-volume fulfilment operations.
As a practical rule, if your warehouse stores multiple pallets of the same SKU, uses LIFO stock rotation and needs higher density than selective racking without full automation, Push Back Pallet Racking should be considered.
Featured Push Back Racking Projects by Vinatech
Explore how Vinatech’s Push Back Racking solutions maximise pallet storage capacity, reduce aisle requirements and improve warehouse efficiency across manufacturing, distribution and logistics operations.

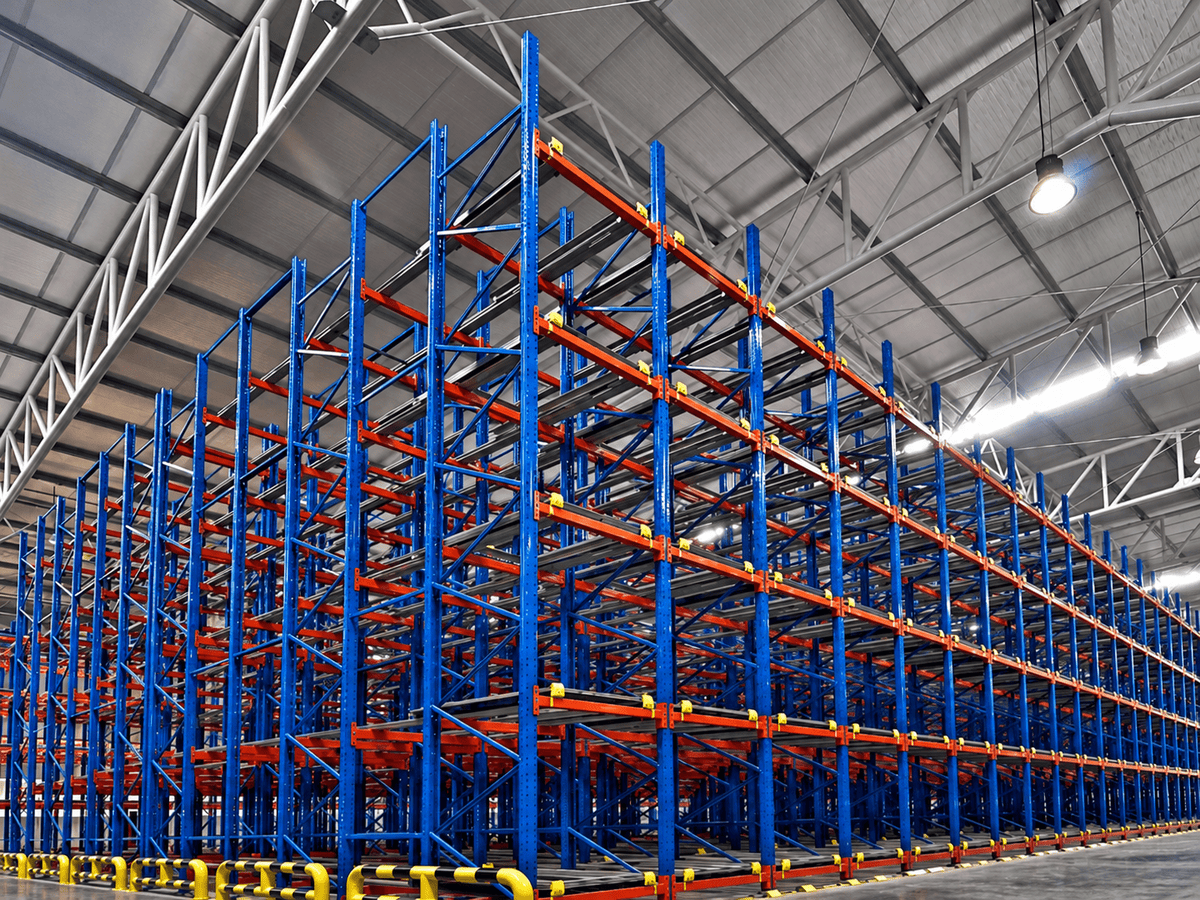

1. Manufacturing & Distribution Warehouse – Push Back Racking
Vinatech Australia proposed a Push Back Racking System providing approximately 6,000 pallet positions within an 8,000 m² warehouse, featuring 4 storage levels and 4-pallet-deep storage lanes. The configuration targets approximately 30% higher storage capacity and a 15% reduction in average pallet handling time, compared with the proposed baseline.
This solution demonstrates how Push Back Racking can maximise storage density, reduce forklift travel and support efficient Last-In, First-Out (LIFO) batch inventory management.

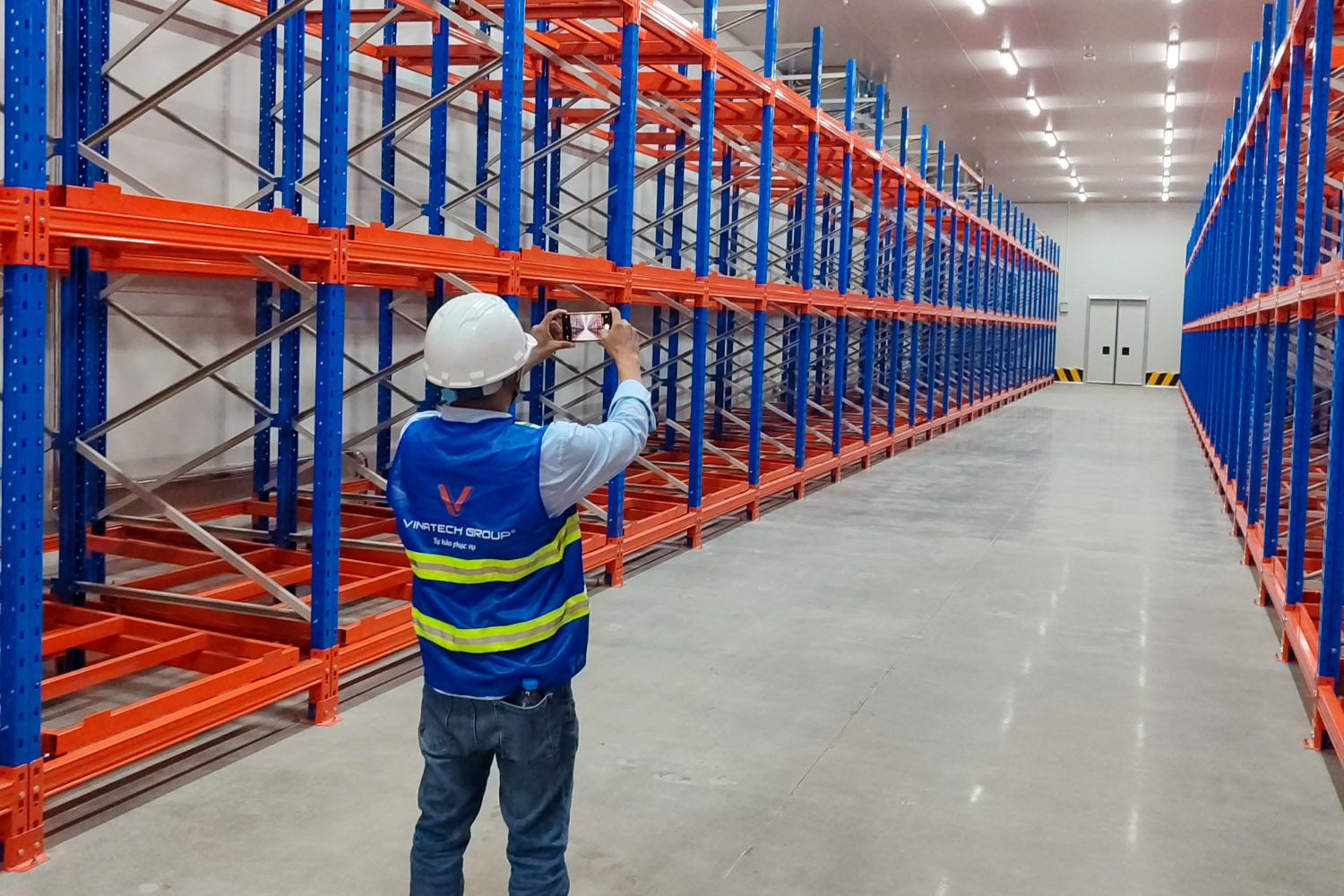

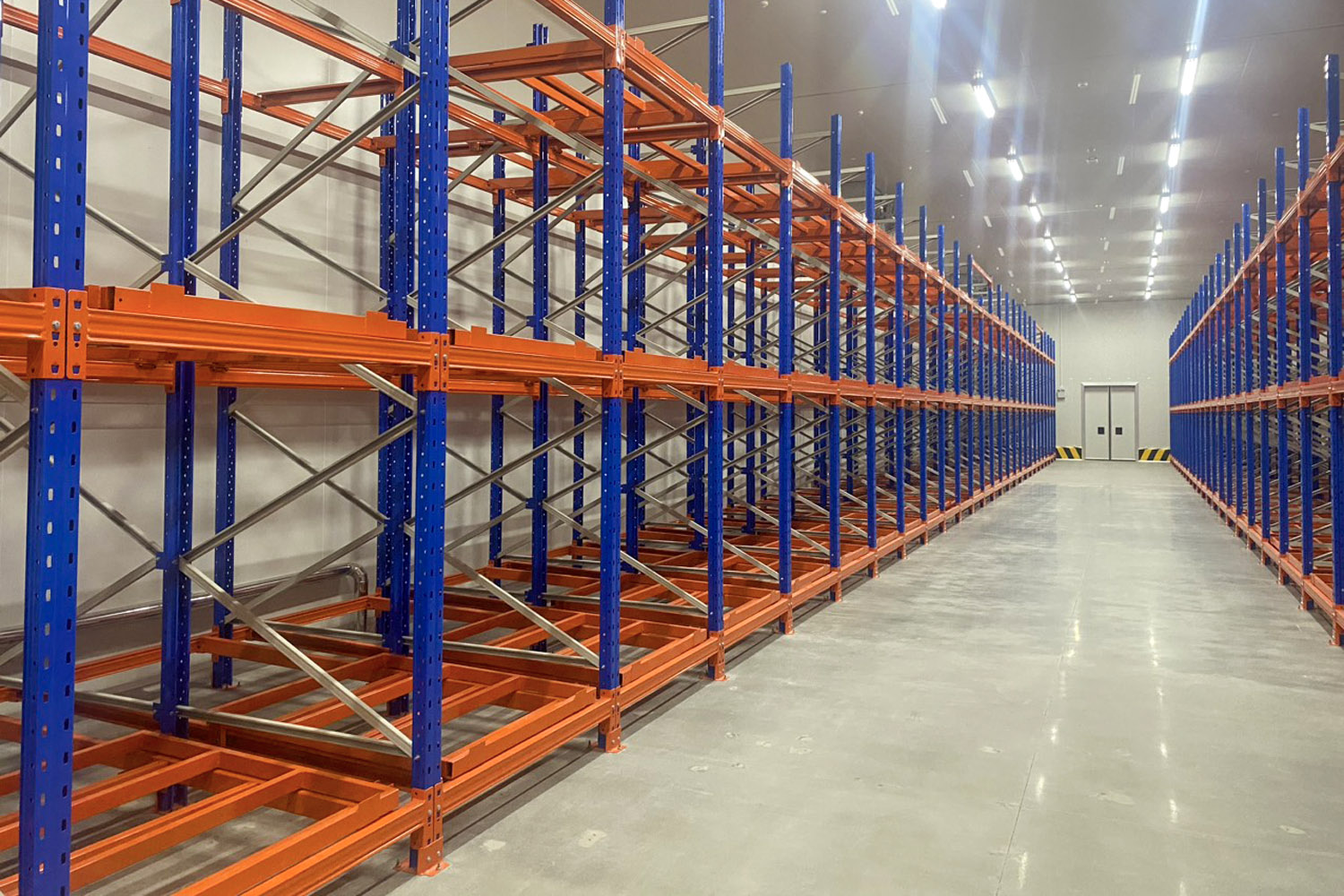

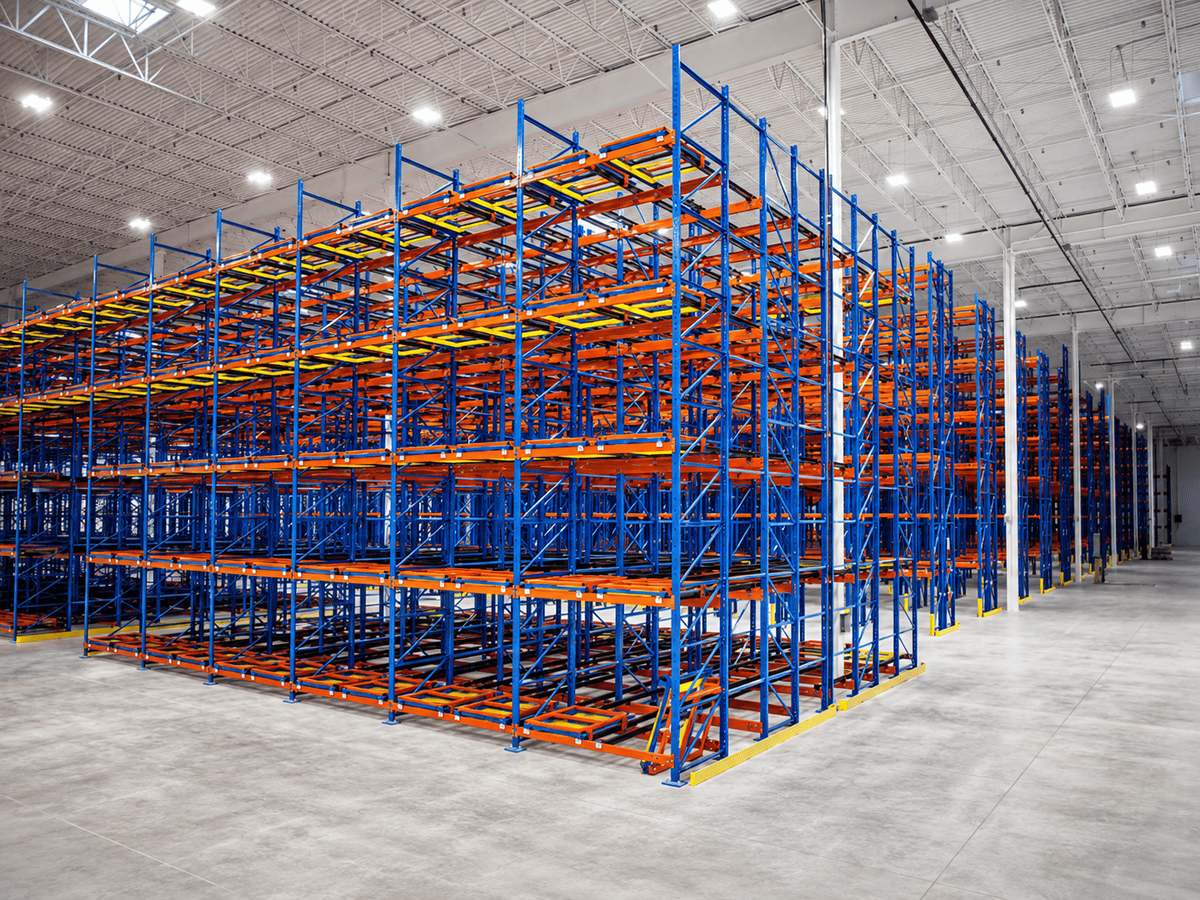

2. 3PL Logistics Warehouse – Push Back Racking
Vinatech implemented a Push Back Racking System for a 9,000 m² 3PL logistics warehouse, featuring multi-deep pallet storage and dedicated lanes for repeated SKUs. The system reduces conventional forklift aisle requirements while supporting efficient pallet loading and retrieval from the same operating aisle.
This project highlights how Push Back Racking optimises warehouse space, increases storage density and supports efficient batch-based inventory management for high-volume logistics operations.
Vinatech Australia: Industrial Warehouse Racking – Warehouse Shelving Solutions
- Website: https://vinatech.com.au/
- Phone number: 0485 083 868
- Email: info@vinatech.com.au
- Address: 34 Paramount Bvd, Cranbourne West VIC 3977, Australia
Push Back Racking is an ideal high-density storage solution for warehouses looking to maximise storage capacity while maintaining efficient pallet handling. Suitable for logistics, manufacturing, cold storage, and distribution operations, push back racking offers an excellent balance between storage density and accessibility. With customised designs, AS4084-compliant systems, and professional installation support, Vinatech Australia delivers reliable Push Back Racking solutions tailored to modern warehouse requirements.
Why Choose Vinatech Australia for Push Back Racking?
Choosing the right Push Back Racking System requires more than maximising warehouse storage capacity. An effective solution should provide direct pallet access, efficient inventory management, safe forklift operations and flexibility for future expansion.
Vinatech Australia delivers customised push back racking solutions designed to optimise warehouse space, streamline pallet handling and support long-term operational efficiency.
- End-to-end project solutions: Comprehensive support from warehouse assessment, racking design and manufacturing to professional installation and after-sales service.
- 100% direct pallet accessibility: Push back racking provides individual access to every pallet, enabling efficient stock picking, loading and retrieval without moving other pallets.
- Optimised warehouse layouts: Customised configurations maximise vertical storage space while maintaining appropriate aisle widths and forklift accessibility.
- Designed to Australian standards: Racking systems are designed in accordance with AS 4084:2023 requirements.
- Customised load configurations: Rack dimensions, beam levels and load capacities are tailored to pallet sizes, inventory requirements and warehouse operations.
- 2D and 3D warehouse designs: Detailed layouts help customers evaluate pallet capacity, aisle arrangements and material handling workflows before installation.
- Factory-direct manufacturing: Direct manufacturing supports competitive pricing, consistent product quality and flexible racking configurations.
- Flexible and scalable storage: Adjustable beam levels and modular designs accommodate changing inventory volumes, different pallet sizes and future warehouse expansion.
- Versatile industry applications: Suitable for logistics, FMCG distribution, manufacturing, retail, food and beverage storage, and e-commerce fulfilment.
- Australian-based support: Vinatech Australia provides local project coordination and after-sales assistance from 34 Paramount Blvd, Cranbourne West VIC 3977.
With extensive experience in warehouse storage solutions, Vinatech Australia provides push back racking systems that maximise space utilisation, ensure direct pallet accessibility and support efficient, scalable warehouse operations.
FAQ About Push Back Racking
Push back racking is a high-density storage system that uses inclined rails and nested carts to store pallets multiple positions deep. Pallets are pushed back as new ones are loaded.
Push back racking works by placing pallets on carts that move along inclined rails. When a new pallet is loaded, it pushes the previous pallets backward, and when a pallet is removed, the others move forward automatically.
Push back racking increases storage density, reduces aisle space, improves warehouse organisation, and enhances picking efficiency for medium to high-volume operations.
Push back racking operates on a LIFO basis using carts, while pallet flow racking uses gravity rollers and supports FIFO, making them suitable for different inventory strategies.
Yes, push back racking is designed for LIFO storage, where the last pallet loaded is the first pallet retrieved.
