What Is a 4-Way Shuttle System?
A 4-Way Shuttle System is an advanced automated storage and retrieval solution that uses intelligent robotic shuttles to transport pallets or containers in four directions—forward, backward, left, and right—within a high-density racking structure. Unlike conventional shuttle systems that operate along a single track, 4-way shuttles can travel across both horizontal axes, enabling flexible movement throughout the storage grid.
When integrated with vertical lifts or hoists, the system achieves fully automated three-dimensional movement, allowing inventory to be stored and retrieved from virtually any location within the warehouse without forklift intervention. This capability maximises storage density, improves throughput, and enhances inventory accuracy.
CONSULTATION ON 4-WAY SHUTTLE FOR YOUR WAREHOUSE
Call: 0485 083 868 Get In Touch
How Does a 4-Way Shuttle System Work?
A 4-way shuttle is an autonomous, battery-powered robotic vehicle designed for high-density warehouse storage and retrieval operations. Operating within a specialised racking system, it travels along an interconnected rail network to transport, store, and retrieve pallets automatically. By eliminating the need for forklifts inside storage aisles, the system significantly increases storage density, improves operational efficiency, and enhances warehouse throughput.
- Grid-Based Navigation: The shuttle is equipped with a multi-directional wheel system that enables movement in four directions—forward, backward, left, and right. This allows the robot to travel across intersecting rail tracks and switch between storage lanes without manual intervention, providing maximum flexibility within the racking structure.

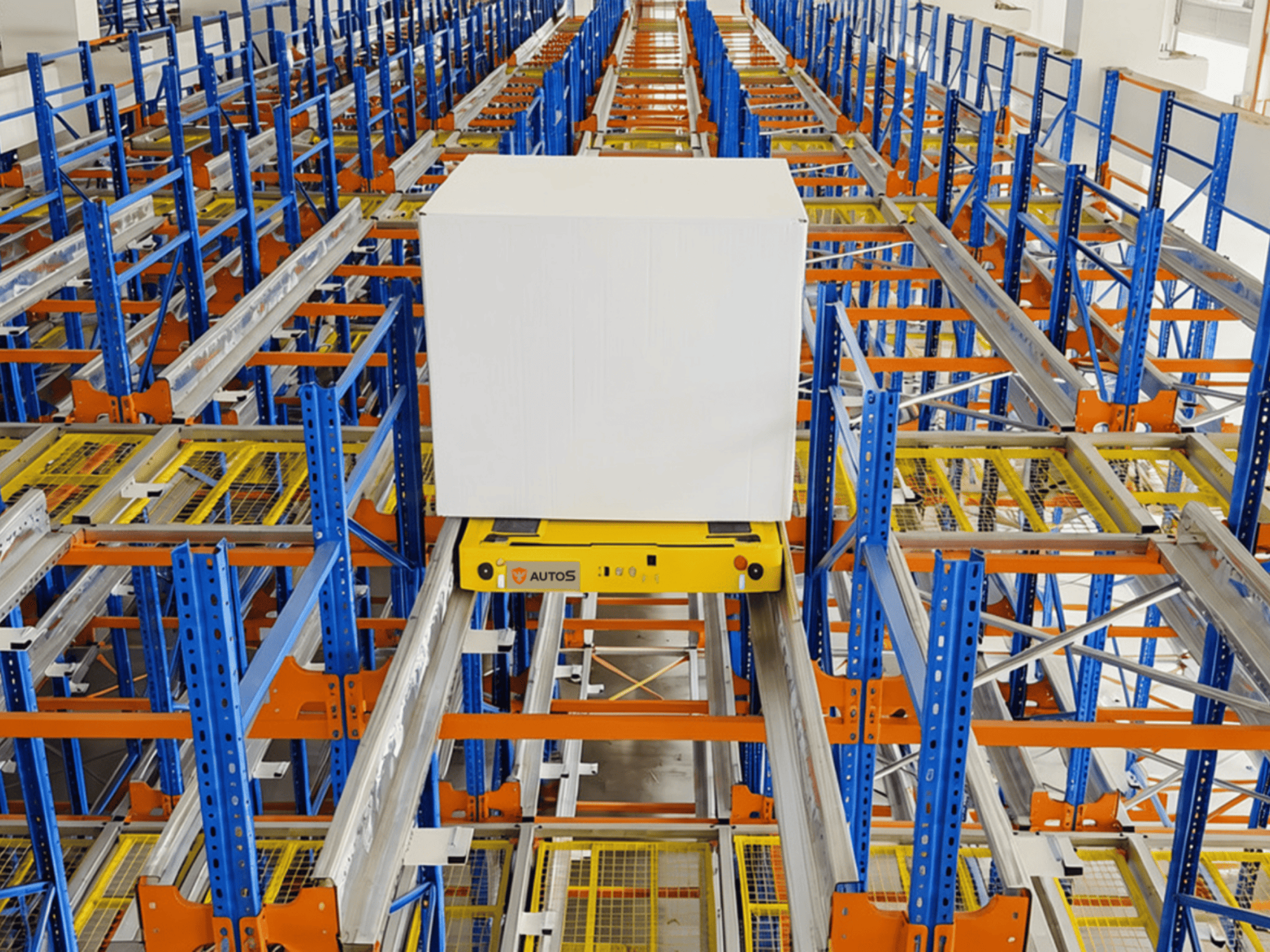

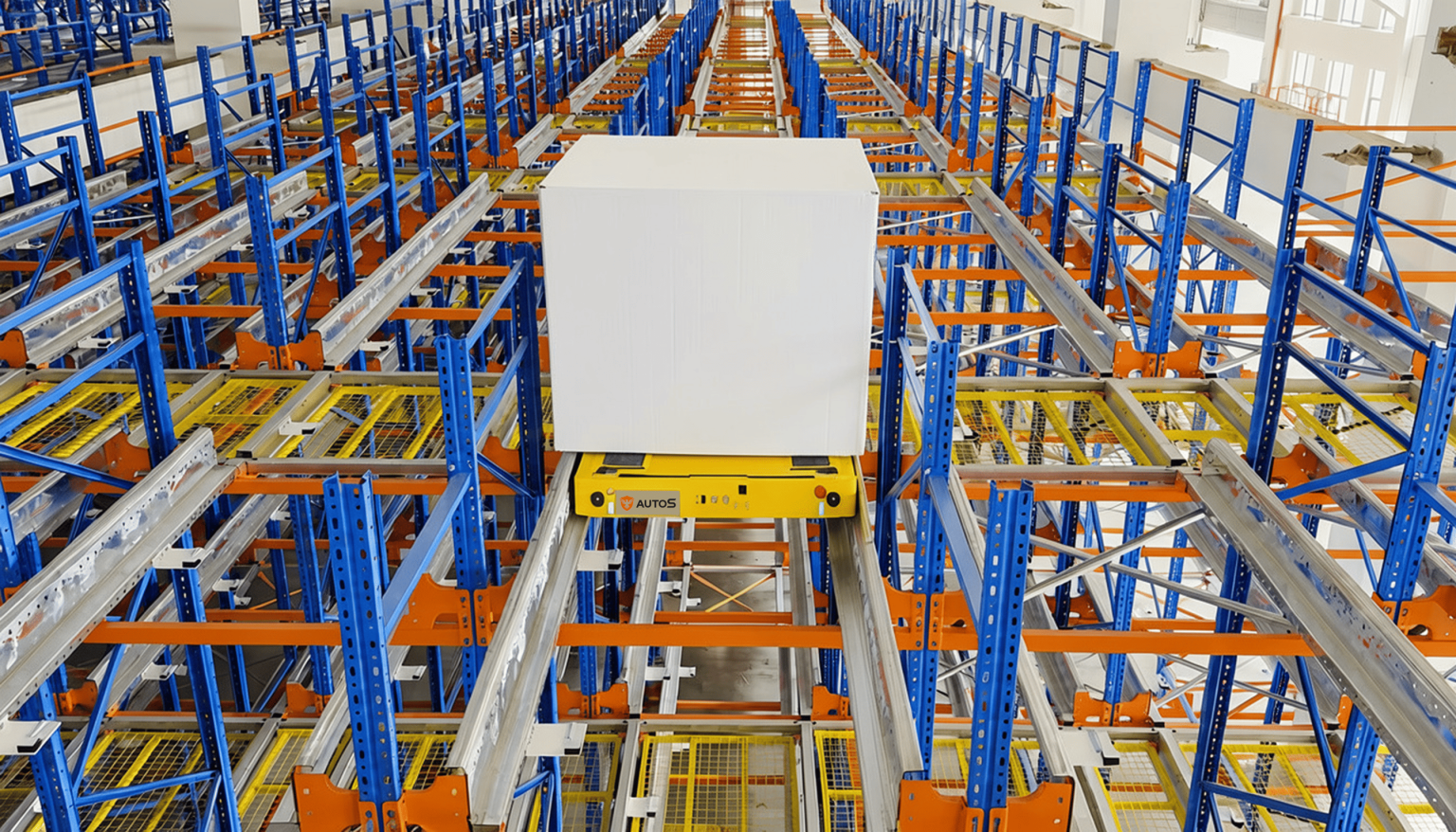

- Pallet Storage and Retrieval: During operation, the shuttle moves beneath a pallet, lifts it slightly, and transports it to the assigned storage location. It can travel both along storage channels and across aisles, enabling efficient pallet handling throughout the warehouse.

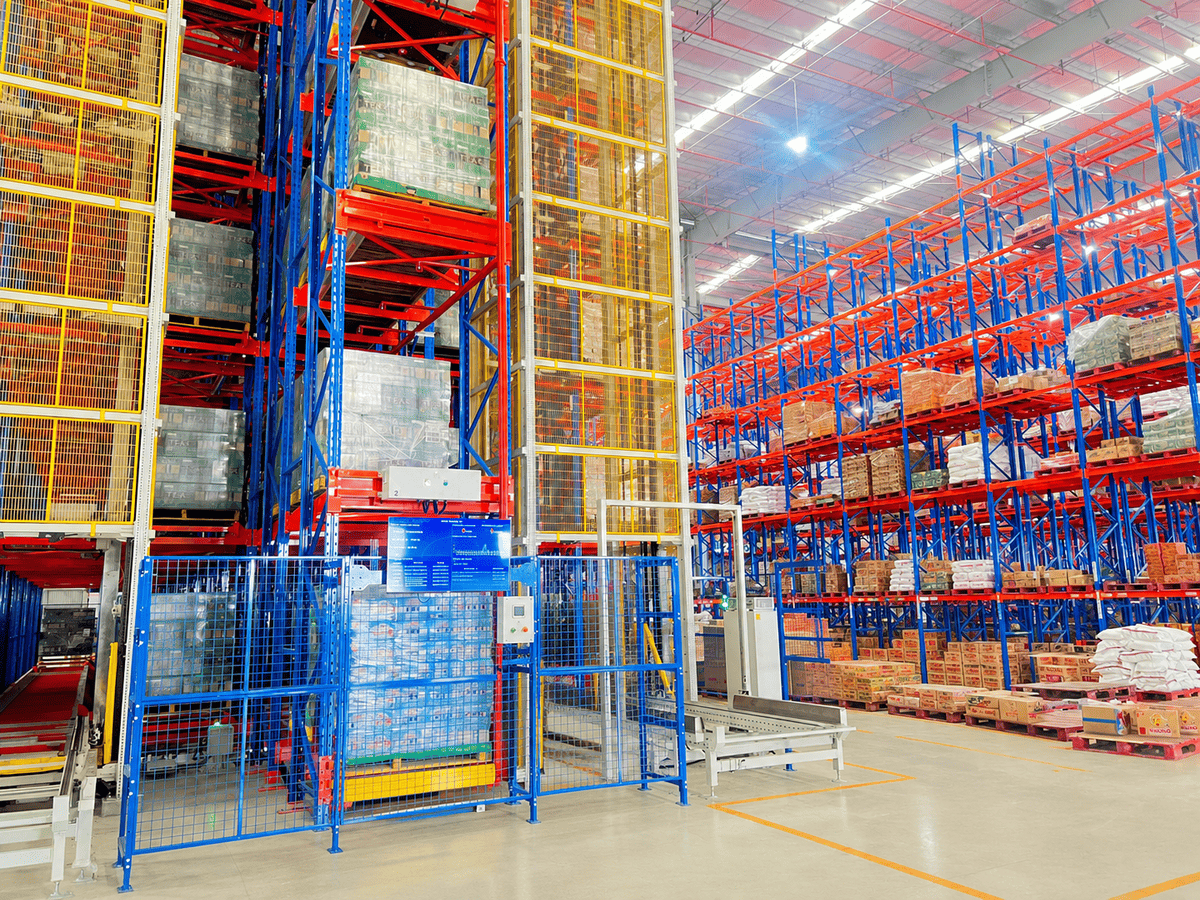

- Vertical Movement: Since each shuttle typically operates on a single storage level, automated vertical lifts are used to transfer pallets and shuttles between different rack levels. This integration enables seamless three-dimensional movement and maximises the use of available warehouse height.
- Intelligent Software Control: All shuttle movements are coordinated by integrated software platforms such as a Warehouse Management System (WMS) and Warehouse Control System (WCS). These systems optimise travel routes, manage inventory locations, balance workloads across multiple shuttles, and ensure safe, collision-free operation.
By combining autonomous robotics, vertical lifts, and intelligent software, 4-way shuttle systems deliver a highly efficient, scalable, and fully automated solution for modern warehouse operations.
>> Read more:
- ASRS System – Automated Storage and Retrieval Solutions
- Mobile Racking System
Overview of a 4-Way Shuttle System
A 4-way shuttle system is an advanced automated storage and retrieval technology (AS/RS) designed to move in all four horizontal directions forward, backward, left, and right while integrating with vertical elevators for multi-level travel. This innovation transforms modern warehousing by significantly increasing storage density, improving throughput, and enabling highly flexible and scalable warehouse design.
Key Operational Benefits of a 4-Way Shuttle System
- Maximised Storage Density: By eliminating wide forklift aisles, 4-way shuttle systems enable high-density, multi-deep racking configurations. This can increase storage capacity by up to 65% or more within the same warehouse footprint.
- High-Volume Throughput: Multiple shuttles can operate simultaneously on the same level, significantly increasing inbound and outbound processing speeds. This makes the system highly suitable for e-commerce, retail distribution, and high-demand logistics operations.
- Improved Inventory Accuracy: Integration with Warehouse Execution Systems (WES) and Warehouse Management Systems (WMS) ensures real-time inventory tracking, reduced human error, and efficient stock rotation using FIFO or LIFO strategies.
- Optimised Labour Costs: Automation of put-away, retrieval, and internal transport reduces reliance on forklift operations, allowing labour resources to be redirected toward higher-value tasks.
- Superior Scalability: The system can be easily expanded by adding more shuttles or extending racking structures without interrupting ongoing warehouse operations, making it highly adaptable to business growth.
- High Reliability and Resilience: Because the system operates as a fleet of independent shuttles, the failure of a single unit does not halt overall operations, ensuring continuous warehouse functionality.
- Cold Storage Capability: 4-way shuttle systems can be customised for extreme environments, including sub-zero cold storage facilities, making them ideal for food, beverage, and pharmaceutical logistics.
Deep-lane storage, multi-directional movement, and precise pallet contro>> Read more:
Components of a 4-Way Shuttle System
A 4-Way Shuttle System is a high-density automated storage and retrieval solution that combines autonomous robotic shuttles, specialised racking, vertical lifts, and intelligent software to automate pallet storage and retrieval. The system is designed to maximise warehouse capacity, improve throughput, and reduce manual handling by eliminating the need for traditional forklift aisles.
Core Hardware Components

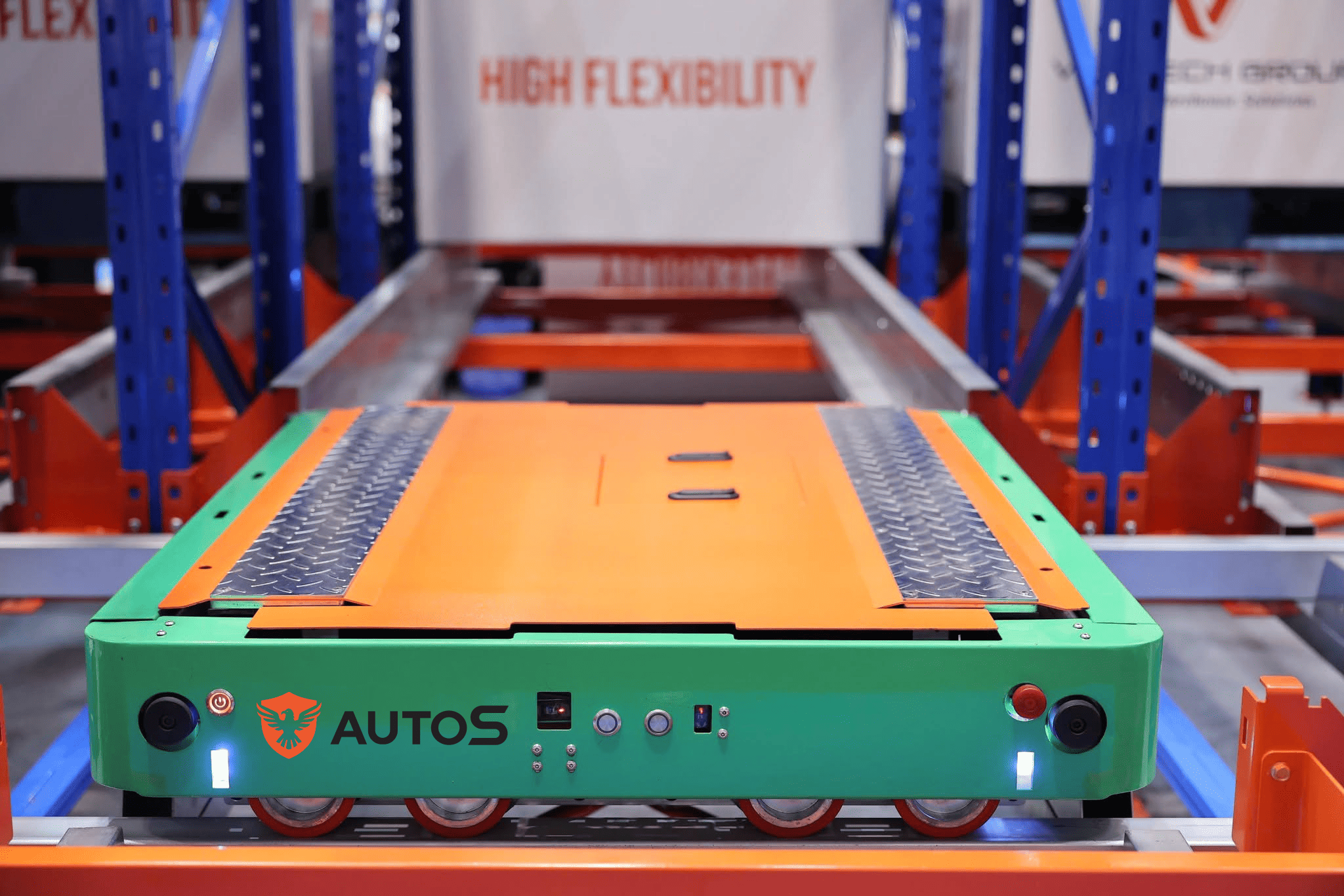

- 4-Way Shuttle Vehicle: The 4-way shuttle is an intelligent, battery-powered robot that travels along the rail network to transport pallets throughout the racking system. Equipped with an integrated lifting mechanism, it can automatically pick up, carry, and place pallets at designated storage locations.

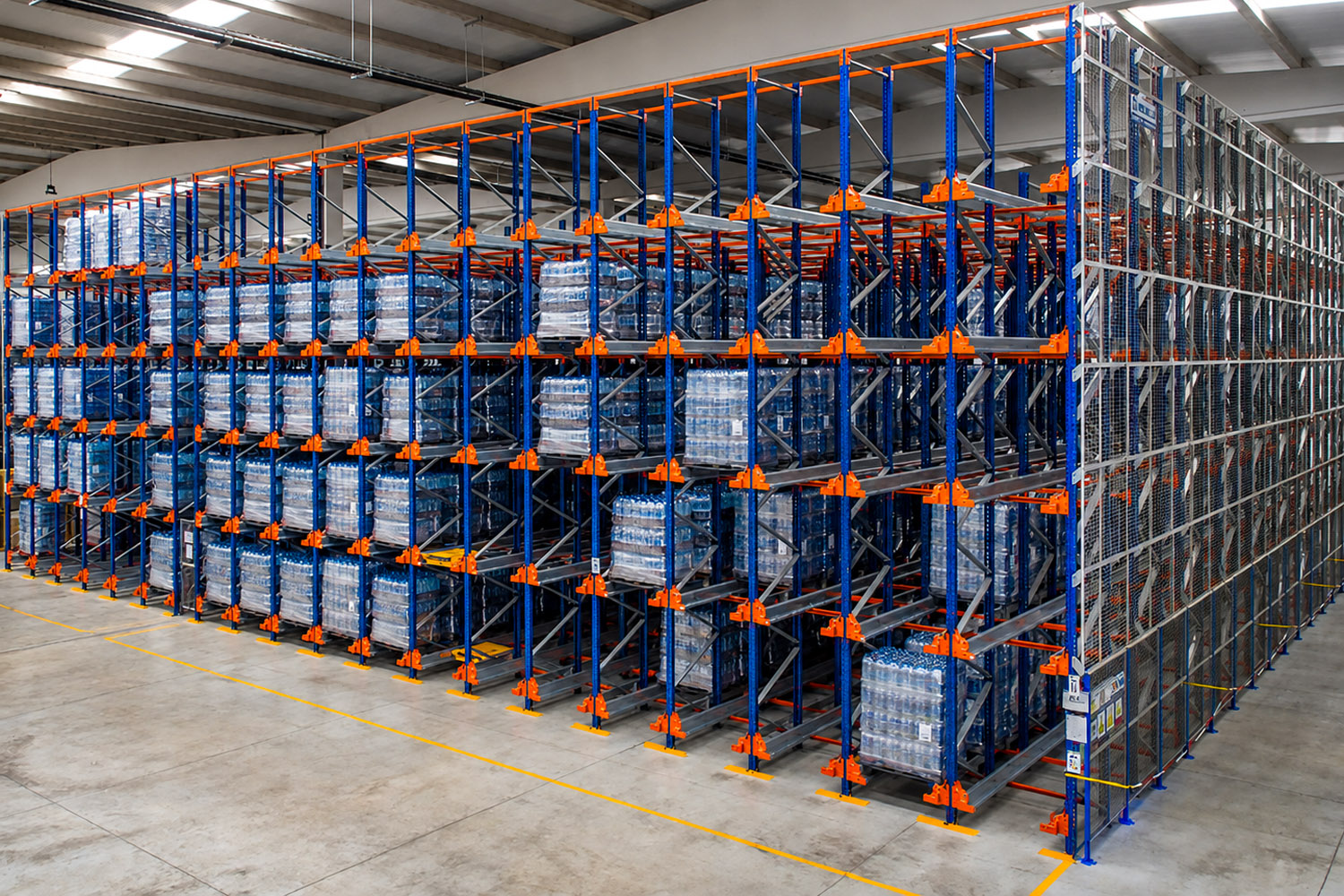

- High-Density Racking System: The racking structure is specifically designed with bidirectional guide rails that allow shuttle movement in both longitudinal and lateral directions. This configuration enables high-density, multi-deep pallet storage while maximising warehouse space utilisation.

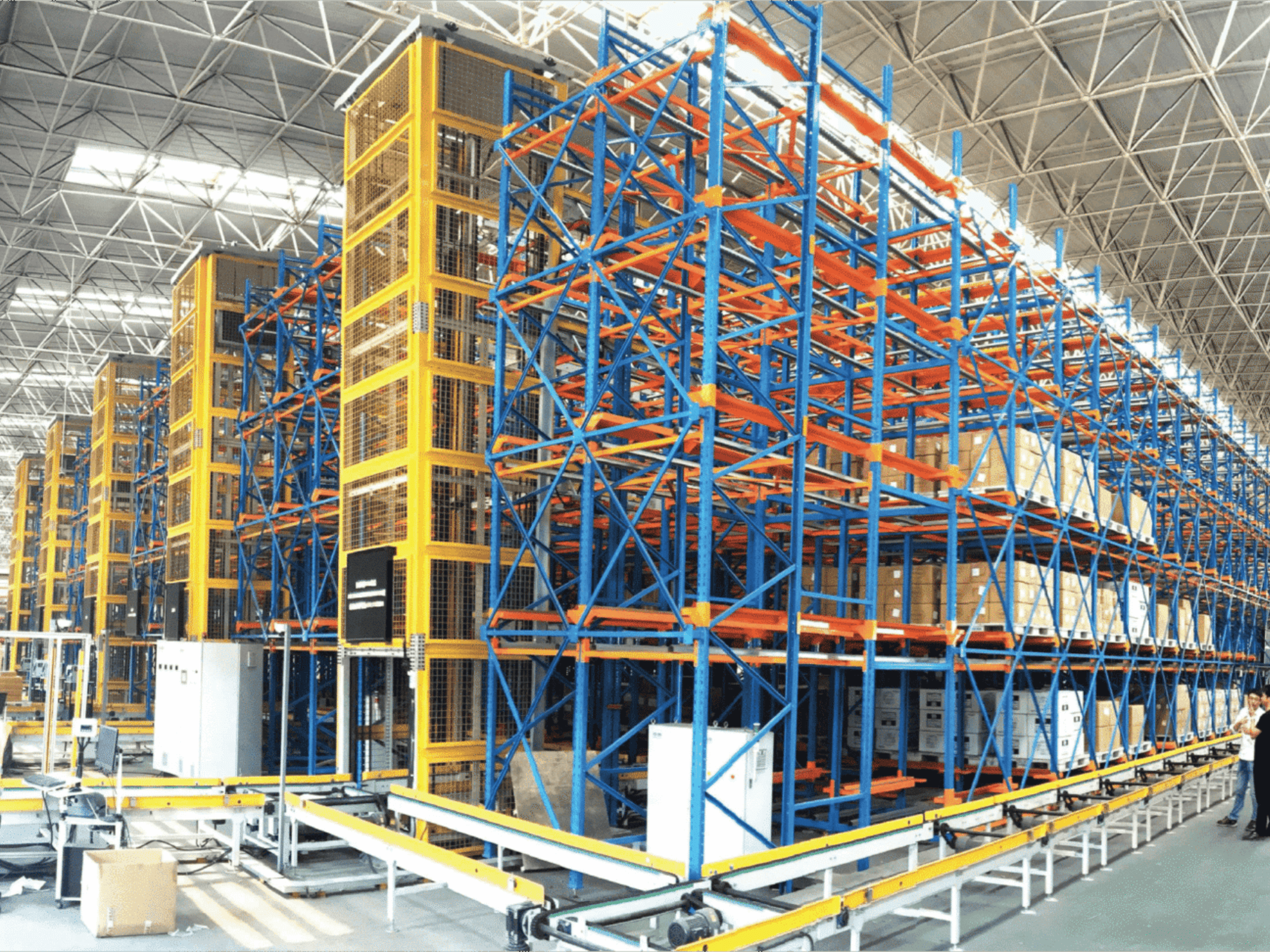

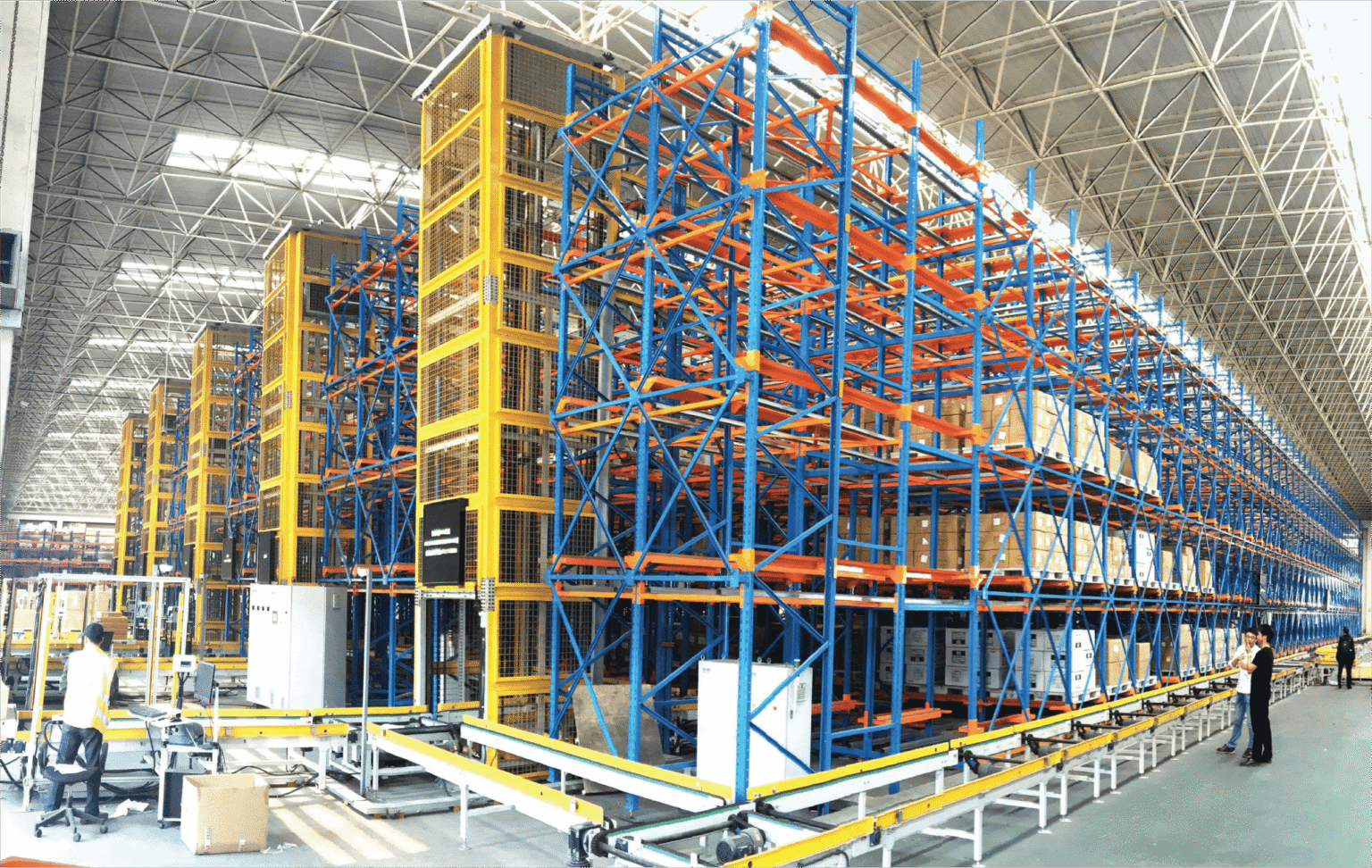

- Vertical Lifts: Automated lifts or elevators transfer pallets and shuttle vehicles between different storage levels. These lifts enable seamless three-dimensional movement and allow the system to fully utilise available warehouse height.
- Conveyor and Transfer Systems: Conveyors and transfer cars connect inbound and outbound warehouse operations with the shuttle system. They transport pallets between receiving, storage, picking, and shipping areas, ensuring a continuous material flow.
Control and Software Components
- Warehouse Management System (WMS): The WMS manages inventory records, storage locations, order processing, and warehouse operations. It determines where products should be stored and when they should be retrieved.
- Warehouse Control System (WCS): The WCS acts as the communication layer between the WMS and the physical equipment. It coordinates shuttle movements, assigns tasks, optimises travel routes, and ensures efficient system performance in real time.
- Power Supply System: Most 4-way shuttles are powered by high-performance lithium-ion batteries. Automated charging stations help maintain continuous operation while minimising downtime.
- Sensors and Navigation Technology: Advanced sensors, positioning systems, LiDAR technology, and rail-based identification systems enable precise navigation, pallet tracking, obstacle detection, and collision avoidance. These technologies ensure safe and accurate operation throughout the warehouse.
By integrating advanced robotics, intelligent software, and high-density storage infrastructure, 4-way shuttle systems provide a flexible, scalable, and highly efficient solution for modern automated warehouses.
Real-World 4-Way Shuttle Projects by Vinatech
Vinatech has implemented automated warehouse solutions across different industries, demonstrating how 4-way shuttle systems can maximise storage capacity, optimise warehouse space and reduce manual pallet handling.
Case Study 1 – 4-Way Shuttle System for Retail Distribution
For a large-scale retail distribution centre, Vinatech implemented a 4-Way Shuttle Racking System accommodating 46,500 pallet positions within a 13,950 m² warehouse. The system maximises the facility’s 22-metre height across 8 storage levels, achieving approximately 3,333 pallet positions per 1,000 m².
By reducing conventional forklift aisles and automating internal pallet movements, the solution supports high-density storage, more efficient pallet handling and greater flexibility during seasonal demand peaks.
View Retail Distribution Case Study
Case Study 2 – Automated Pharmaceutical Warehouse with 4-Way Shuttle System
Vinatech implemented a 4-Way Shuttle System for a pharmaceutical warehouse, providing 7,200 pallet positions within 2,200 m², achieving a storage density of approximately 3,273 pallet positions per 1,000 m².
The automated solution maximises storage capacity, reduces forklift aisle requirements and streamlines pallet handling. This project demonstrates how 4-way shuttle technology supports high-density storage, efficient warehouse operations and scalable pharmaceutical inventory management.
View Pharmaceutical Warehouse Case Study
Why Choose Vinatech Australia for 4-Way Shuttle Racking Systems?
Choosing the right 4-way shuttle racking system requires more than maximising pallet capacity. An effective solution should combine high-density storage, intelligent automation, efficient pallet handling and long-term operational flexibility.
Vinatech Australia provides customised 4-way shuttle racking solutions designed to optimise warehouse space and improve storage efficiency.
- End-to-end project solutions: Comprehensive support from warehouse assessment, system design and manufacturing to installation and after-sales service.
- High-density storage optimisation: Advanced 4-way shuttle technology maximises pallet capacity by reducing conventional forklift aisles and utilising available warehouse space.
- Intelligent warehouse automation: Automated shuttle robots move in four directions, enabling efficient pallet storage and retrieval with reduced manual handling.
- Customised system design: Solutions are tailored to warehouse dimensions, pallet specifications, storage requirements and operational workflows.
- Designed to Australian standards: Racking structures are designed in accordance with AS 4084:2023 requirements.
- 2D and 3D warehouse layouts: Detailed visualisations help customers evaluate storage capacity, shuttle movement and warehouse configurations before implementation.
- Warehouse management integration: Systems can integrate with warehouse management software (WMS) to support inventory tracking, stock rotation and automated storage operations.
- Factory-direct manufacturing: Direct manufacturing supports competitive project costs, consistent product quality and flexible system configurations.
- Scalable automation solutions: Modular configurations can accommodate future storage expansion and changing warehouse requirements.
- Australian-based support: Vinatech Australia provides local project coordination and after-sales assistance from 34 Paramount Blvd, Cranbourne West VIC 3977.
With expertise in high-density racking and warehouse automation, Vinatech Australia delivers 4-way shuttle systems that maximise storage capacity, streamline pallet handling and support long-term warehouse efficiency.
