Pallet Racking Installation for Your Warehouse

Vinatech AU provides pallet racking installation services for warehouse storage projects. From layout assessment and installation planning to rack assembly, floor anchoring and final checks, each project follows the approved configuration and site requirements. Share your warehouse plans and storage needs to request an installation quote.

Installed to the approved design
Anchoring, locks & load signage
Final inspection before loading
After-sales support
Get an installation quote Call 0485 083 868
Pallet Racking Installation
Pallet Racking Installation

WHY PROFESSIONAL INSTALLATION

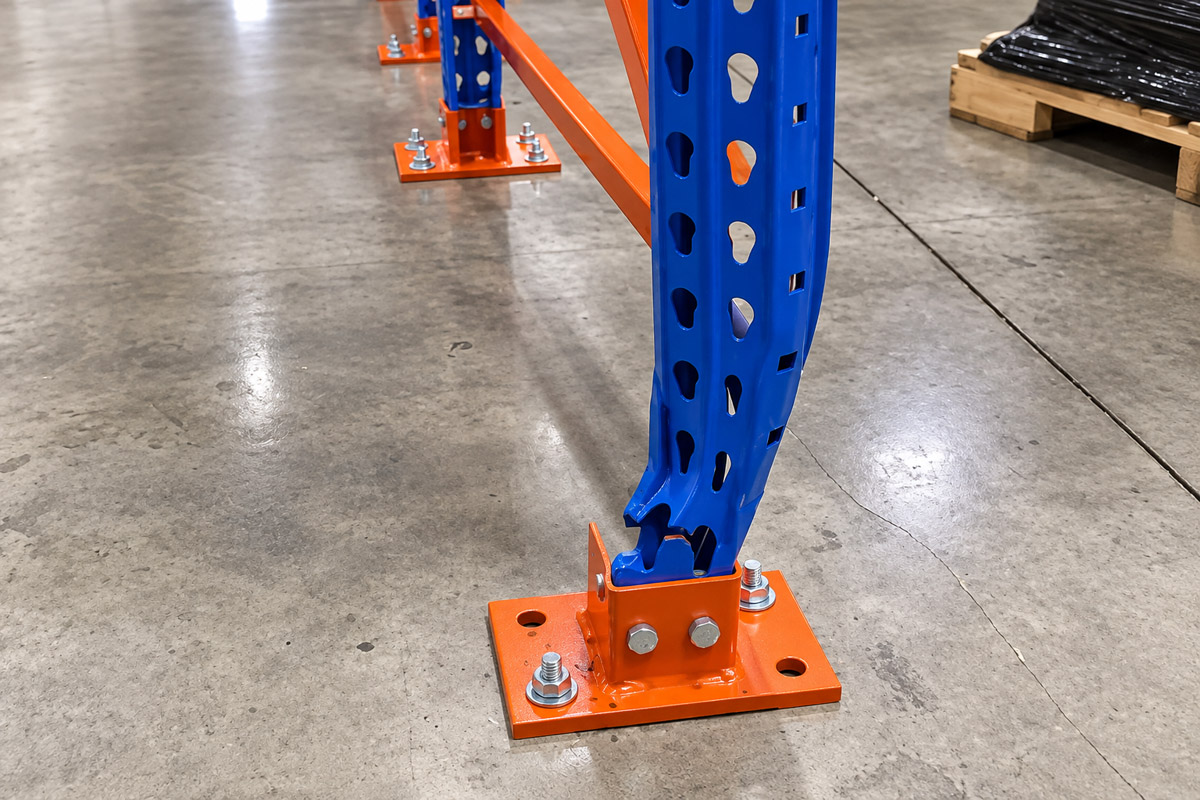

Small pallet racking installation errors become big problems once racks are loaded

Racking carries substantial loads alongside forklifts and people every day. A misplaced upright, a poorly secured anchor or an incorrectly installed beam can affect the stability of the entire system.

Rack alignment

Uprights plumb, rows straight, aisles to spec

Beam levels

Set to the approved design and locked in

Floor anchoring

Baseplates fixed with suitable anchors

Locks & load signage

In place before the system goes live

HOW WE INSTALL

Our pallet racking installation process

The exact process varies with the racking type, layout and project scale, but every Vinatech installation follows the same core stages.

1

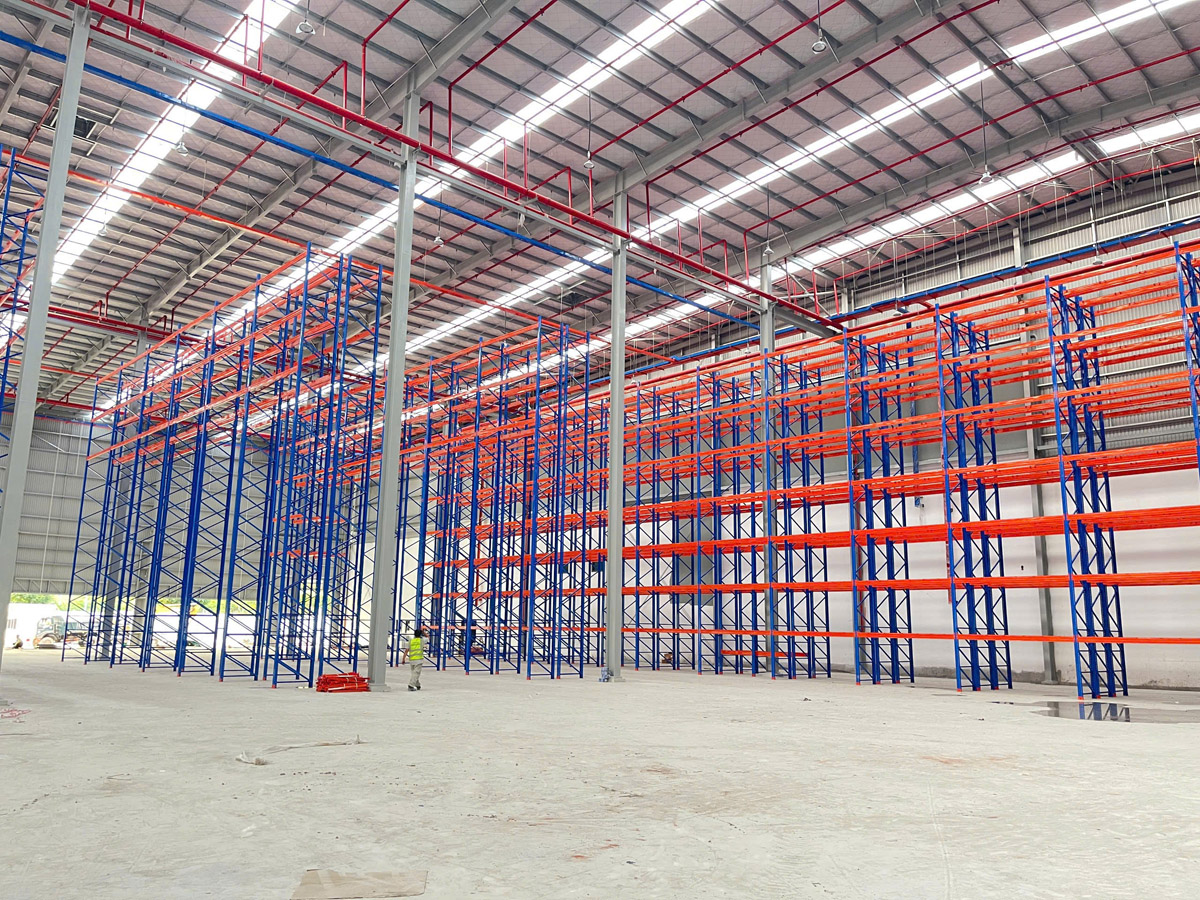

Warehouse assessment

Floor area, clear height, columns, access points, pallet sizes, load weights, forklift type and material flow.

2
Racking layout & design

Rows, bay dimensions, beam levels and aisle widths planned around pallet loads and forklift movements.

3

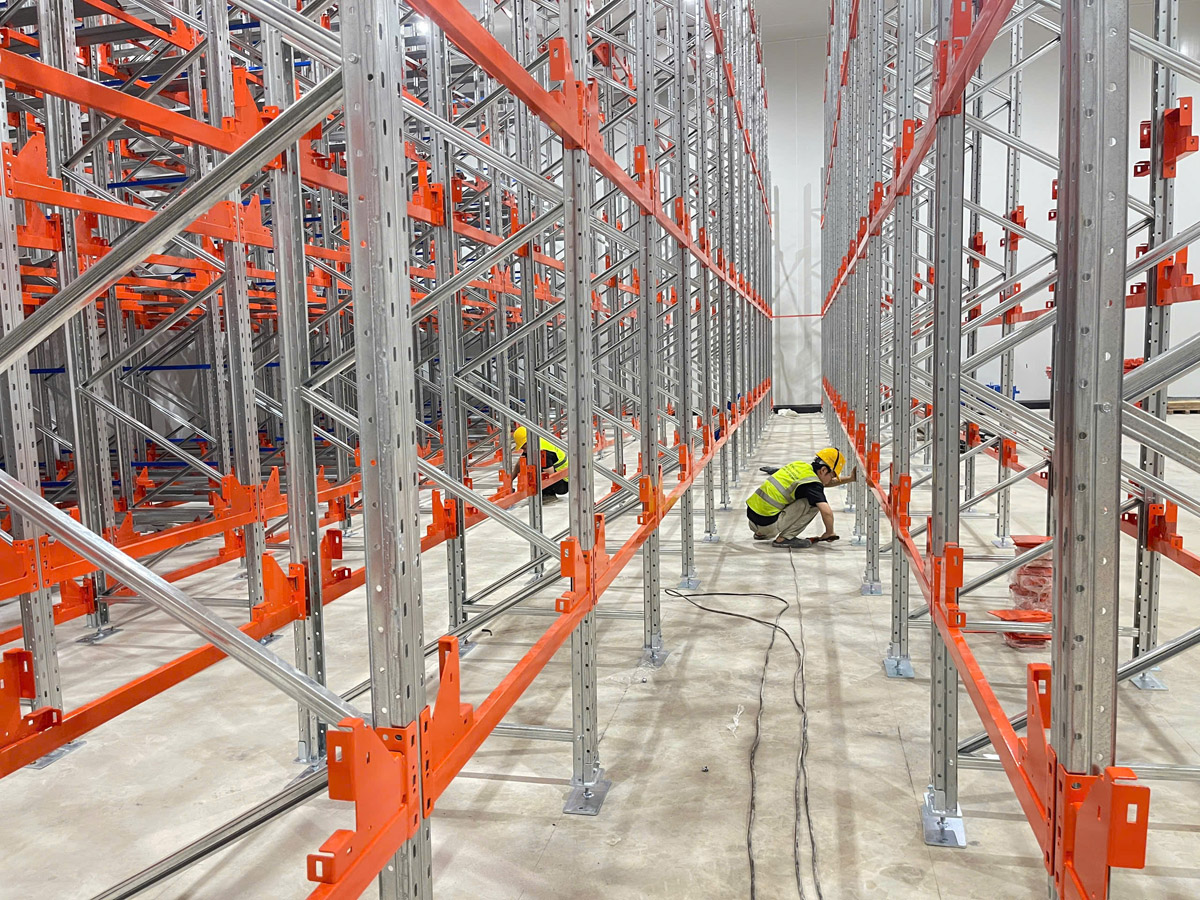

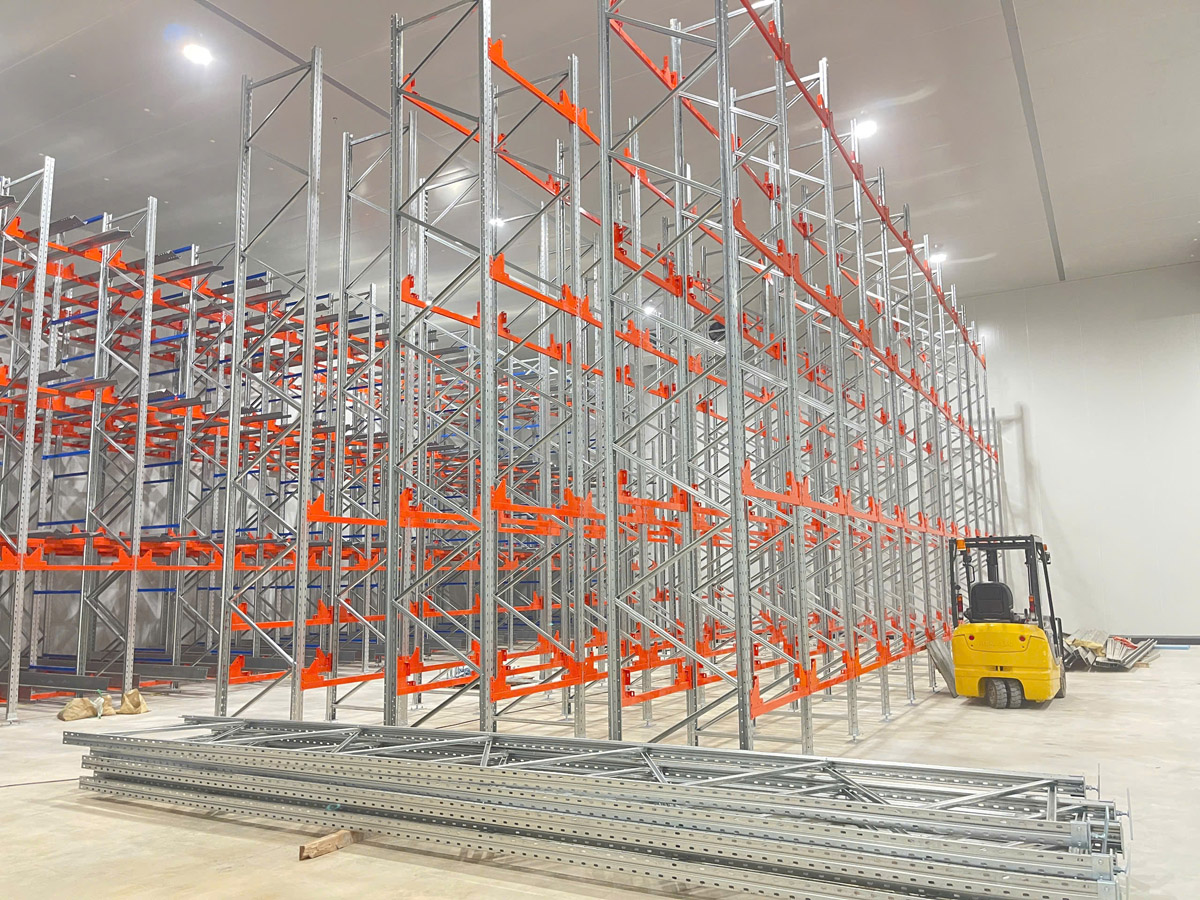

Floor & site preparation

Area cleared, rack positions marked accurately, floor, walls, columns and services checked.

4

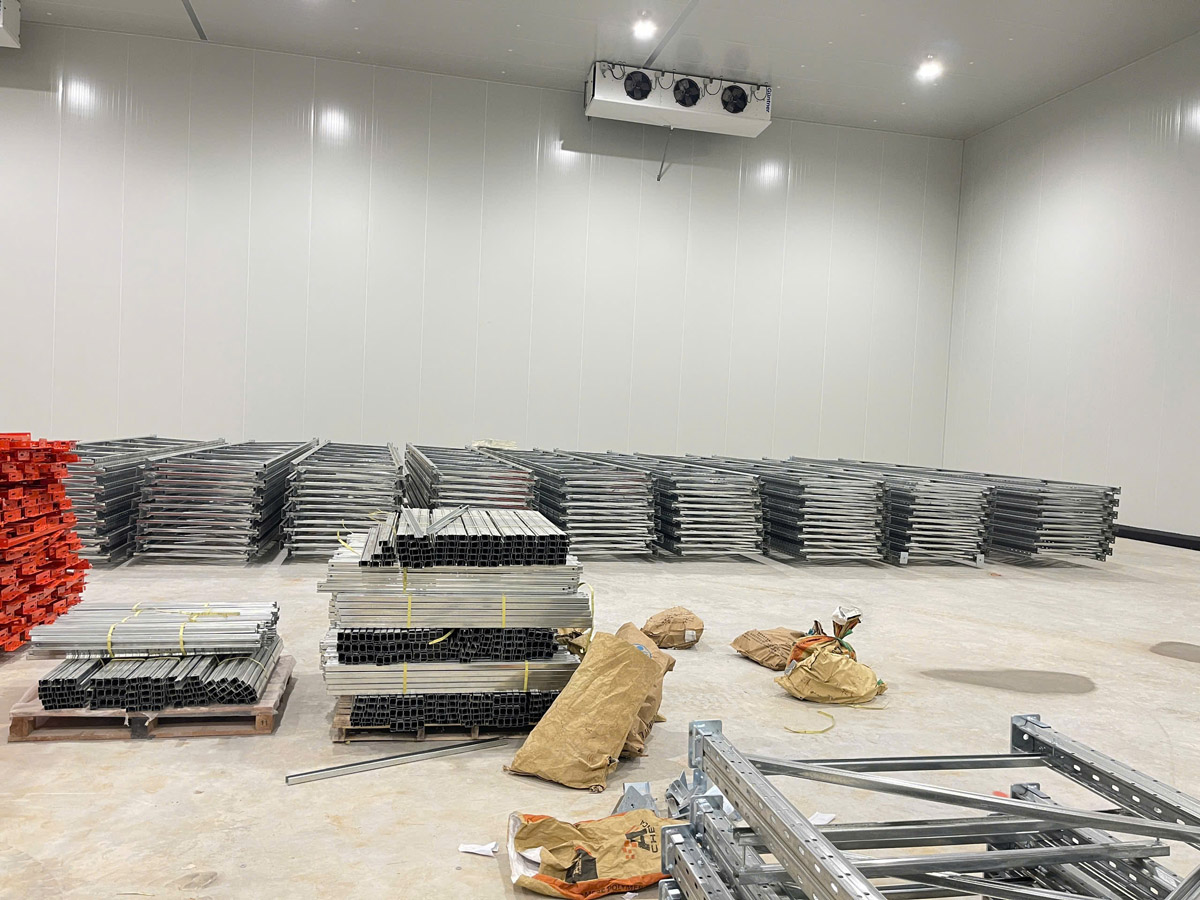

Frame & beam installation

Bays built progressively, checking verticality, beam levels, safety locks and bay positions, then anchored.

5

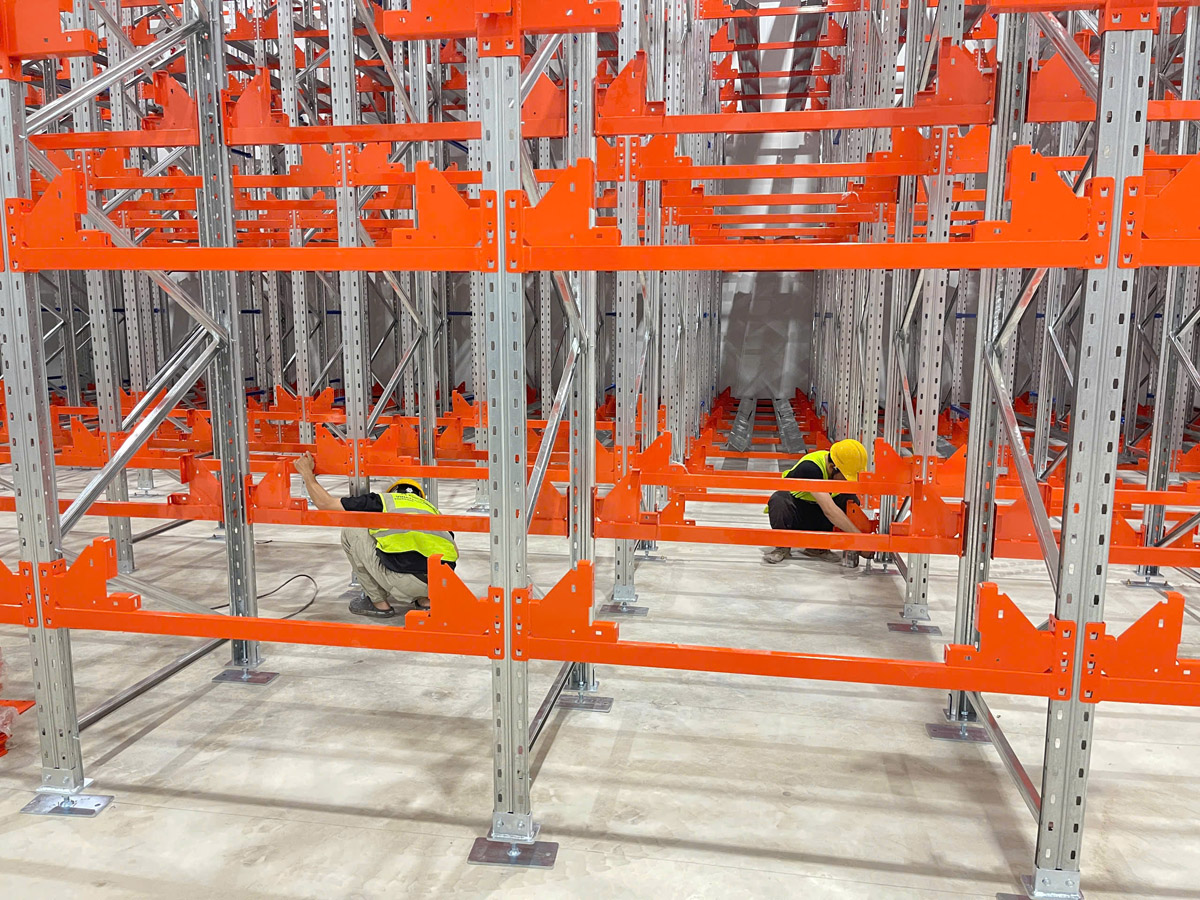

Safety components

Upright protectors, end-of-row barriers, row spacers, pallet supports, mesh decking and load signage.

6

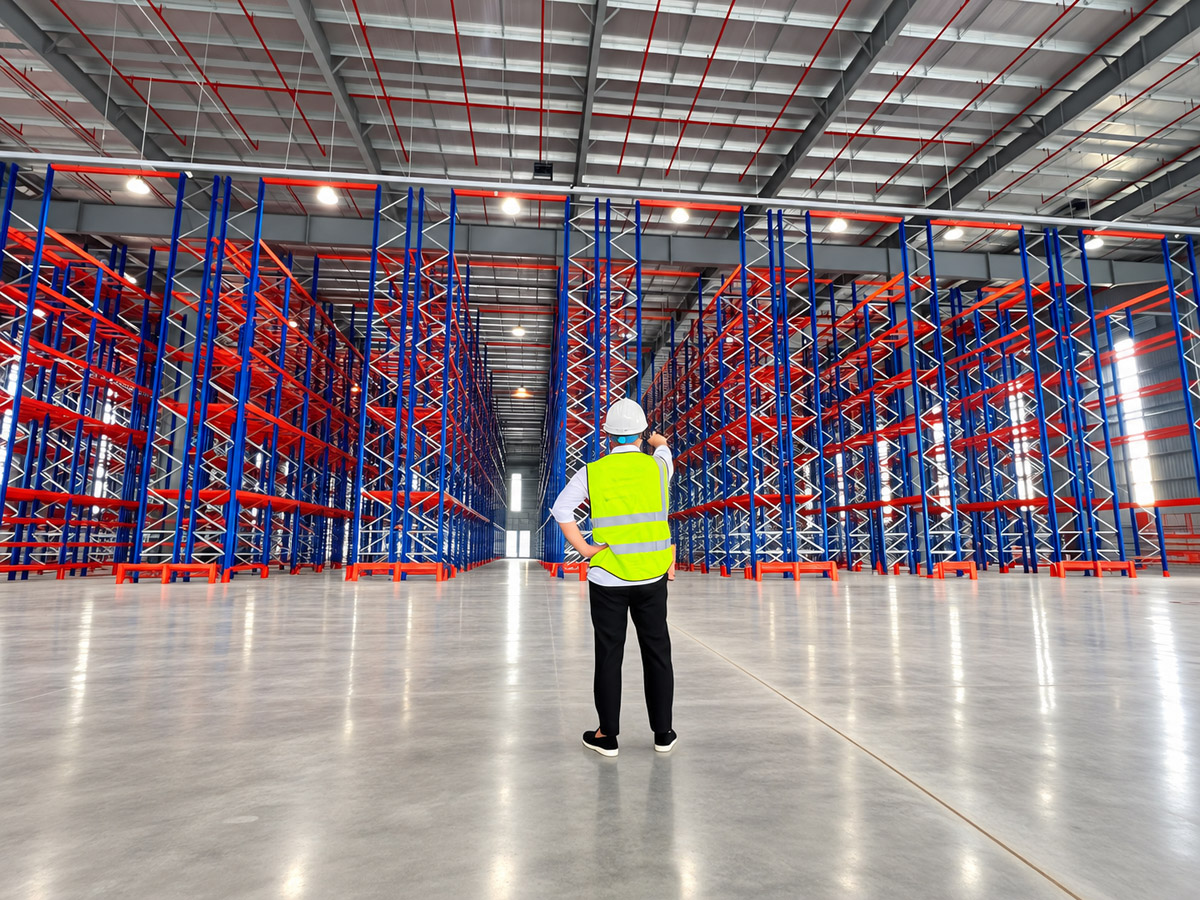

Final inspection

Alignment, anchoring, beams, locks, accessories and signage checked. Issues fixed before loading begins.

BEFORE WE ARRIVE

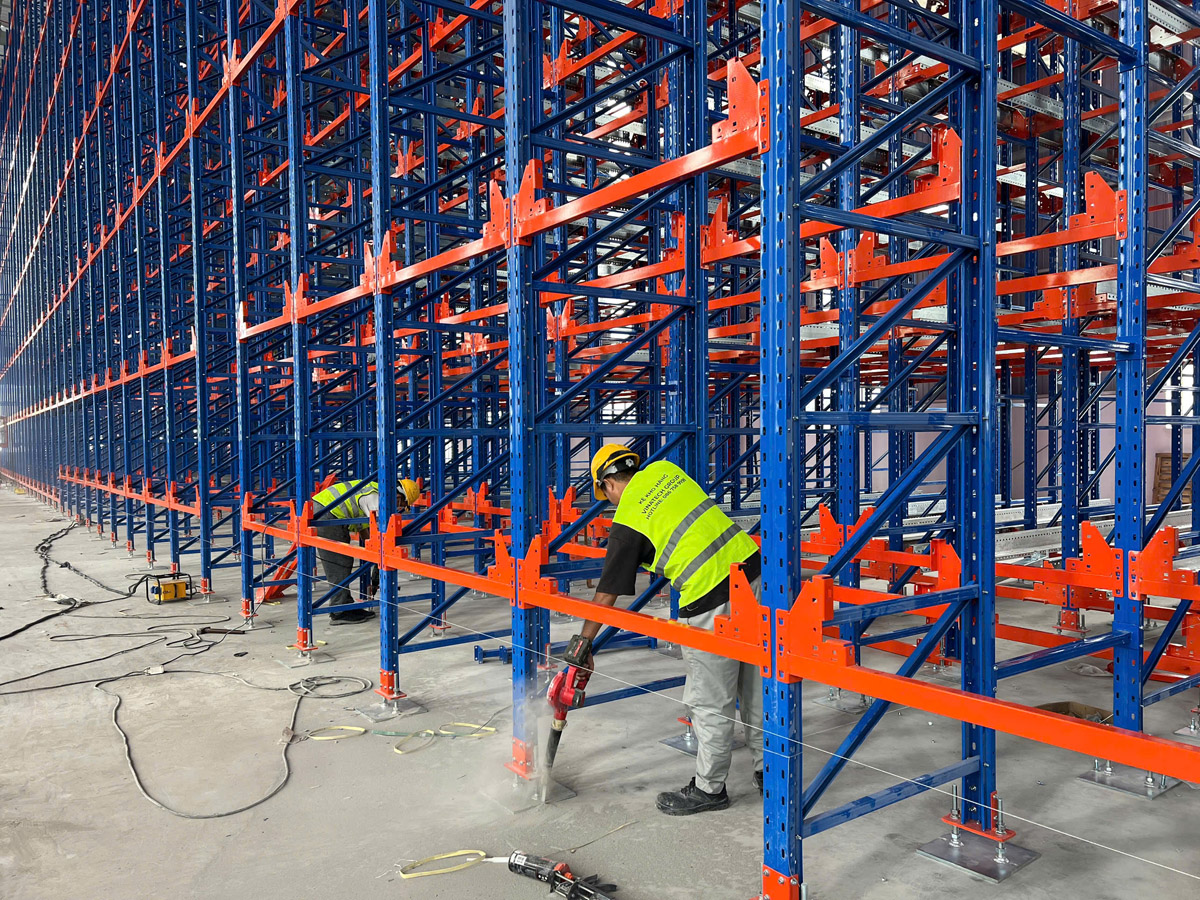

Is your warehouse ready for racking installation?

Good installation starts before the first upright is lifted. These are the points we confirm with you during the site assessment.

Components are also checked against the approved design, and tools (laser levels, drills, torque tools, lifting equipment) prepared before assembly.
✓Warehouse dimensions and clear height
✓Floor condition and anchoring suitability
✓Columns, walls and structural obstructions
✓Fire equipment, doors and emergency exits
✓Forklift routes and aisle widths
✓Lighting, pipes and overhead services
✓Proposed rack positions marked on the floor

AUSTRALIAN REQUIREMENTS

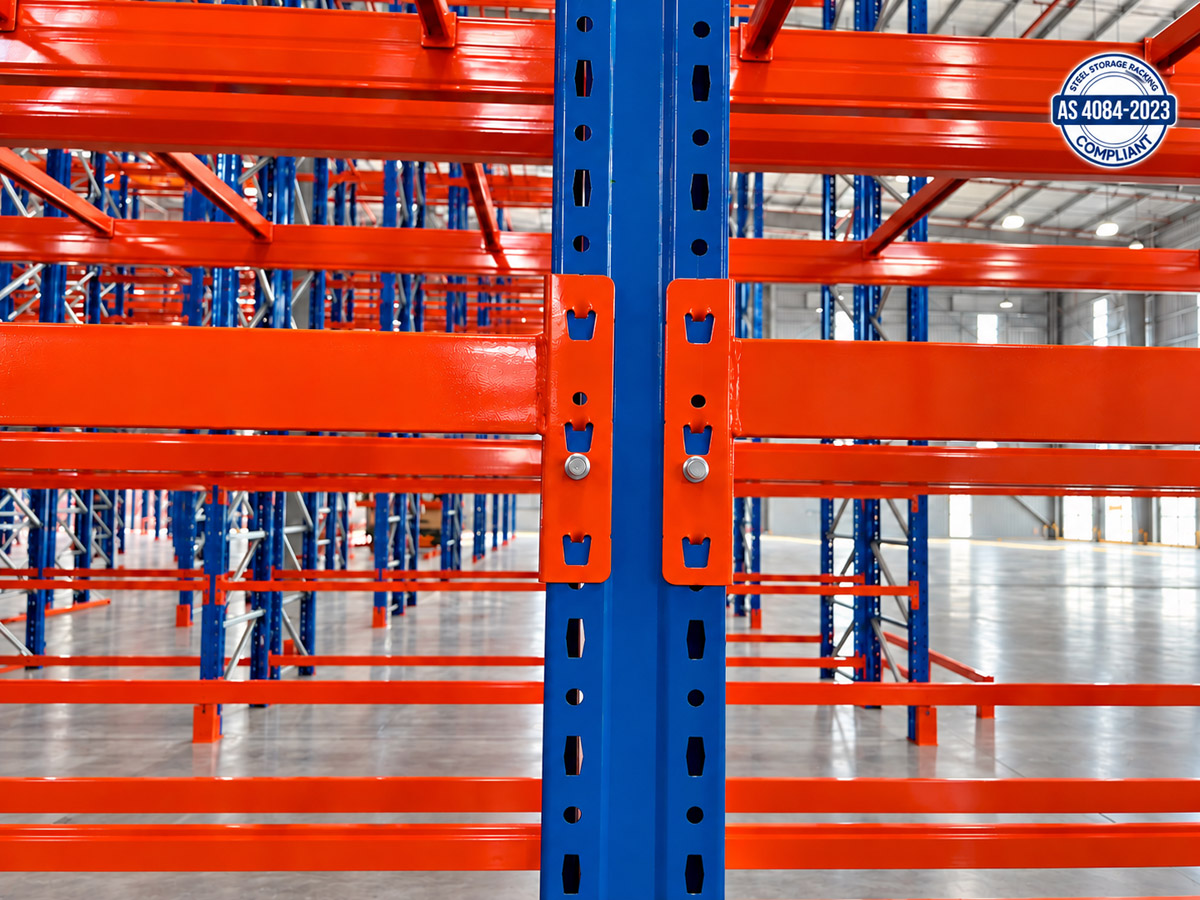

Installed to Australian standards and your site’s conditions

Design, installation and ongoing use all affect the safety and performance of the system.

AS 4084:2023
Designed, installed & maintained to standard

Following the relevant requirements of AS 4084:2023.

LOADS
Safe working loads

Specified load limits followed, with clear load signage displayed.

FLOOR
Floor & anchorage

A floor suitable for rack loads, with baseplates and anchors correctly installed.

ONGOING
Inspection & maintenance

Regular checks for impact damage, deformation and loose components.

WHAT WE AVOID

7 common pallet racking installation mistakes, and how we prevent them

!

Not checking the warehouse layout

Columns, doors, fire equipment and services can clash with the plan if not confirmed on site.

!

Incorrect floor marking

A misplaced first row affects aisle widths, alignment and forklift access everywhere.

!

Poor frame and beam alignment

Out-of-plumb uprights or uneven beams affect stability and performance.

!

Incorrect anchoring

Unsuitable fixings or unsecured baseplates compromise rack stability.

!

Ignoring load capacity

Pallet weights and configurations must stay within the specified limits.

!

Changing configuration without review

Moving beam levels or adding parts can change the design and load capacity.

!

Skipping the final inspection

We check every installation before pallets are loaded and forklifts start operating.

WHAT WE INSTALL

From pallet racking to automated systems

Assessment, layout design, engineering, installation and after-sales support, as one integrated service. Every installation follows a project-specific configuration.

Pallet Racking Installation

Automated warehouse & shuttle installation

For facilities needing greater storage density, higher throughput or more automation.

Requires coordinated integration of racking, mechanical equipment, controls, processes and WMS/WCS software where applicable. Explore our Automated Warehouse Systems →

pallet racking installation

Pallet racking installation

We supply and install pallet racking for different storage densities, inventory profiles and warehouse workflows.

Find the right storage system for your warehouse layout, pallet loads and handling requirements. Explore our Pallet Racking Systems →

INSTALLATION QUOTE

Get an installation pallet racking quote

Tell us what you need installed and where. Our team will review your site and racking, then get back to you shortly.

Or call 0485 083 868 · Mon – Sat, 8am – 5pm

    READY TO INSTALL?

    Safe, aligned and ready to load

    Tell us about your site and racking. Our team will plan the installation, set out the layout and hand over a system that’s inspected and ready for daily operations.
