1. What is Selective Pallet Racking?
Selective Racking is the most widely used warehouse storage system, designed to provide direct access to every pallet without the need to move other inventory. Its simple yet highly efficient design makes it suitable for a wide range of industries and storage applications.
Pallets are stored one position deep along horizontal beam levels, allowing forklifts to access each pallet individually. This high level of accessibility makes selective racking a flexible and cost-effective solution for warehouses handling a diverse range of products and inventory turnover rates.
Key Features
- 100% Pallet Accessibility: Every pallet can be accessed directly at any time, enabling faster picking operations and improved inventory control.
- Single-Deep Storage Configuration: Pallets are stored one deep in rack bays arranged along warehouse aisles, providing clear visibility and easy stock management.
- FIFO Inventory Management: The open-access design naturally supports First-In, First-Out (FIFO) inventory rotation, making selective racking ideal for perishable goods, date-sensitive products, and high-turnover inventory.
- Flexible and Modular Design: Horizontal beams can be easily adjusted to different heights, allowing the system to accommodate pallets of varying sizes and changing storage requirements.
- Compatible with Most Forklifts: Selective racking works with a wide range of forklift types, reducing equipment constraints and simplifying warehouse operations.
- Scalable Storage Solution: The modular structure can be expanded, reconfigured, or relocated as business needs evolve, providing long-term flexibility and value.
>> Read More:
- Pallet Racking: Structure, 6 Common Types and Safety Standards
- Pallet Flow Racking Systems – Maximize Warehouse Productivity with FIFO
2. Components of Selective Rack
Selective racking is a single-deep storage system designed to provide direct access to every pallet position. Its modular structure combines heavy-duty steel components that deliver strength, flexibility, and long-term durability while supporting efficient FIFO (First-In, First-Out) inventory management.
Core Structural Components

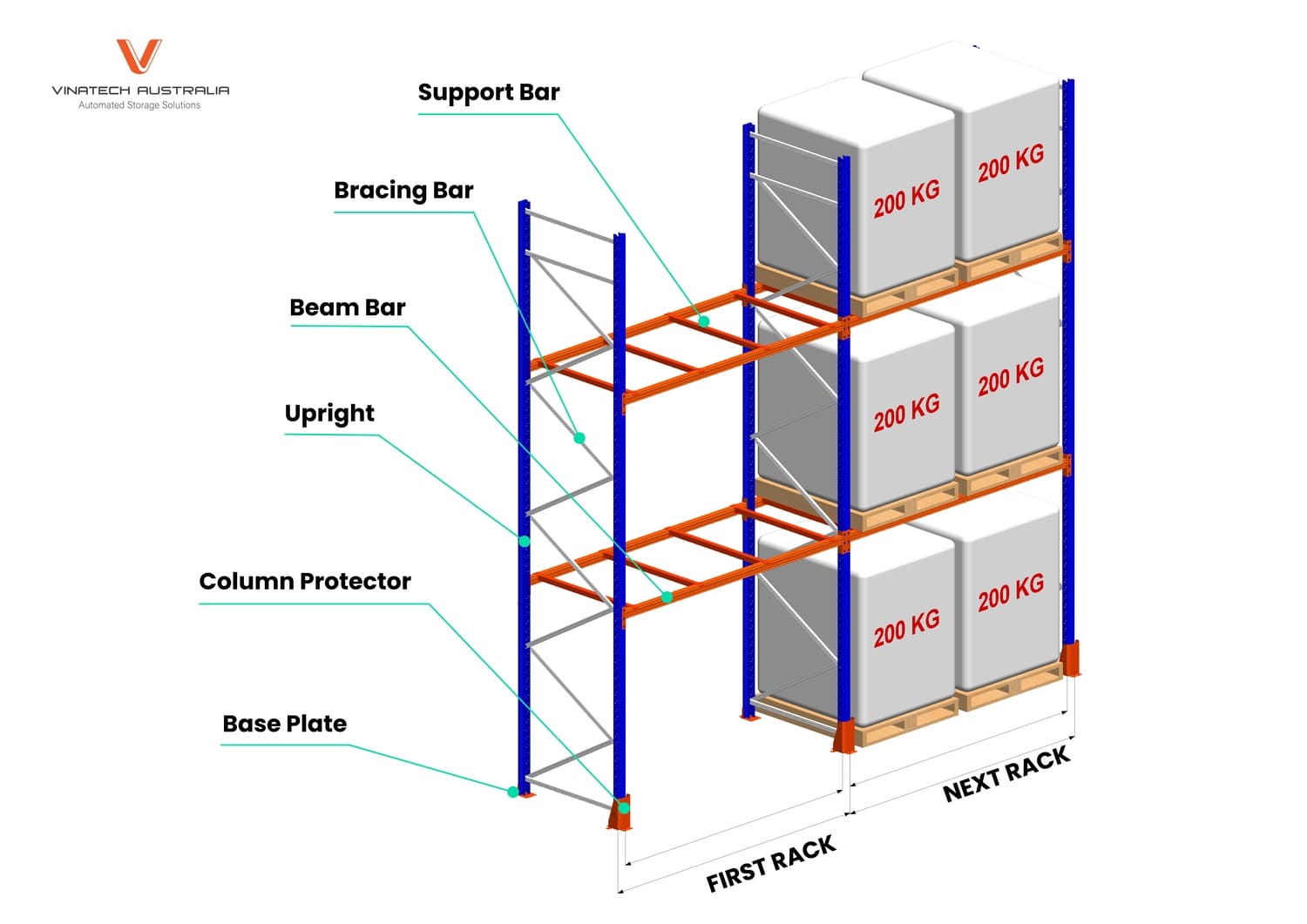

The core structural components of selective pallet racking include uprights, beam bars, bracing bars, support bars, column protectors and base plates. Together, these components support pallet loads, stabilise the structure and help protect vulnerable upright bases.
- Upright: The vertical frame that forms the main load-bearing structure of the pallet system, providing overall strength and stability.
- Beam Bar: Horizontal beams that support pallets and transfer loads evenly to the uprights.
- Bracing Bar: Diagonal and horizontal braces that reinforce the upright frame, improving structural rigidity and resistance to lateral forces.
- Support Bar: Additional support members installed between beams to increase load capacity and provide extra support for pallets or decking.
- Column Protector: Heavy-duty steel guards fitted to the base of uprights to protect against accidental forklift impacts and minimise rack damage.
- Base Plate: Steel plates fixed to the warehouse floor with anchor bolts, ensuring the racking system remains stable and securely positioned.
Safety and Support Accessories
Safety and support accessories include beam safety locks, pallet supports, wire mesh decking and frame protectors. These additions help secure beam connections, support stored goods and reduce exposure to forklift damage.
- Beam Safety Locks: Safety pins or locking clips secure the connection between load beams and upright frames, preventing accidental beam dislodgement during forklift operations.
- Pallet Supports: Steel support bars fitted between beams provide additional reinforcement for pallets that may not be strong enough to span the beam distance safely.
- Wire Mesh Decking: Wire decking panels sit on top of load beams to provide extra support for palletised goods while reducing the risk of products falling through the rack levels.
- Frame Protectors: Floor-mounted frame guards help protect upright frames from accidental forklift impacts, reducing maintenance costs and extending the lifespan of the racking system.
Structural Types of Selective Racking
Selective racking comes in two main structural types: roll-formed racking and structural steel racking. Roll-formed systems offer adjustable clip-in connections, while structural steel systems use heavier sections suited to demanding storage environments.
- Roll-Formed Racking: Manufactured from cold-formed steel, roll-formed racking offers excellent flexibility and easy adjustability. Its clip-in beam connections allow quick reconfiguration, making it ideal for warehouses with changing storage requirements.
- Structural Steel Racking: Built from heavy-duty hot-rolled structural steel sections, structural racking provides superior load capacity, durability, and impact resistance. It is commonly used in demanding industrial environments where heavy loads and intensive forklift traffic are present.
>> Read More:
- VNA Racking – Maximize Warehouse Space with Very Narrow Aisles
- Push Back Racking: High-Density Warehouse Storage Solution
3. Applications of Selective Racking
Selective pallet racking is a versatile and cost-effective storage solution that provides direct access to every pallet position. Its flexibility, ease of operation, and support for First-In, First-Out (FIFO) inventory management make it one of the most widely adopted racking systems across a variety of industries.
- Third-Party Logistics (3PL): Ideal for warehouses managing multiple clients, diverse products, and varying pallet sizes with direct pallet access.
- Retail & E-commerce: Supports fast picking and direct SKU access, making it ideal for high-turnover inventory and large product ranges.
- Cold Storage & Food: FIFO-compatible design helps maintain product freshness and supports food, beverage, dairy, and pharmaceutical storage.
- Manufacturing: Efficiently stores raw materials, WIP, and finished goods, improving material flow and production efficiency.
- Automotive & Wholesale: Flexible configuration accommodates palletised goods, bulky items, and irregular loads across diverse industries.
- General Warehousing: A cost-effective storage solution that balances accessibility, storage capacity, and operational efficiency.
4. Featured Pallet Racking Case Studies by Vinatech Australia
Explore how Vinatech’s pallet racking solutions optimise warehouse storage capacity, improve pallet accessibility and enhance operational efficiency across FMCG and logistics industries.
FMCG & Consumer Goods Distribution

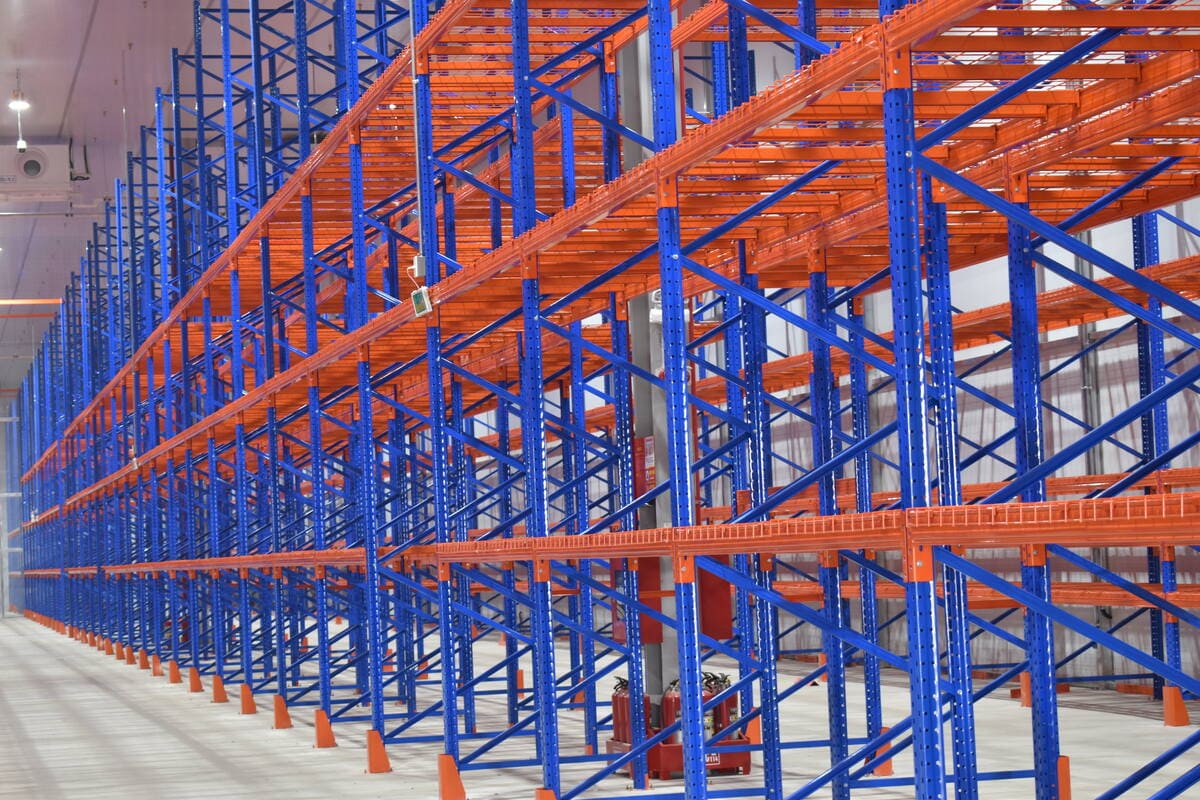

Vinatech implemented a Selective Pallet Racking System providing approximately 16,800 pallet positions within a 20,000 m² warehouse, utilising a 15-metre warehouse height to maximise vertical storage capacity.
The project achieved approximately 65% higher storage capacity, 30% greater pallet handling throughput and an estimated 25% reduction in pallet retrieval time.
This solution demonstrates how selective pallet racking improves warehouse space utilisation, ensures direct pallet access and supports efficient high-volume FMCG distribution.
Large-Scale Logistics Warehouse

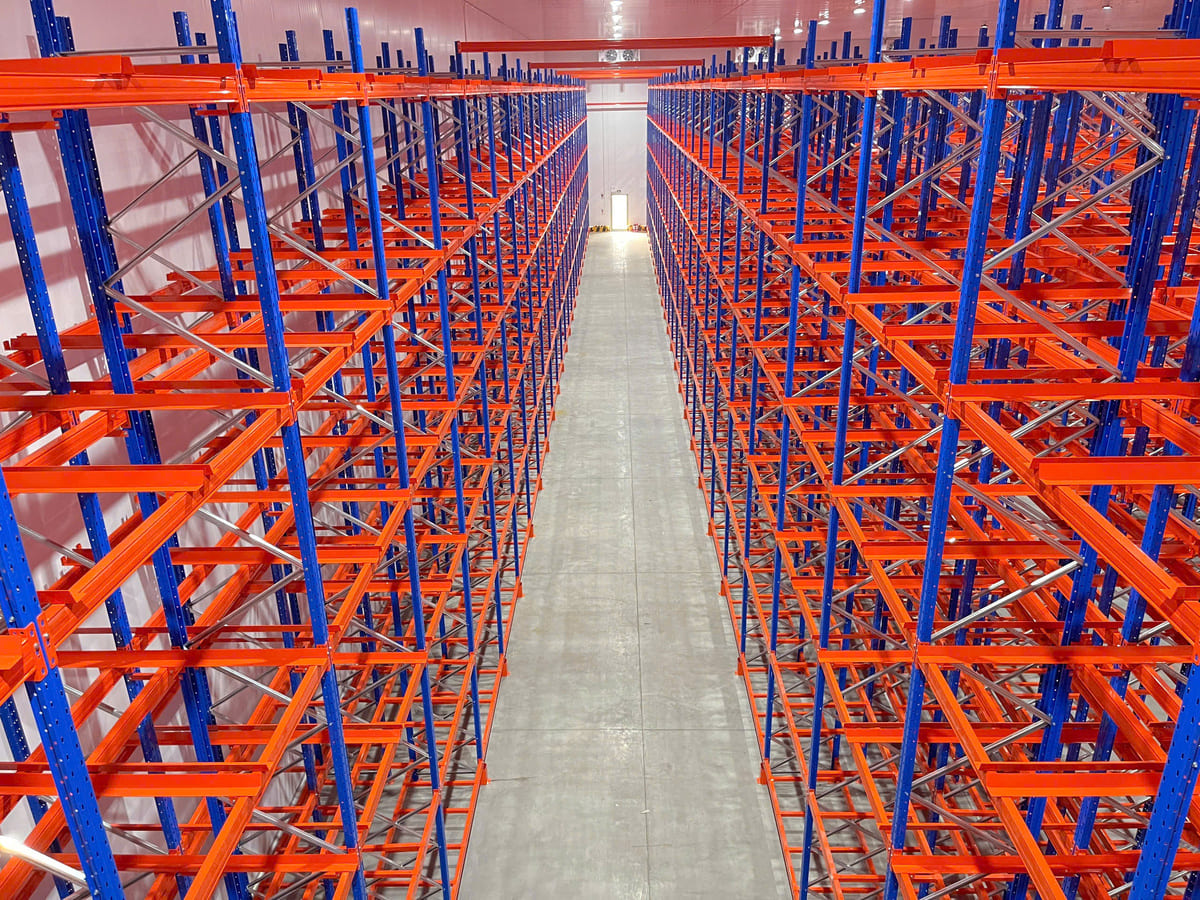

Vinatech delivered a Selective Pallet Racking System for LOTTE Global Logistics, providing approximately 18,000 pallet positions across a 23,000 m² warehouse, with 100% direct access to every pallet.
The optimised configuration achieved approximately 50% improvement in storage space utilisation, accommodating around twice the existing storage demand while maintaining efficient forklift access.
This project highlights how Vinatech’s pallet racking solutions maximise warehouse capacity, streamline inventory handling and support scalable logistics operations.
With extensive experience in warehouse storage solutions, Vinatech Australia provides selective pallet racking systems that maximise space utilisation, ensure direct pallet accessibility and support efficient, scalable warehouse operations.
Vinatech Australia: Industrial Warehouse Racking – Warehouse Shelving Solutions
- Website: https://vinatech.com.au/
- Phone number: 0485 083 868
- Email: info@vinatech.com.au
- Address: 34 Paramount Bvd, Cranbourne West VIC 3977, Australia
Selective Racking remains one of the most versatile and cost-effective warehouse storage solutions, offering 100% pallet accessibility, flexible layouts, and efficient inventory management. Suitable for a wide range of industries, it helps businesses maximise storage capacity while maintaining fast and accurate warehouse operations. Vinatech delivers reliable Selective Racking systems that help Australian businesses improve warehouse performance and support long-term growth.
