Problem

For 3PL logistics warehouses managing multiple customer inventories, maximising pallet storage capacity is important for making efficient use of available floor space.

For this approximately 9,000 m² warehouse, the customer needed a high-density storage solution that could accommodate repeated SKUs and batch storage while maintaining efficient forklift operations.

The customer needed to:

Increase pallet storage capacity within the existing warehouse
Improve utilisation of available floor space
Reduce the space required for access aisles
Support repeated SKUs and batch-oriented storage
Improve loading and pallet retrieval efficiency
Maintain a durable and reliable storage structure

The objective was to increase storage density while maintaining an efficient warehouse operating environment for 3PL logistics activities.

Solution

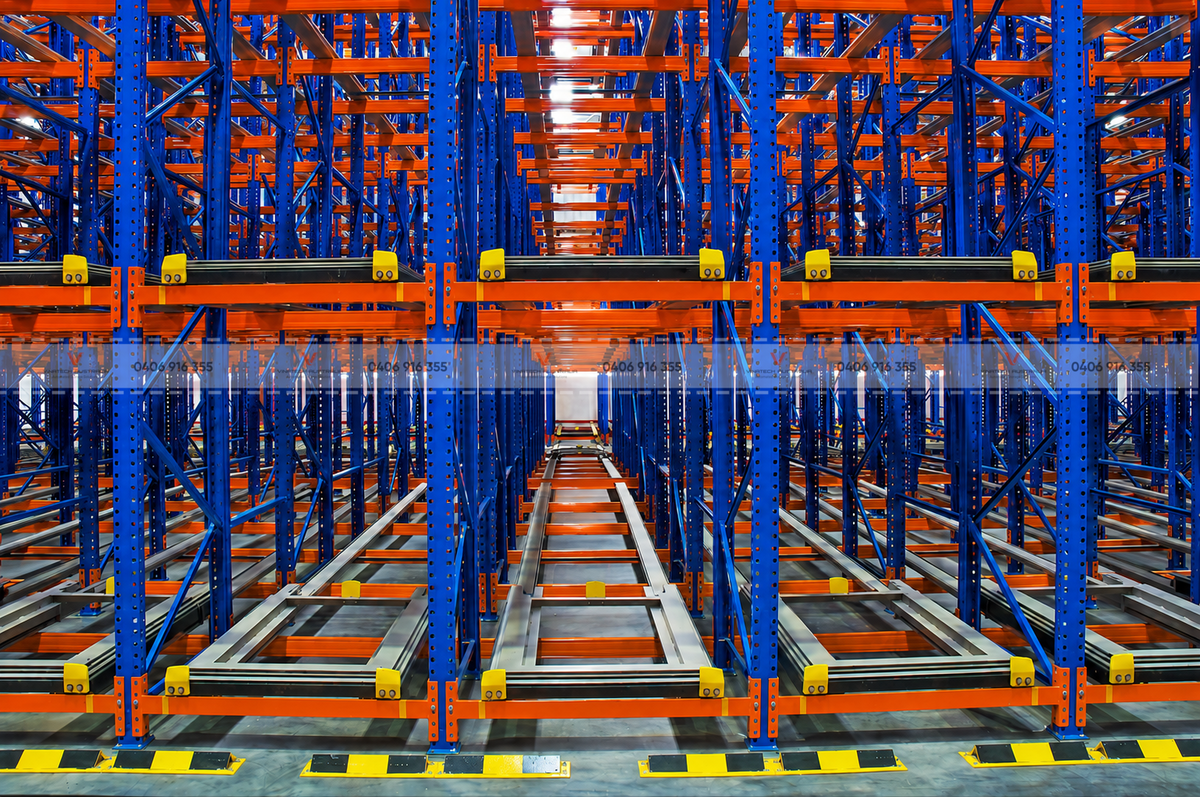

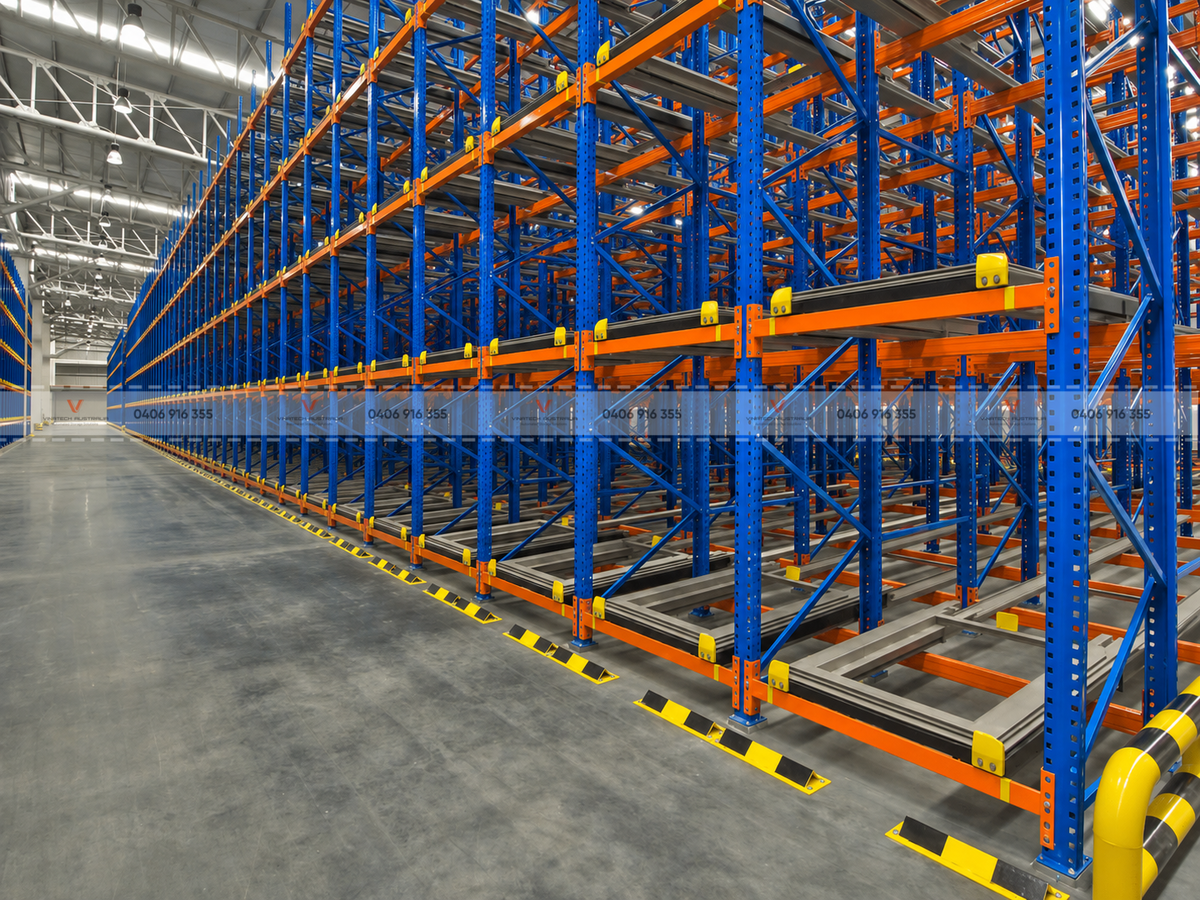

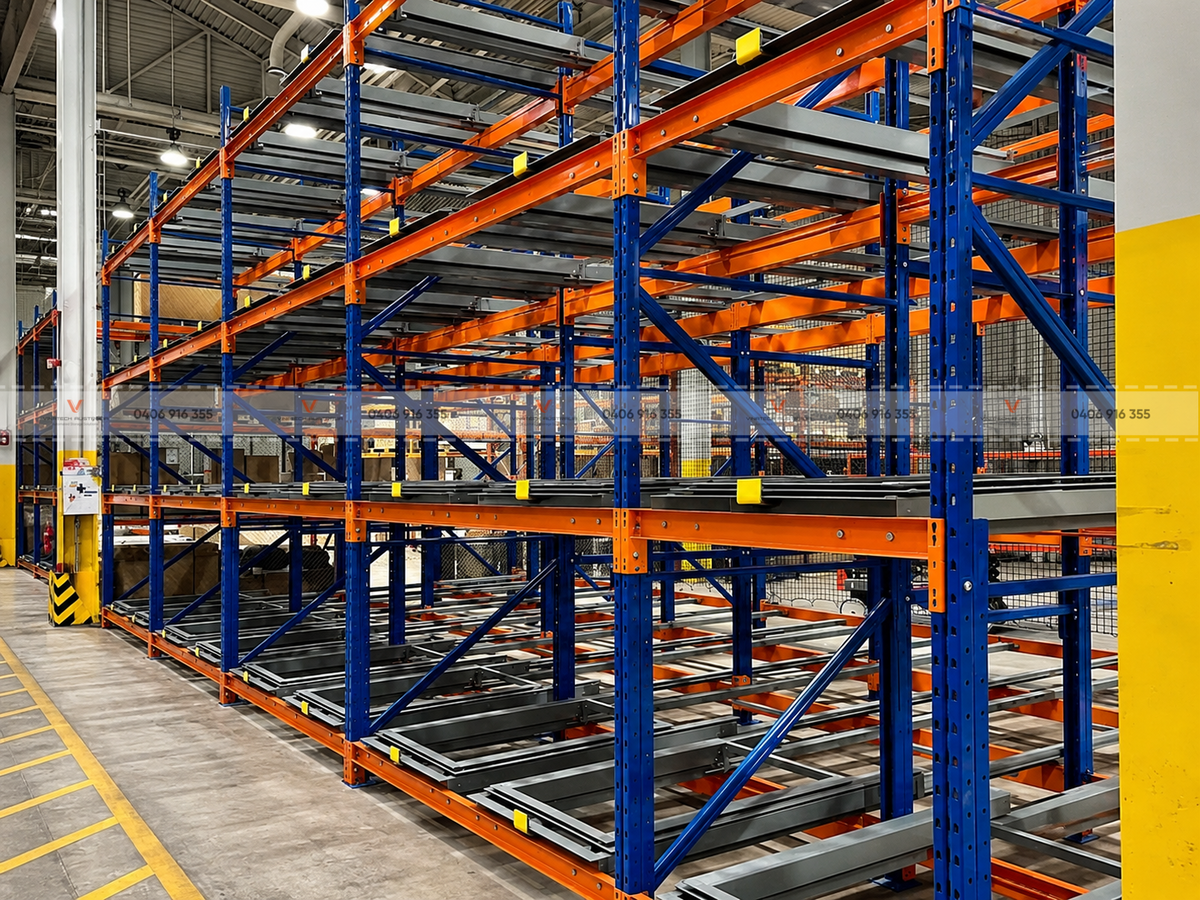

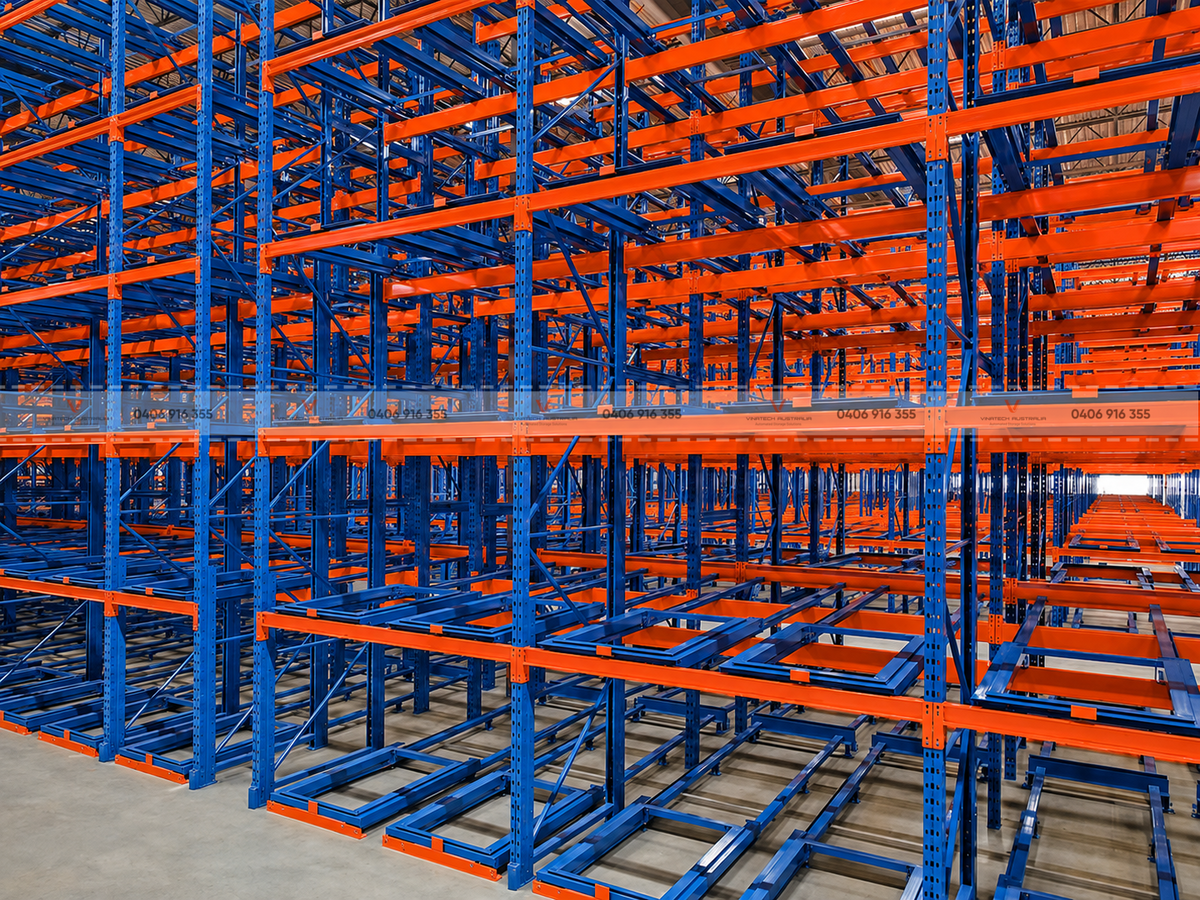

Vinatech implemented a Push Back Racking System designed for high-density pallet storage.

Push Back Racking allows pallets to be stored multiple positions deep, with pallets loaded and retrieved from the same aisle. As pallets are added, they move along the system’s inclined rails, allowing multiple pallets to be stored within each lane while reducing the need for additional access aisles.

For the approximately 9,000 m² 3PL warehouse, the system was configured to improve storage density while supporting efficient forklift handling and batch-oriented inventory management.

The solution includes:

Push Back Pallet Racking configuration
Multi-position deep storage
Improved warehouse space utilisation
Reduced aisle requirements
Efficient forklift loading and retrieval
Dedicated storage lanes for repeated SKUs
Configuration suitable for batch storage
Strong and durable racking structure

The system provides a practical balance between storage density and accessibility, making it suitable for 3PL operations managing multiple palletised product groups.

Outcome

The completed Push Back Racking System provides the 3PL warehouse with a high-density storage solution across approximately 9,000 m².

The project delivered:

High-density pallet storage across approximately 9,000 m²
Improved utilisation of available warehouse space
Reduced space required for access aisles
More efficient storage of repeated SKUs
Improved loading and retrieval operations
Better suitability for batch-oriented inventory
Efficient forklift handling
A durable storage structure for long-term warehouse operations

By storing pallets multiple positions deep, the system allows the warehouse to concentrate more inventory within each storage lane while maintaining access from the operating aisle.

The Push Back configuration provides a balance between storage density and accessibility, helping the 3PL operation manage larger volumes of palletised goods without requiring a corresponding expansion of the warehouse footprint.

Testimonial

“The Push Back Racking system has helped us make better use of our warehouse space while providing efficient access to multiple pallet positions. It is well suited to our 3PL operations and the way we manage repeated SKUs and batch storage.”

– Warehouse Operations Manager, 3PL Logistics
