What is 3PL Warehouse Racking?
3PL warehouse racking is a storage system designed for third-party logistics facilities that manage inventory for multiple customers. Unlike a warehouse serving a single product range, a 3PL facility may need to handle different:
- Pallet sizes and weights
- SKU quantities
- Inventory turnover rates
- Picking requirements
- Customer volumes
- Seasonal demand
This means the racking layout needs to balance storage density with accessibility and operational flexibility. The warehouse design also affects aisle width, forklift travel, pallet positions and overall storage capacity.
What Does a 3PL Warehouse Need From Its Racking?
A good 3PL industrial warehouse racking system should support changing customer and inventory requirements without making warehouse operations unnecessarily complex.
- Flexible Pallet Access: 3PL operators often manage many SKUs across different customers. Direct pallet access can therefore be important for inventory control and fast retrieval.
- High Storage Density: Every additional pallet position can improve the utilisation of existing warehouse space. High-density systems can reduce aisle requirements and increase storage capacity.
- Efficient Product Flow: The racking layout should support efficient receiving, put-away, picking and dispatch operations while reducing unnecessary forklift travel.
- Scalability: 3PL inventory can change as new customers are added or existing contracts expand. A flexible racking layout makes future expansion easier.
For many 3PL facilities, the best solution is not a single racking type but a combination of storage systems. Selective Racking may be used for fast-moving SKUs, while Double Deep, Push Back, Pallet Flow or Shuttle Racking can provide higher density for suitable inventory profiles.
Best Racking Systems for 3PL Warehouses
There is no single pallet racking system that suits every 3PL operation. The right solution depends on SKU profile, pallet turnover, available floor space and required throughput.

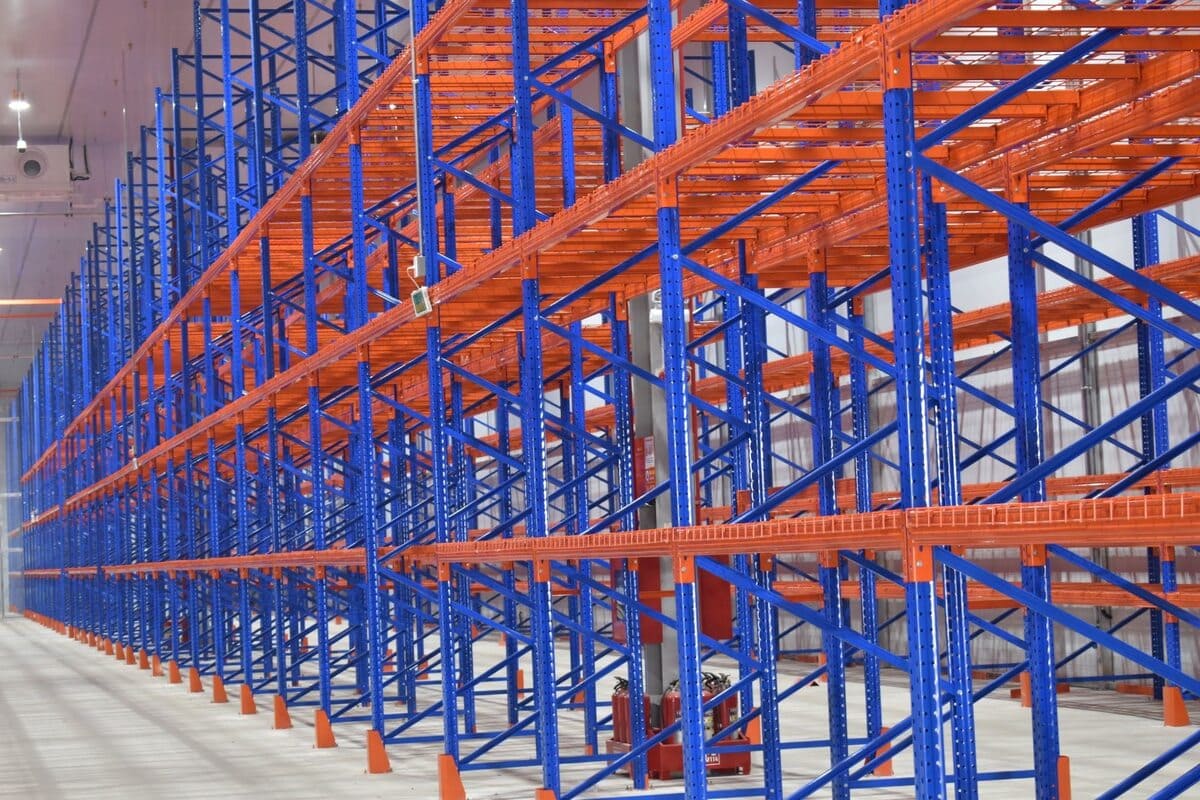

Selective Pallet Racking
Selective Pallet Racking is ideal when direct access to every pallet is the priority. It is particularly useful for 3PL warehouses managing many SKUs or customers because individual pallet positions can be accessed without moving other pallets.
- 100% direct pallet access
- Suitable for multiple SKUs
- Flexible rack configuration
- Easy inventory management
- Compatible with standard forklifts

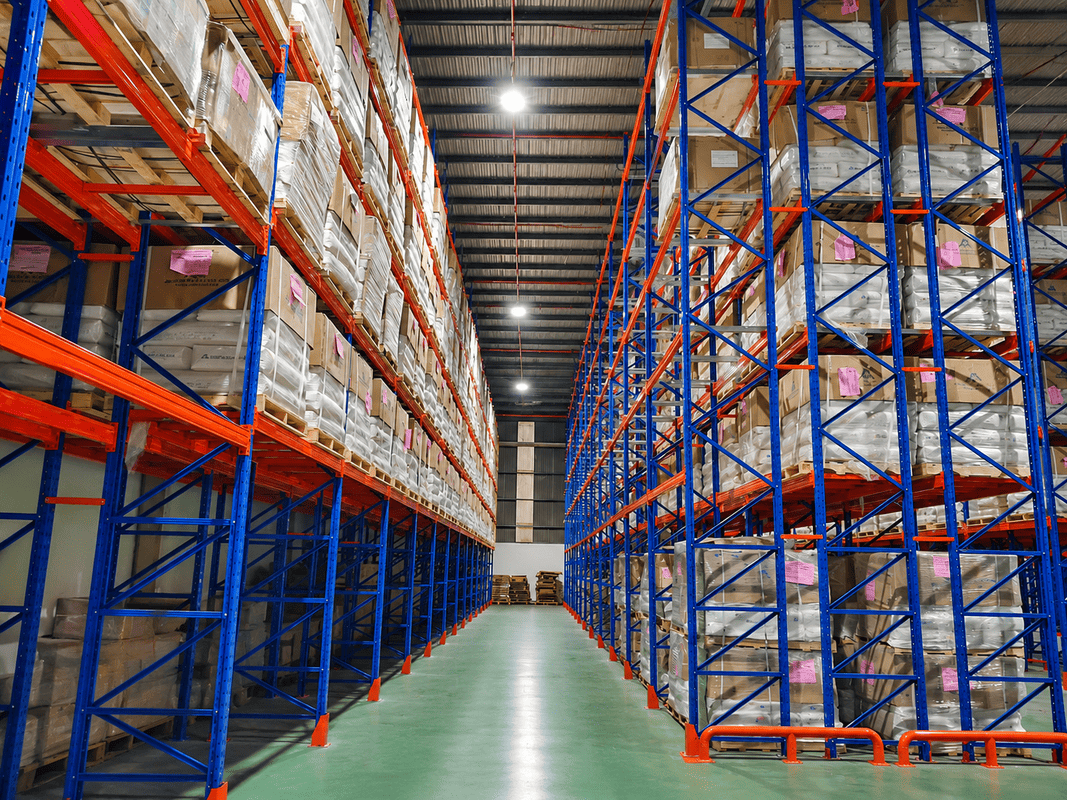

Double Deep Racking
Double Deep Racking increases storage density by storing pallets two positions deep. It can provide more pallet positions than Selective Racking while maintaining relatively straightforward warehouse operations.
- Higher storage density
- Fewer aisles required
- Suitable for multiple pallets per SKU
- Efficient use of warehouse floor space
- Good balance between density and accessibility

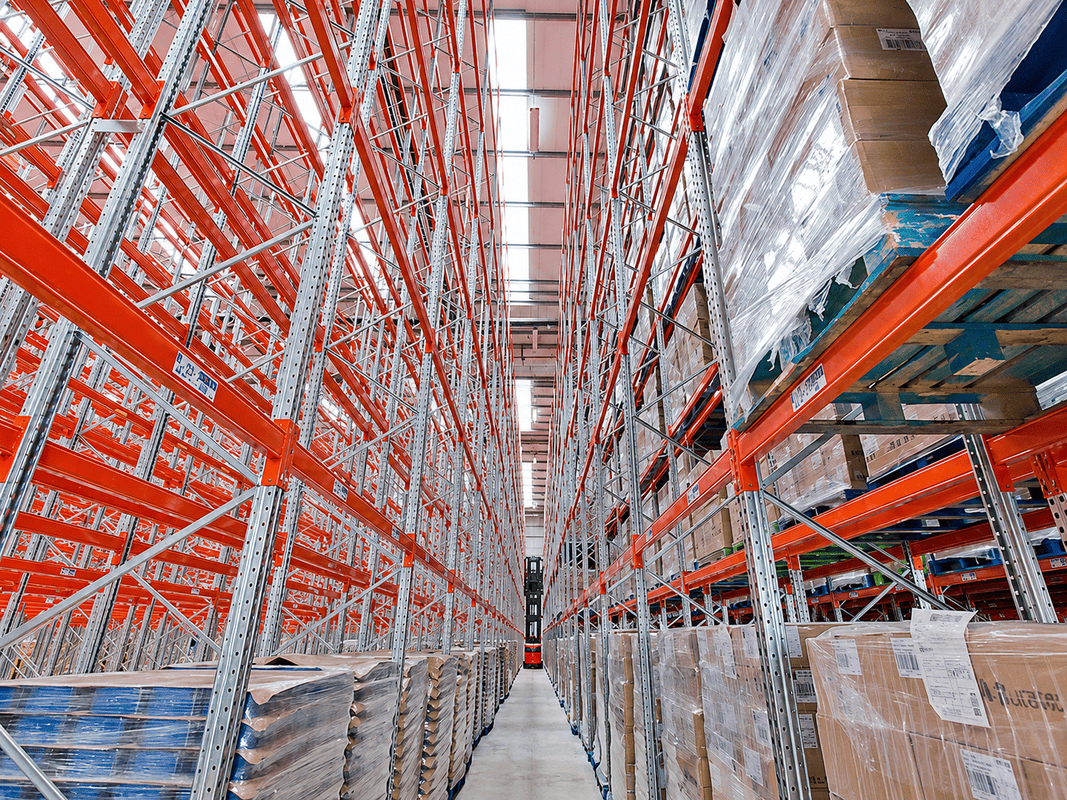

VNA Racking
Very Narrow Aisle Racking helps maximise pallet capacity while maintaining individual pallet access. By reducing aisle widths and using specialised material handling equipment, more rack rows can fit within the same warehouse footprint.
- High space utilisation
- Direct pallet access
- Makes better use of warehouse height
- Suitable for high-SKU operations
- Ideal for space-constrained facilities

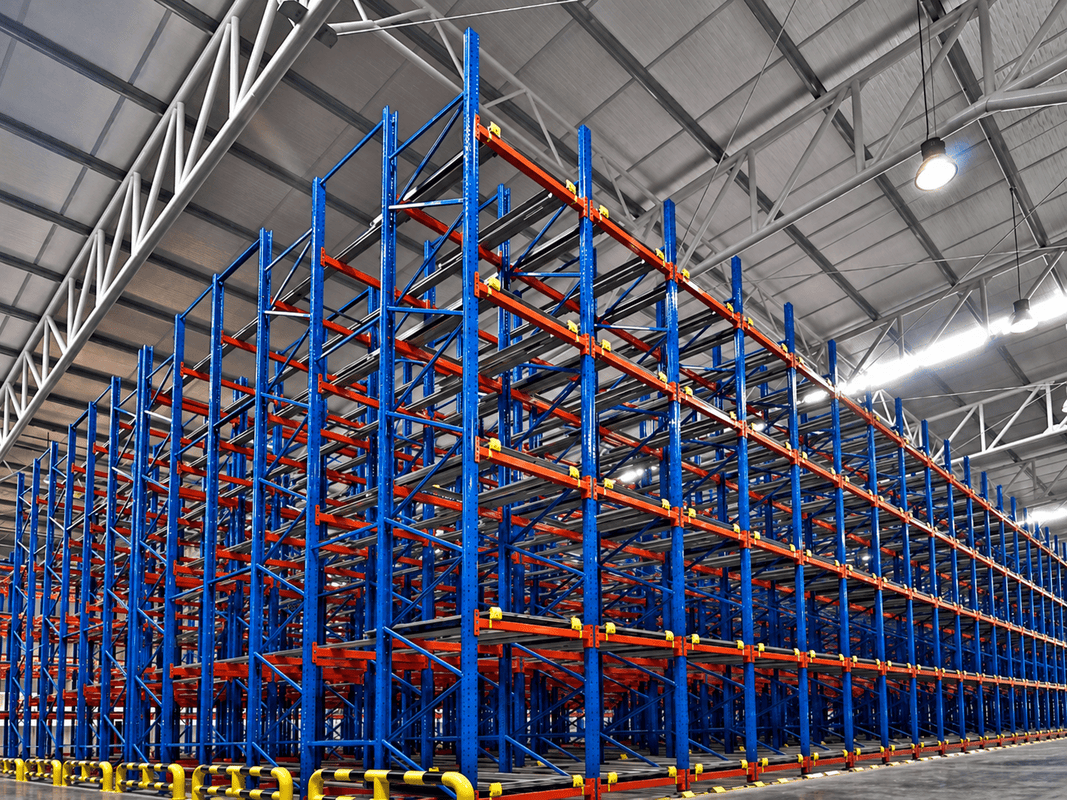

Push Back Racking
Push Back Racking is suitable when higher storage density is required without forklifts entering the rack. Pallets can be stored several positions deep, making the system suitable for 3PL operations holding multiple pallets of the same SKU.
- High-density storage
- Multiple pallets per lane
- Fast loading and retrieval
- Forklifts remain in the aisle
- Suitable for LIFO inventory

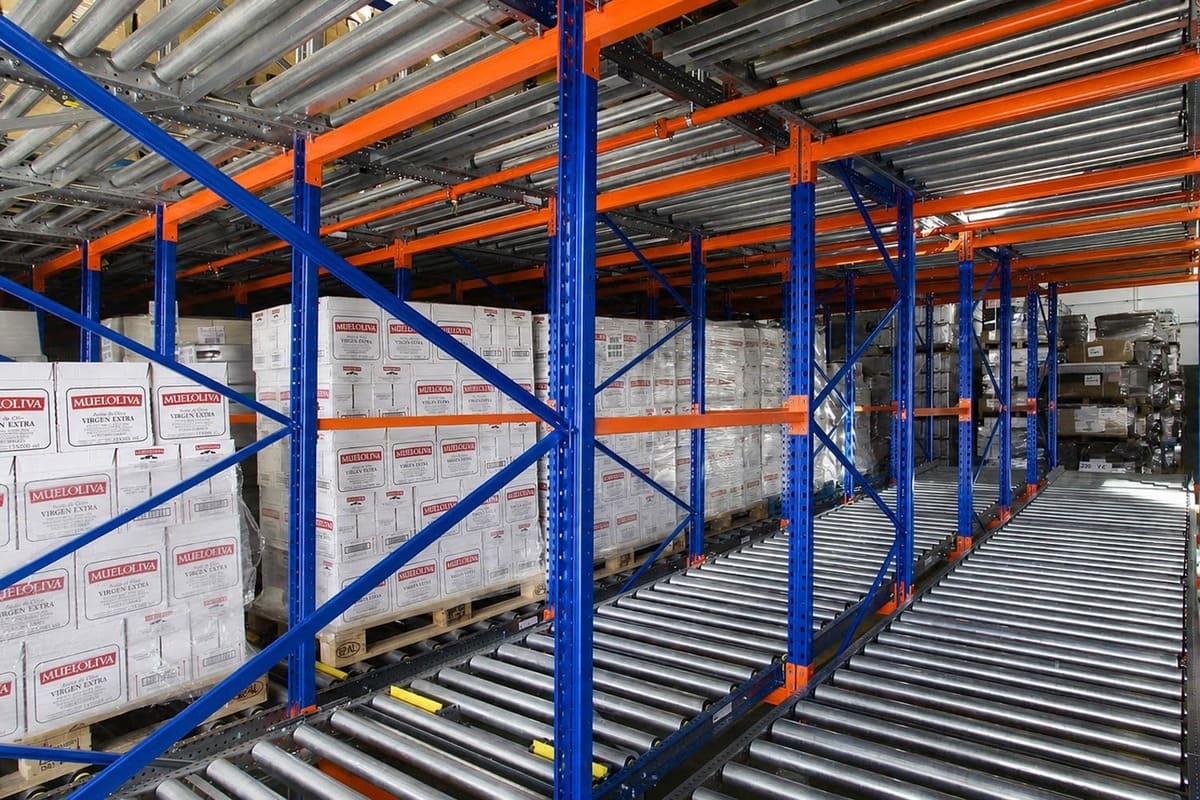

Pallet Flow Racking
Pallet Flow Racking is designed for high-throughput FIFO inventory. Pallets move along inclined roller tracks from the loading side towards the retrieval side, supporting continuous stock rotation.
- FIFO inventory management
- High-density storage
- Fast pallet movement
- Separate loading and retrieval areas
- Suitable for fast-moving products

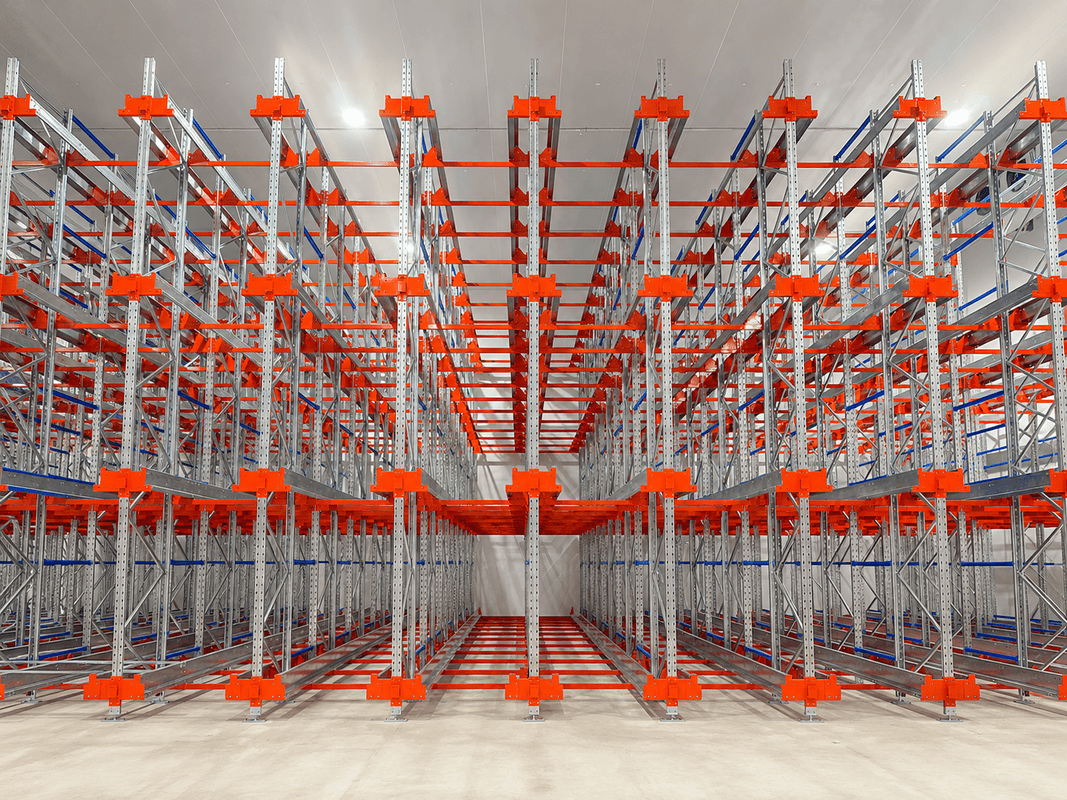

Shuttle Racking
Shuttle Racking combines high-density storage with automated pallet movement inside the rack lanes. It can reduce forklift travel and is suitable for 3PL facilities handling larger pallet volumes or requiring higher throughput.
- High-density storage
- Reduced forklift travel
- Deep-lane pallet storage
- Faster loading and retrieval
- FIFO or LIFO configurations available
- Suitable for high-volume operations
Which Racking System Is Best for Your 3PL Warehouse?
The best 3PL warehouse racking system depends on what your operation needs to prioritise.
- Many SKUs and frequent pallet access: Selective Racking
- More capacity with moderate accessibility: Double Deep
- Maximum pallet access in limited space: VNA Racking
- Multiple pallets of the same SKU: Push Back or Drive-In
- FIFO and fast-moving inventory: Pallet Flow
- High-volume, high-density storage: Shuttle Racking
- Additional picking or storage floor space: Mezzanine
In larger 3PL facilities, several racking systems can also be combined within one warehouse to suit different inventory profiles.
Why Choose Vinatech for 3PL Warehouse Racking?
Vinatech Australia provides 3PL warehouse racking solutions designed around storage capacity, product flow and operational requirements.
- Factory-direct manufacturing: Greater control over specifications, production and project configuration.
- Designed to Australian requirements: Steel pallet racking designed to applicable AS 4084.1:2023 requirements.
- Custom warehouse layouts: Designed around pallet sizes, SKU profiles, forklifts and target capacity.
- Multiple racking systems: From Selective Racking to high-density Shuttle solutions.
- 2D and 3D design support: Review rack rows, aisles and pallet positions before installation.
- New warehouse and retrofit projects: Solutions for new facilities as well as existing warehouse upgrades.
- Professional installation support: Installation coordinated around the approved warehouse layout.
- End-to-end project support: Design, manufacturing, supply, delivery and installation.
- Local presence in Victoria: Address: 34 Paramount Bvd, Cranbourne West VIC 3977, Australia.
Whether you are opening a new 3PL distribution centre, onboarding additional customers or trying to increase pallet capacity in an existing facility, Vinatech can develop a racking layout around your operational requirements.
Contact Vinatech Australia to discuss your 3PL warehouse layout and find the right racking system for your operation.
