What is Logistics Warehouse Racking?
Logistics warehouse racking is a storage system designed to organise palletised goods while supporting efficient movement through the warehouse. A logistics facility may need to manage:
- Incoming pallet loads
- Multiple SKUs
- Reserve storage
- Fast-moving inventory
- Order replenishment
- Picking operations
- Staging and dispatch
- Seasonal volume changes
The racking layout therefore needs to do more than maximise pallet positions. It should also support efficient material flow, forklift access and stock movement.
This is why aisle widths, rack locations, pallet capacity and receiving or dispatch zones should be considered together during warehouse planning.
What Does a Logistics Warehouse Need From Its Racking?
The right racking system should help goods move through the warehouse with fewer unnecessary movements while making effective use of available space.
- Efficient Product Flow: Racking should support a clear path from receiving and put-away through to replenishment, picking and dispatch.
- High Storage Capacity: A well-planned layout should maximise pallet positions using available floor area and warehouse height.
- Fast Pallet Access: Frequently moving inventory needs to remain easy to locate, retrieve and replenish.
- Reduced Forklift Travel: Rack placement and aisle design can help shorten travel distances between storage, picking and dispatch areas.
- SKU Flexibility: Logistics facilities may handle products with different pallet sizes, weights and turnover rates.
- Inventory Rotation: FIFO or LIFO configurations should be selected according to the type of goods being stored.
- Peak Volume Capacity: The warehouse should be able to accommodate higher inventory levels during seasonal or promotional peaks.
- Future Scalability: Racking should allow the operation to expand or adjust as storage requirements change.
A logistics warehouse will often achieve better results by combining several racking systems rather than using one configuration throughout the entire facility.
Racking Systems for Different Logistics Operations
Different logistics operations require different racking strategies. The right pallet racking system should match how goods move through the warehouse, from receiving and reserve storage to replenishment, picking and dispatch.

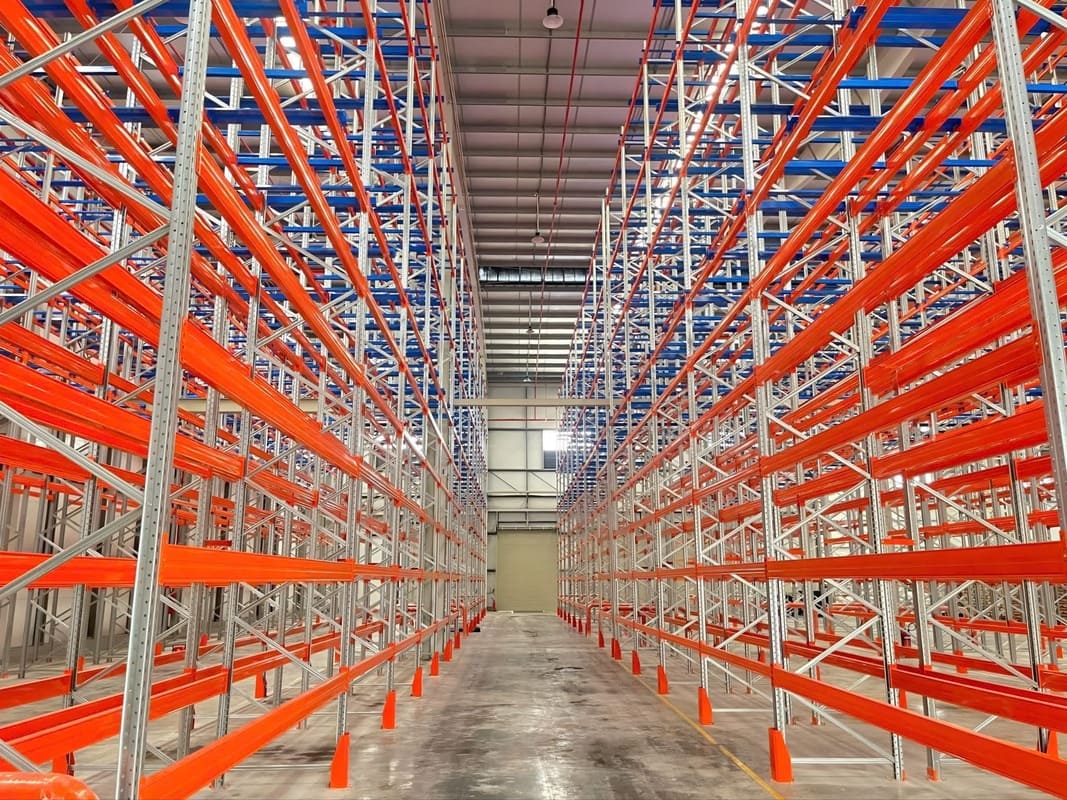

For Fast-Moving Inventory: Selective Pallet Racking
Selective Pallet Racking is ideal for products that need frequent and direct pallet access. It allows operators to reach every pallet position without moving other stock, making it suitable for fast-moving SKUs and active picking zones.
- 100% direct pallet access
- Suitable for high-turnover inventory
- Easy stock identification
- Flexible beam levels
- Supports frequent replenishment
- Compatible with standard forklifts

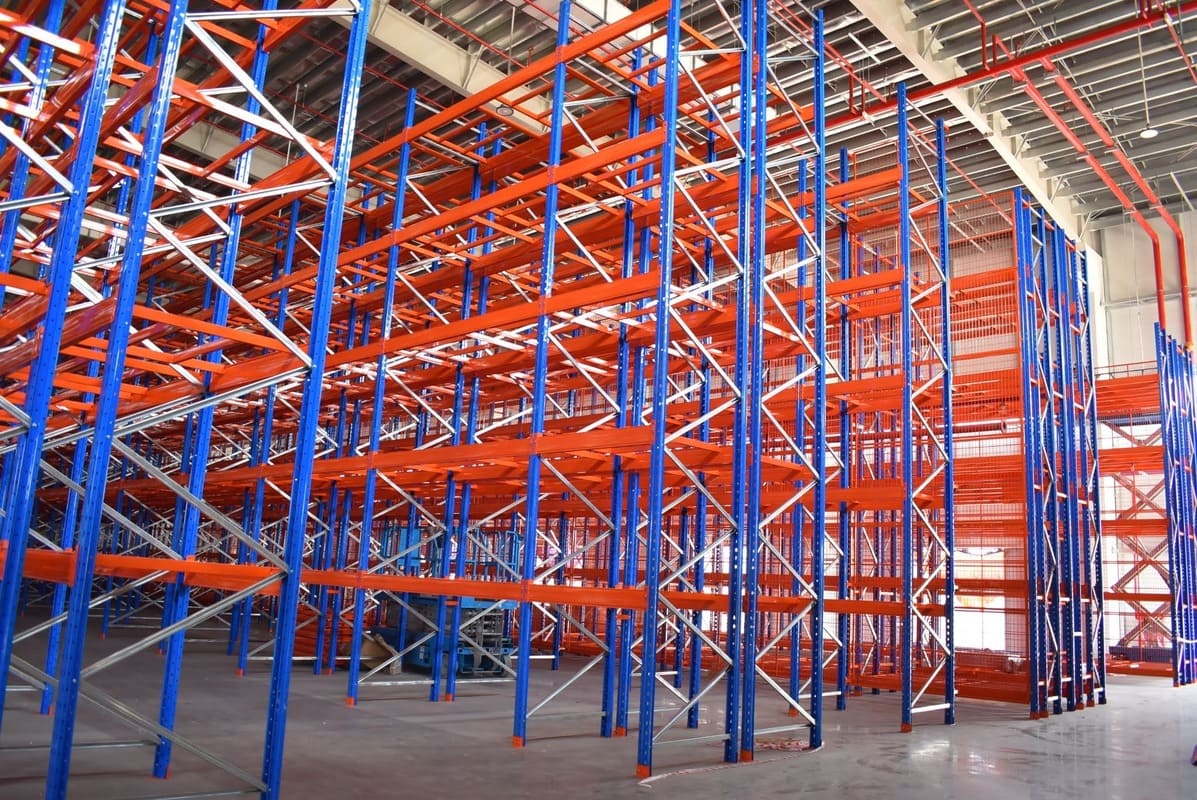

For Reserve Pallet Storage: Double Deep Racking
Double Deep Racking is suitable for reserve stock where higher capacity is needed without moving to a fully high-density system. Pallets are stored two positions deep, helping reduce aisle requirements and increase storage density.
- More pallet positions within the same footprint
- Reduced aisle space
- Suitable for reserve inventory
- Effective for multiple pallets of the same SKU
- Good balance between capacity and accessibility

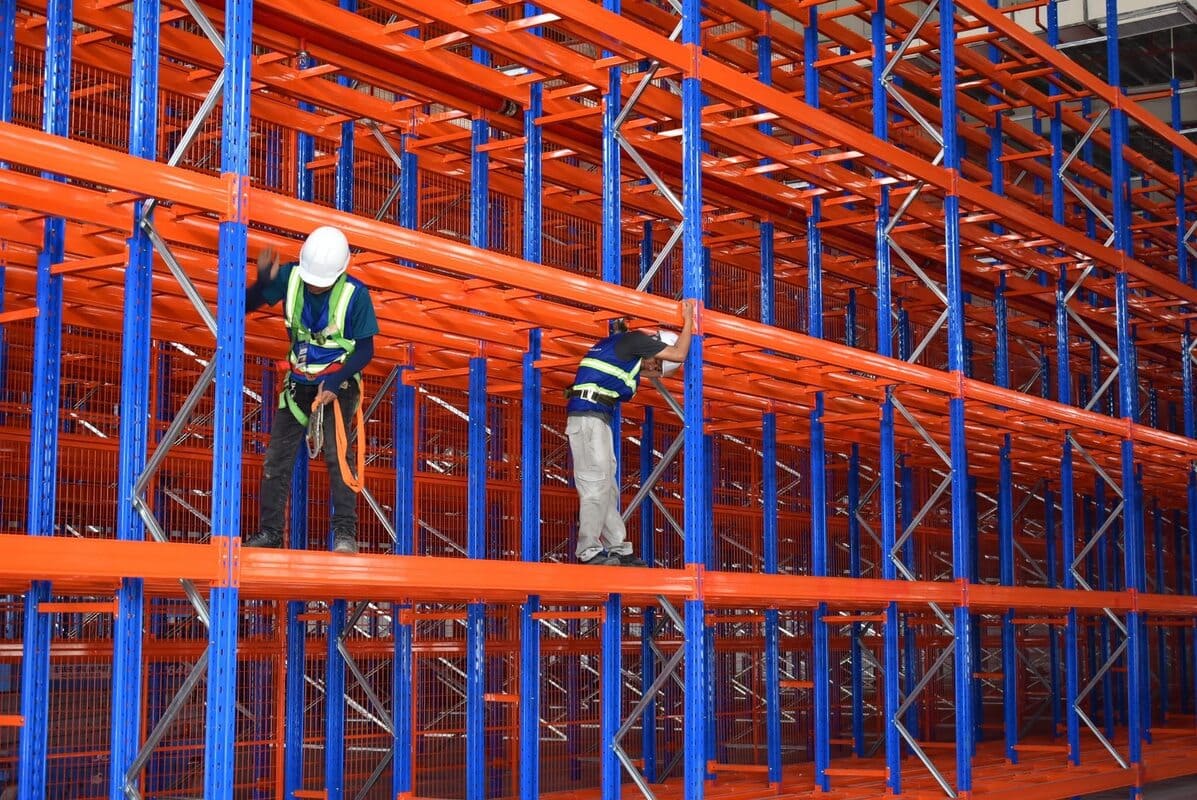

For Space-Constrained Warehouses: VNA Racking
Very Narrow Aisle Racking helps increase storage capacity where warehouse floor space is limited. Narrower aisles allow more rack rows to be installed while maintaining access to individual pallet positions.
- High space utilisation
- Direct pallet accessibility
- Better use of warehouse height
- Suitable for large SKU ranges
- Increased storage capacity
- Requires compatible VNA handling equipment
For High-Density Buffer Storage: Push Back Racking
Push Back Racking works well for buffer or reserve inventory that needs higher storage density close to active warehouse zones. Multiple pallets can be stored in each lane while loading and retrieval take place from the aisle.
- Multiple pallets stored per lane
- High-density configuration
- Reduced aisle requirements
- Fast loading and retrieval
- Forklifts remain outside the rack
- Suitable for LIFO stock movement

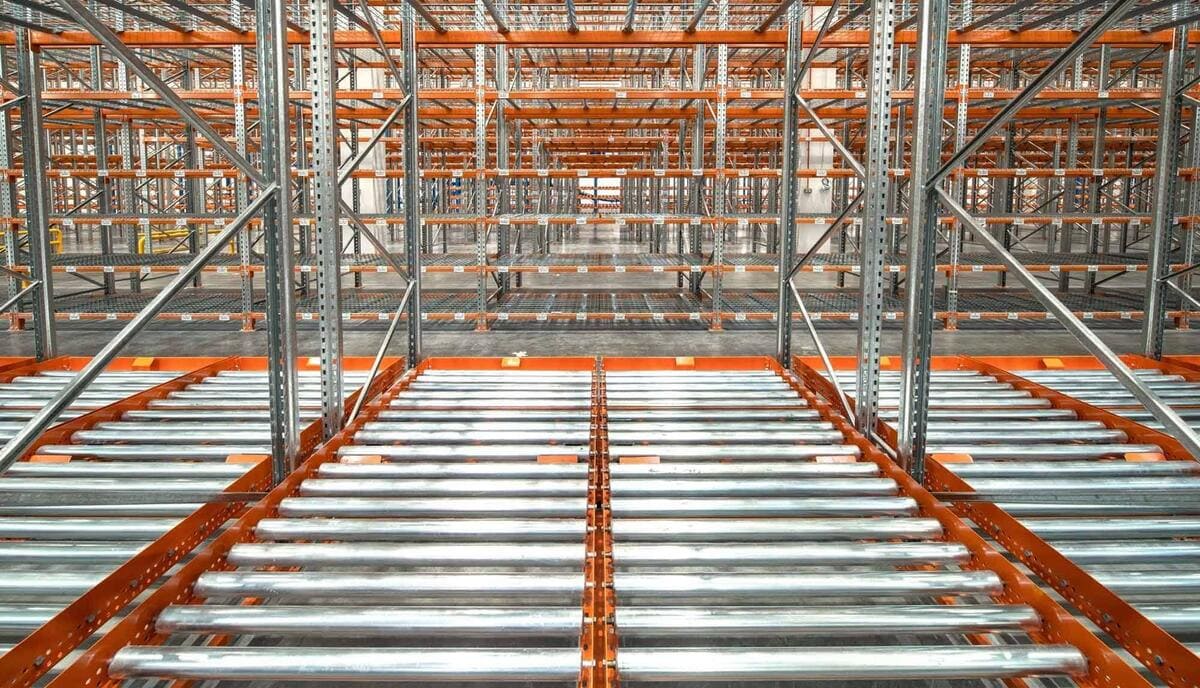

For FIFO and High Throughput: Pallet Flow Racking
Pallet Flow Racking is designed for operations where stock rotation and continuous pallet movement are priorities. Pallets move automatically along gravity roller tracks from the loading side to the retrieval side.
- FIFO inventory flow
- Fast stock rotation
- High-density storage
- Separate loading and retrieval zones
- Reduced internal pallet handling
- Suitable for high-throughput operations

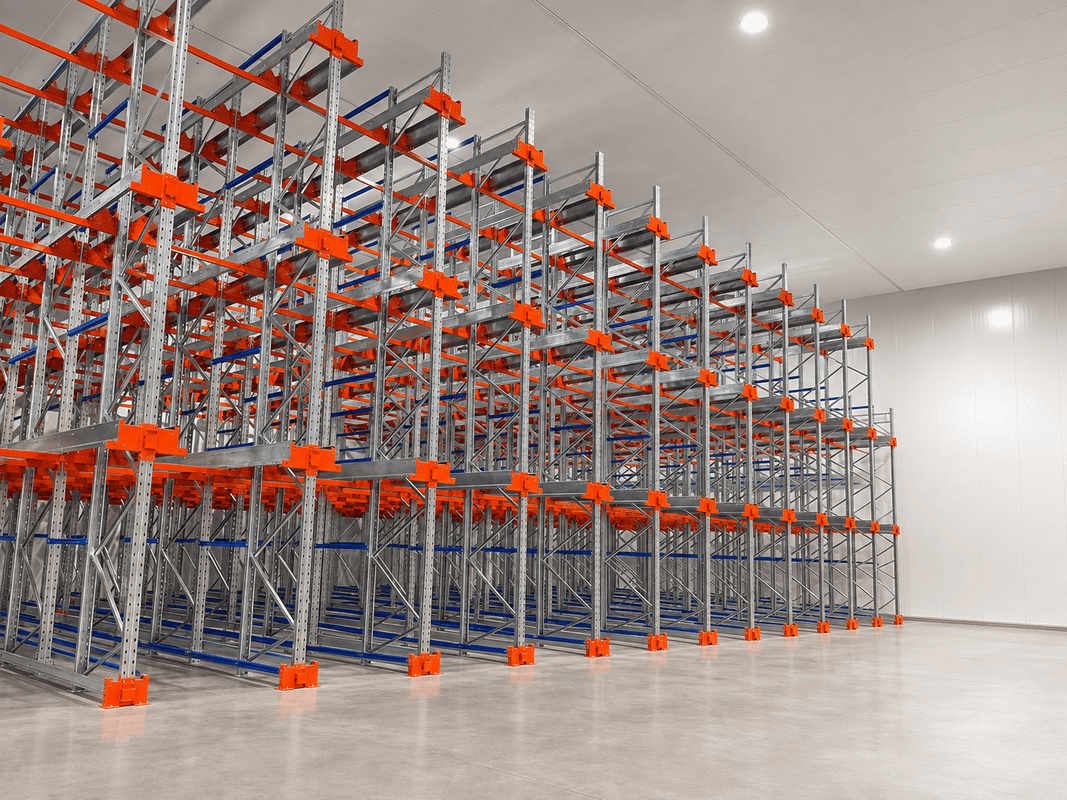

For High-Volume Pallet Movement: Shuttle Racking
Shuttle Racking is suitable for logistics operations handling high pallet volumes and deep storage lanes. A powered shuttle moves pallets inside the rack, reducing forklift travel and improving handling efficiency.
- Automated pallet movement
- High-density deep-lane storage
- Reduced forklift travel
- Faster pallet loading and retrieval
- Suitable for high-volume operations
- Supports FIFO or LIFO layouts
A well-planned logistics warehouse often combines different racking systems to balance storage capacity, pallet accessibility and efficient product flow across each operational zone.
How to Choose Racking for a Logistics Warehouse
Choosing the right logistics industrial warehouse racking depends on SKU profile, pallet volume, inventory turnover and stock rotation. Fast-moving products usually need direct access, while reserve stock can be stored in higher-density systems.
Key factors to consider include:
- SKU Profile: Warehouses with many SKUs may need direct pallet access, while larger quantities of the same SKU can suit higher-density systems.
- Pallet Volume: The number of pallets stored per SKU helps determine whether Selective, Double Deep or deep-lane storage is more suitable.
- Inventory Turnover: Fast-moving products require easier access, while slower-moving or reserve stock can be stored more densely.
- Stock Rotation: FIFO or LIFO requirements can influence the choice between Pallet Flow, Push Back, Drive-In or Shuttle Racking.
- Warehouse Space: Floor area, clear height and column positions all affect the number and configuration of pallet positions.
- Forklift Equipment: Aisle width, turning radius and lift height should match the material handling equipment used on site.
- Operational Flow: Rack locations should support efficient movement between receiving, storage, picking, staging and dispatch areas.
- Future Capacity: The layout should allow the warehouse to adapt as pallet volumes, SKU ranges or throughput requirements increase.
Why Choose Vinatech for Logistics Warehouse Racking?
Vinatech Australia provides warehouse racking solutions designed around storage capacity, material flow and daily logistics operations.
- Factory-direct manufacturing: Greater control over rack specifications, manufacturing and project configuration.
- Designed to Australian requirements: Steel pallet racking engineered in accordance with applicable AS 4084:2023 design requirements.
- Custom warehouse layouts: Systems designed around pallet sizes, load requirements, warehouse dimensions and material handling equipment.
- 2D and 3D design support: Review rack positions, aisles, pallet capacity and warehouse flow before installation.
- Professional installation support: Installation coordinated according to the approved warehouse design.
- End-to-end project support: Design, manufacturing, supply, delivery and installation within one coordinated workflow.
- Local presence in Victoria: Address: 34 Paramount Bvd, Cranbourne West VIC 3977, Australia.
Whether you are developing a new distribution centre or improving an existing logistics facility, Vinatech can design a logistics warehouse racking system around your pallet capacity, inventory flow and operational requirements.
Contact Vinatech Australia today to discuss your logistics warehouse and find the right racking solution for your operation.
