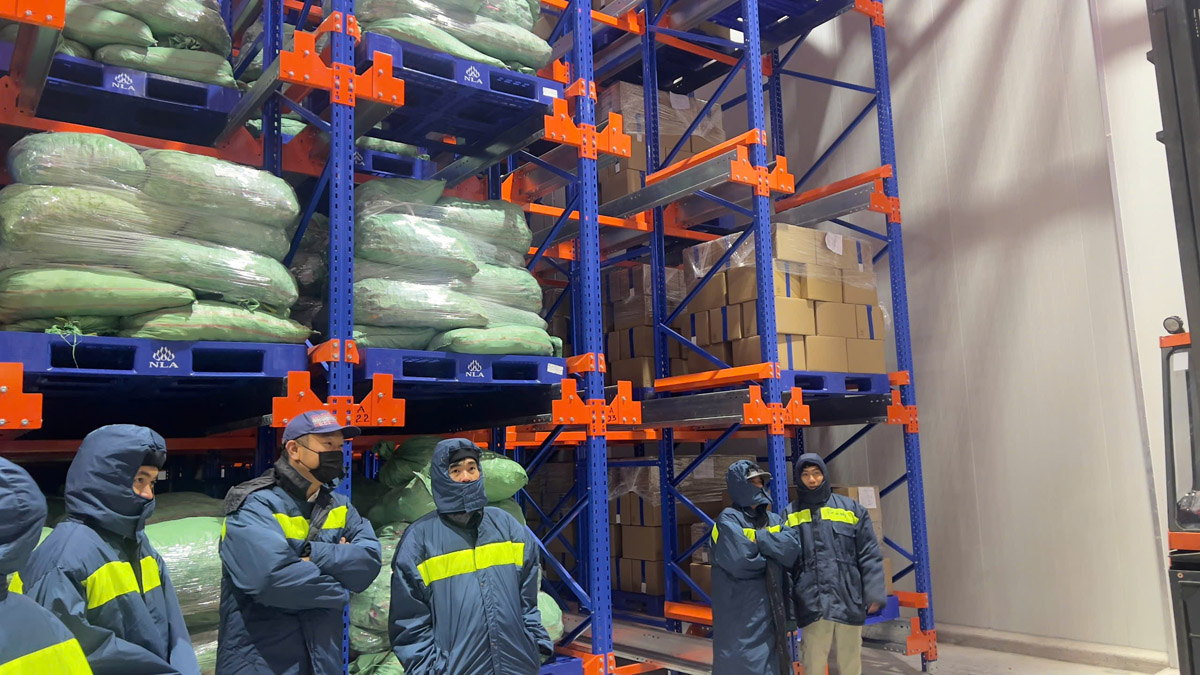

What is Coolroom Warehouse Racking?
Coolroom racking systems are specifically configured for cold rooms, refrigerated warehouses and freezer storage environments. They are commonly used by food manufacturers, cold-chain logistics operators, supermarkets, beverage distributors and pharmaceutical businesses that need to store palletised products under controlled temperatures.
This means a good coolroom racking design should achieve two objectives at the same time:
- Maximise pallet positions within the available refrigerated footprint
- Maintain practical access for forklifts, picking and stock rotation.
For many cold storage projects, the question is therefore not simply “How much racking can fit in the room?”.
A better question is: “How can the available refrigerated volume be converted into usable pallet capacity without compromising warehouse operations?”
What Are the Best Types of Coolroom Warehouse Racking?
The right coolroom warehouse racking configuration depends on SKU profile, pallet volume and size, stock rotation, picking frequency, forklift type, available space, building height and required storage capacity.

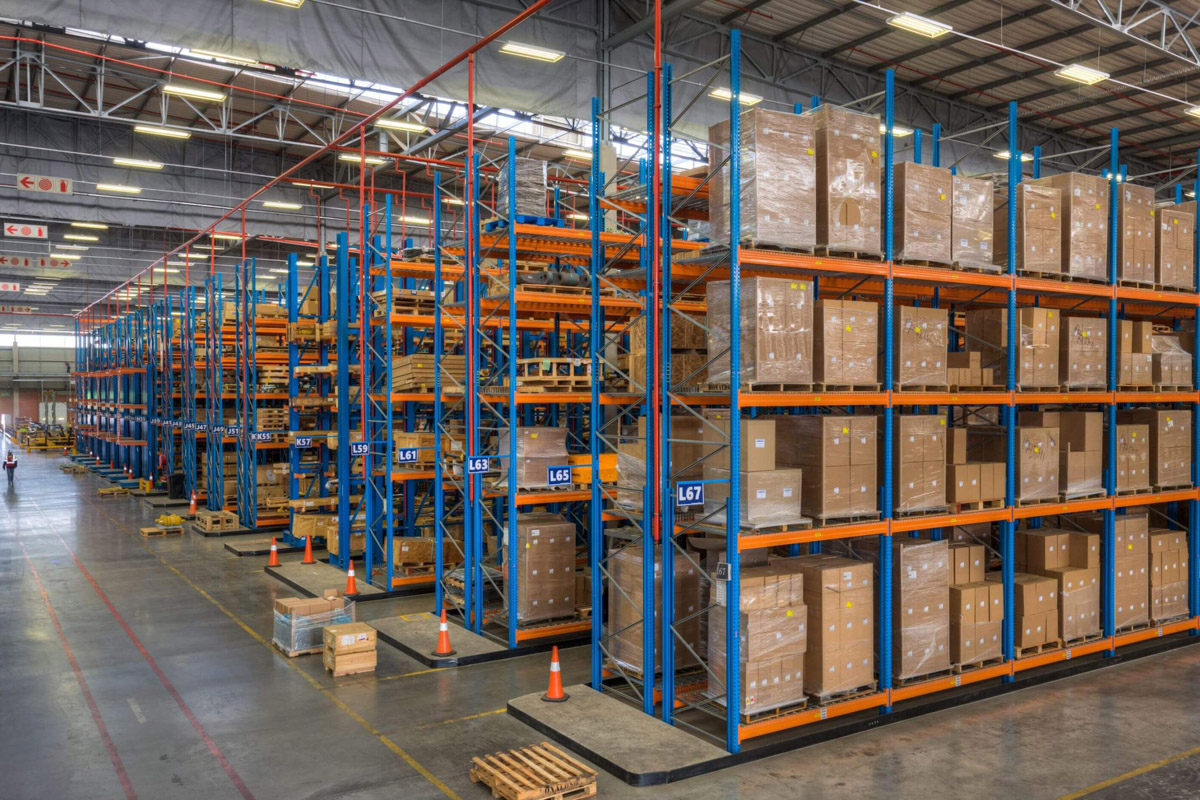

1. Selective Pallet Racking
Selective pallet racking is often the best coolroom racking option when direct access to every pallet is required. Each pallet position can be accessed individually without moving another pallet first.
Advantages
- 100% direct pallet access
- Simple inventory management
- Suitable for businesses with many SKUs
- Flexible beam level configuration
- Compatible with common warehouse forklifts
- Relatively straightforward stock rotation.
Selective racking can work particularly well for food distribution operations where numerous product lines need to be accessed frequently.

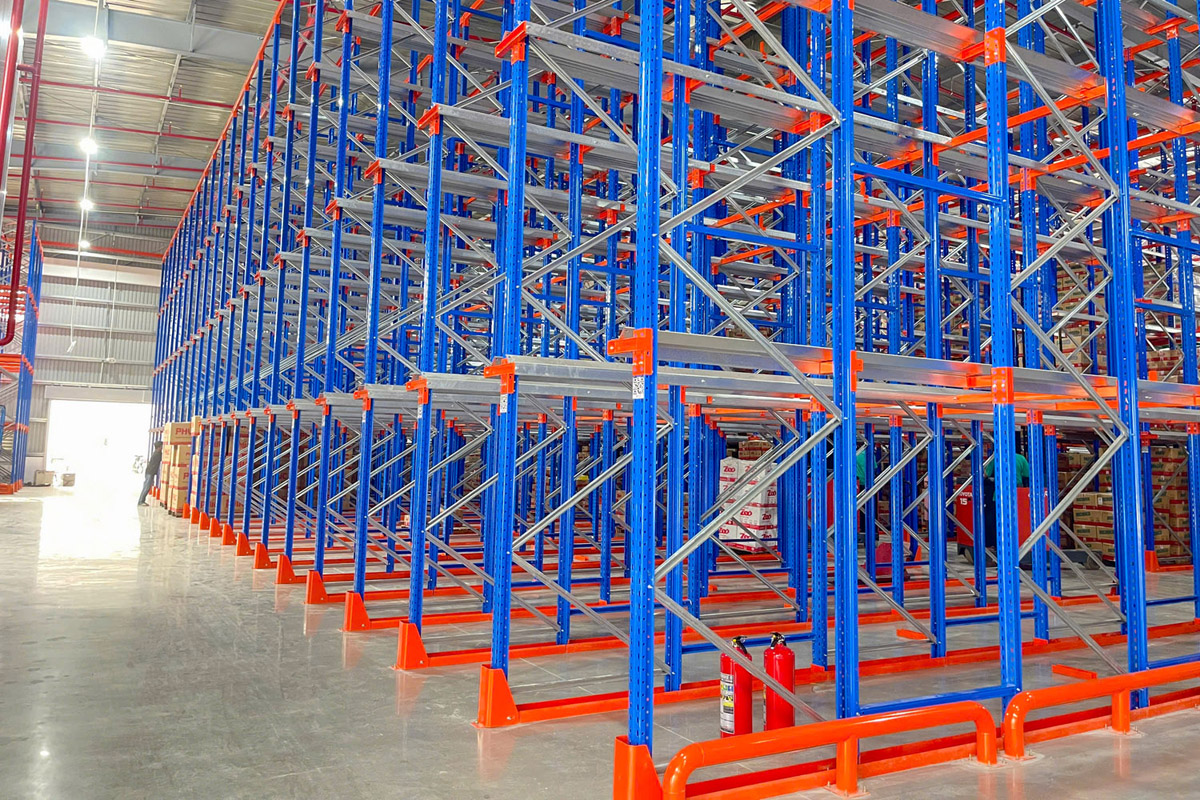

2. Drive-In Racking
Drive-in racking is one of the most effective coolroom pallet racking systems for maximising pallet storage density when large quantities of similar products are stored. Instead of creating an aisle between every rack row, forklifts enter directly into storage lanes to place and retrieve pallets.
This dramatically reduces the amount of refrigerated floor area required for aisles.
Best suited for:
- High volumes of pallets per SKU
- Frozen food
- Meat and seafood storage
- Beverage storage
- Bulk chilled products
- Seasonal inventory
- Facilities where maximum pallet capacity is important.
Drive-in systems typically operate with a LIFO (Last In, First Out) inventory principle when pallets are loaded and retrieved from the same side.

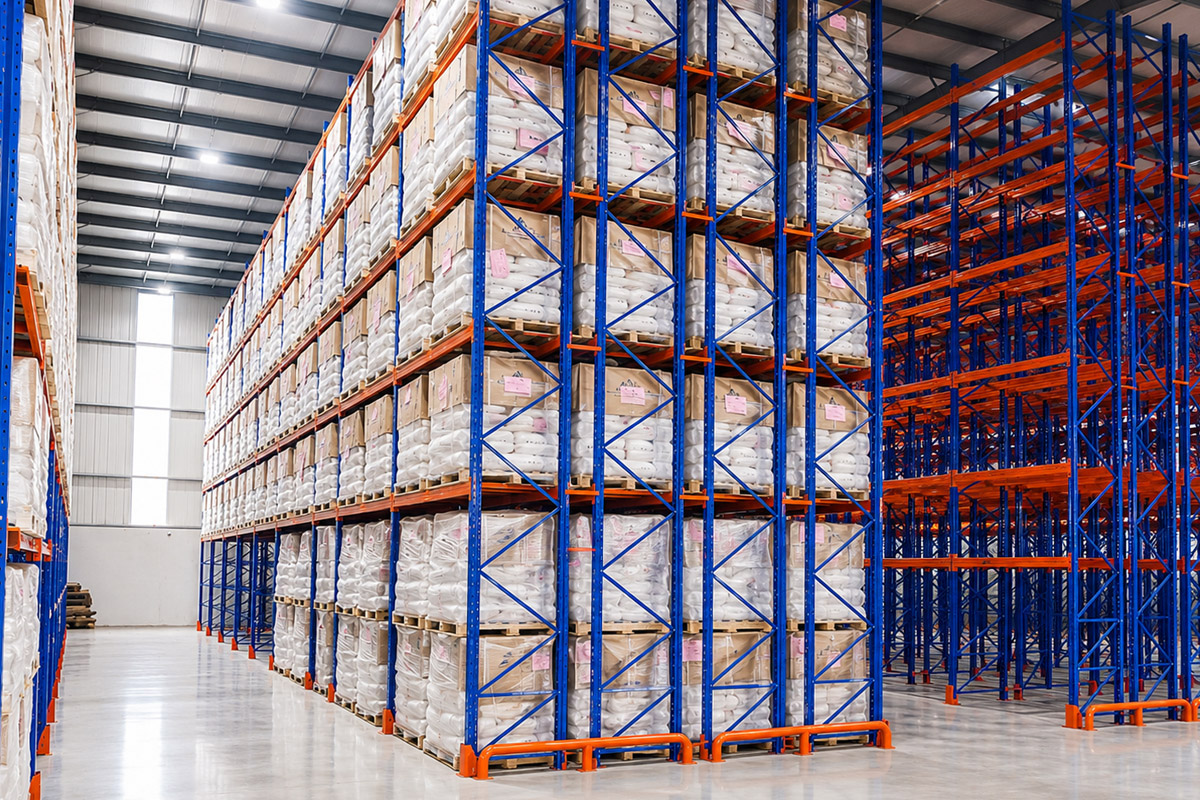

3. Double Deep Pallet Racking
Double deep racking stores pallets two positions deep instead of one. The system effectively combines two selective rack rows, reducing the number of forklift aisles required.
Advantages include:
- Ggreater storage density than selective racking
- Fewer aisles
- Good utilisation of refrigerated floor space
- Relatively high pallet capacity.
However, direct access to every pallet is reduced and a double deep reach truck or compatible material handling equipment is generally required.

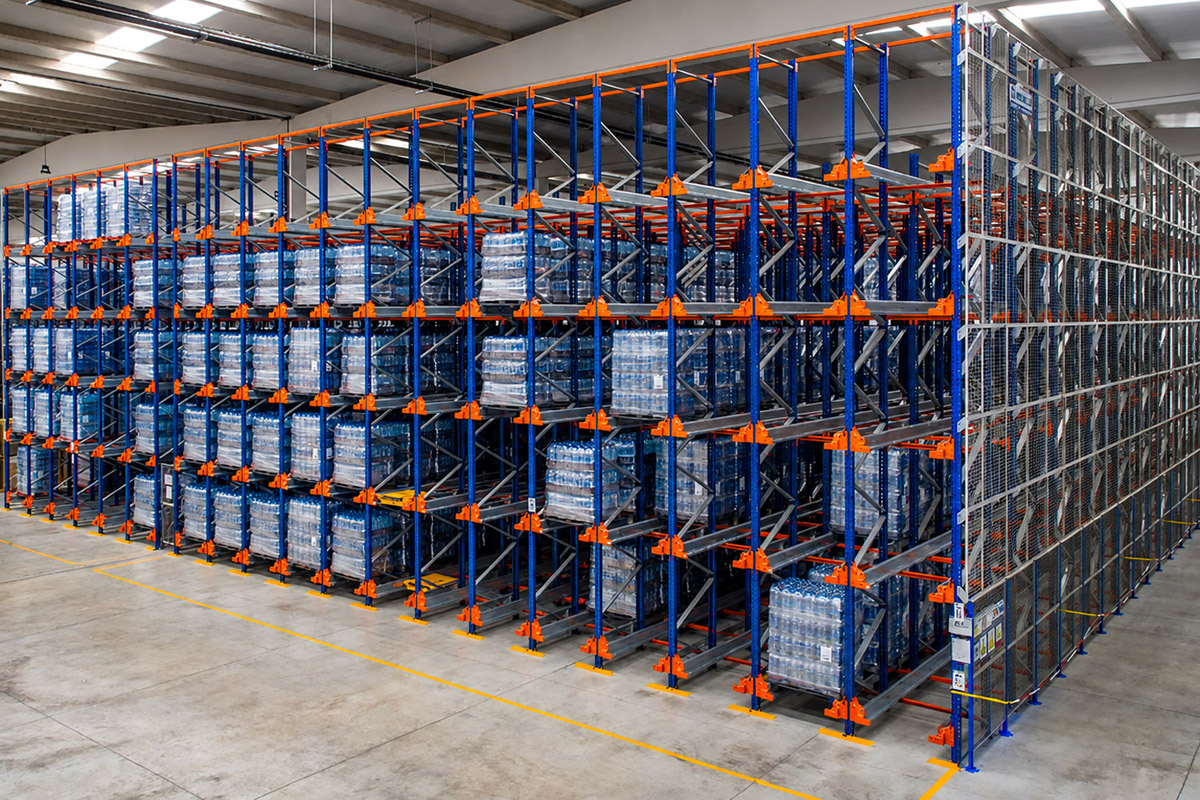

4. Shuttle Pallet Racking
Shuttle pallet racking is a high-density storage solution well suited to coolrooms and freezer warehouses with large volumes of the same or similar SKUs.
The system uses a powered shuttle to move pallets within deep storage lanes, reducing the need for forklifts to enter the rack structure. Key benefits include:
- Higher storage density
- Faster pallet handling
- Reduced forklift travel
- Better use of refrigerated space.
- Support both FIFO and LIFO operations.
It is particularly suitable for cold storage facilities handling high pallet volumes, repetitive stock movements and limited SKU ranges where space utilisation and throughput are priorities.
Key Factors When Designing Coolroom Racking
Before selecting a coolroom warehouse racking system, several operational and site-specific factors should be assessed to ensure the layout delivers the right balance of storage capacity, accessibility and handling efficiency.
- Pallet size & Load weight: Rack dimensions should be based on the actual pallets being stored rather than generic warehouse assumptions.
- Coolroom height: Taller racking can increase pallet capacity without expanding the refrigerated footprint.
- Forklift type & Aisle width: The appropriate aisle width should therefore be determined using the actual forklift specifications and operational requirements.
- SKU profile: Understanding the SKU profile should therefore come before selecting the storage system.

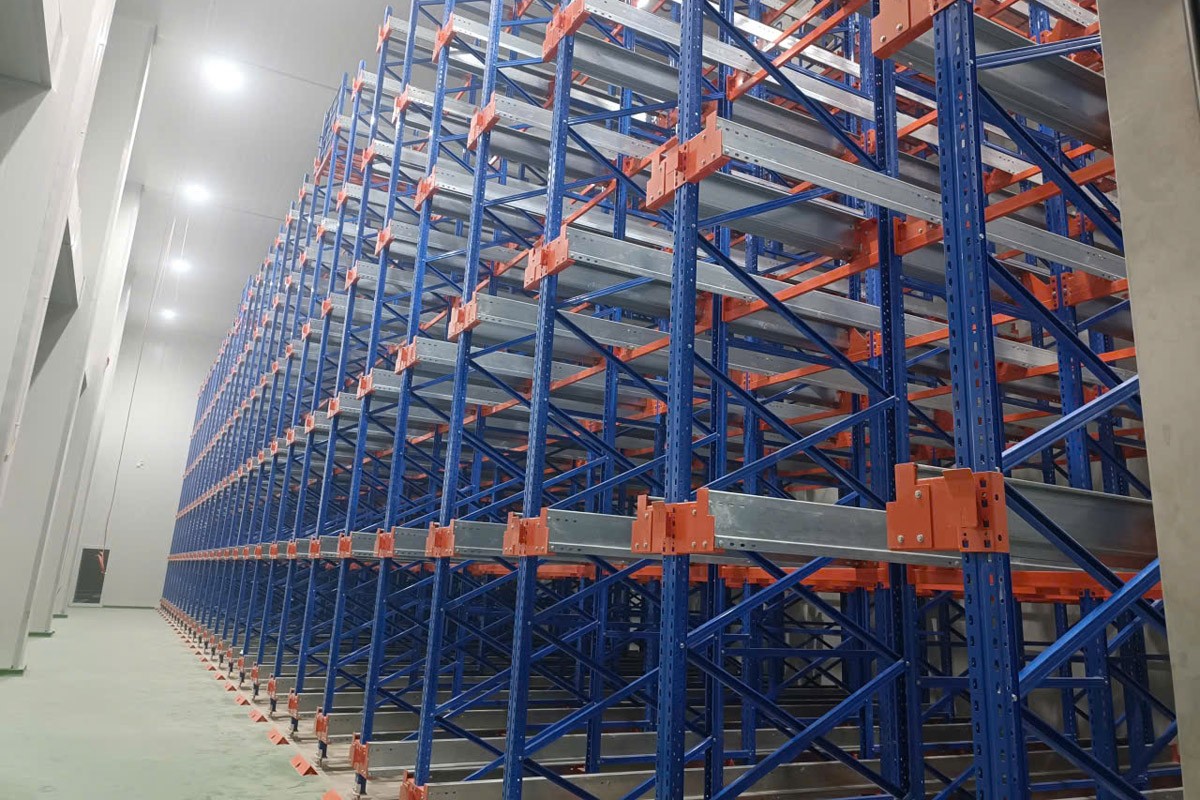

Corrosion Protection for Coolroom Warehouse Racking
Moisture and temperature changes can create a more demanding environment for steel storage equipment than a normal dry warehouse.
Depending on the operating conditions, coolroom racking may use protective treatments such as:
- Powder-coated steel
- Pre-galvanised components
- Hot-dip galvanised components
- Other corrosion-resistant finishes.
The appropriate specification should be determined based on the actual environment. For example, a chilled distribution warehouse operating above freezing may have different exposure conditions from a freezer facility with frequent temperature transitions. Corrosion protection should therefore be treated as an engineering consideration rather than simply a cosmetic finish.
Coolroom Warehouse Racking Solutions from Vinatech Australia
Vinatech Australia provides warehouse racking solutions designed around the actual storage and operational requirements of each facility.
Our approach combines warehouse planning, racking selection, manufacturing and installation support within one coordinated process.
- Factory-direct manufacturing: Greater control over racking specifications, product quality and project configuration.
- Custom warehouse design: Racking layouts developed around actual warehouse dimensions, pallet sizes, storage capacity and operational requirements.
- 2D and 3D layout support: Visualise rack rows, aisle widths, pallet positions and warehouse flow before installation.
- Multiple racking options: Selective, Drive-In, Double Deep, Shuttle and other pallet racking systems can be considered depending on SKU profile, stock rotation and required storage density.
- Professional installation support: Installation coordinated according to the approved warehouse layout and project requirements.
- Australian standards: Racking solutions are designed with reference to applicable requirements under AS 4084:2023.
- Local presence in Victoria: Located at 34 Paramount Bvd, Cranbourne West VIC 3977, supporting warehouse projects across Australia.
Choosing the right Coolroom Warehouse Racking system is essential for making the most of temperature-controlled storage space while keeping products accessible and warehouse operations efficient. The right configuration should consider coolroom dimensions, pallet sizes, load requirements, storage density, forklift access and the specific requirements of your operation.
Whether you are fitting out a new coolroom or improving an existing cold storage facility, Vinatech Australia can help develop a racking solution that balances pallet capacity, accessibility and operational efficiency.
